Ricoh SP 330DN Service Manual

Duplex
SM 7-43 M0C3/M0C4/M0C5/M0C6/M0C7
Detailed
Descriptions
7.11.2 MECHANISM

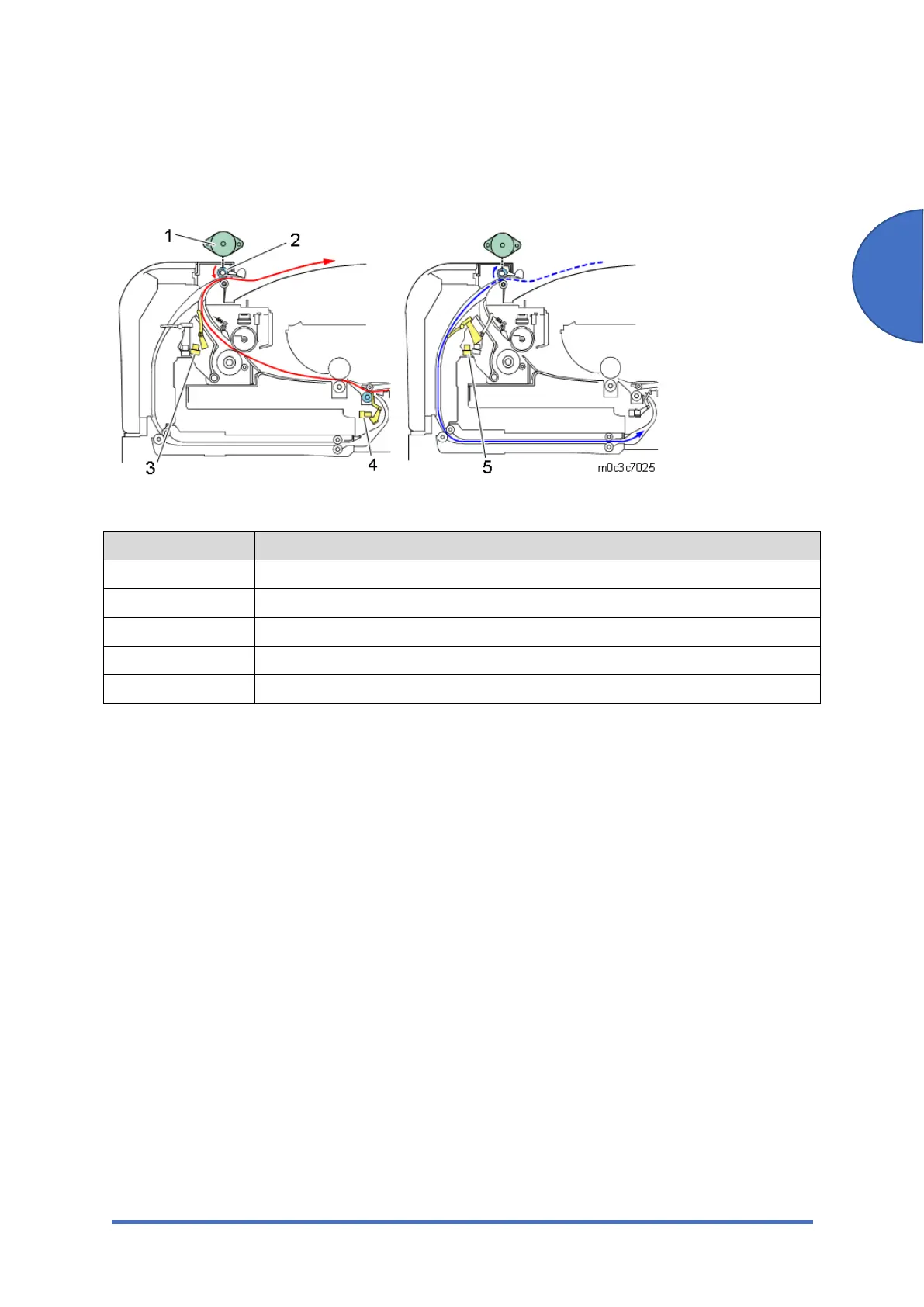

Duplex Printing Process
No. Item
1 Duplex motor
2 Paper exit roller
3 Paper exit sensor
4 Registration sensor
5 Duplex sensor
An independent drive motor in the duplex machine handles paper ejection and reversing. Paper
from the registration roller is sent to the paper exit roller. The paper exit roller reverses its
rotation after the trailing edge of the paper has passed the paper exit sensor (but the paper has
not fully exited into the output tray), and then sends the paper into the duplex paper path. When
the trailing edge of the paper passes the duplex sensor, the paper exit roller again reverses
rotation (reverting to its original direction), and ejects the paper into the output tray.
The duplex sensor is also used to detect paper jams.

Ricoh SP 330DN Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7.5 s
Print speed (black, normal quality, A4/US Letter)	32 ppm
Printing colors	Black, White
Maximum duty cycle	- pages per month
Number of print cartridges	1
Page description languages	PCL 5e, PCL 6, PostScript 3
Multi-Purpose tray	Yes
Total input capacity	550 sheets
Total output capacity	125 sheets
Paper tray media types	-
Paper tray media weight	52 - 162 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
USB connector	USB Type-B
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Sound pressure level (printing)	- dB
Market positioning	Home & office
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.72 W
Energy Star Typical Electricity Consumption (TEC)	0.41 kWh/week
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur
Server operating systems supported	Windows Server 2008, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Windows operating systems supported	Windows 10, Windows 7, Windows 8.1

Weight and Dimensions

Depth	392 mm
Width	370 mm
Height	262 mm
