Electrical Components
SM 4-79 M0C3/M0C4/M0C5/M0C6/M0C7
and

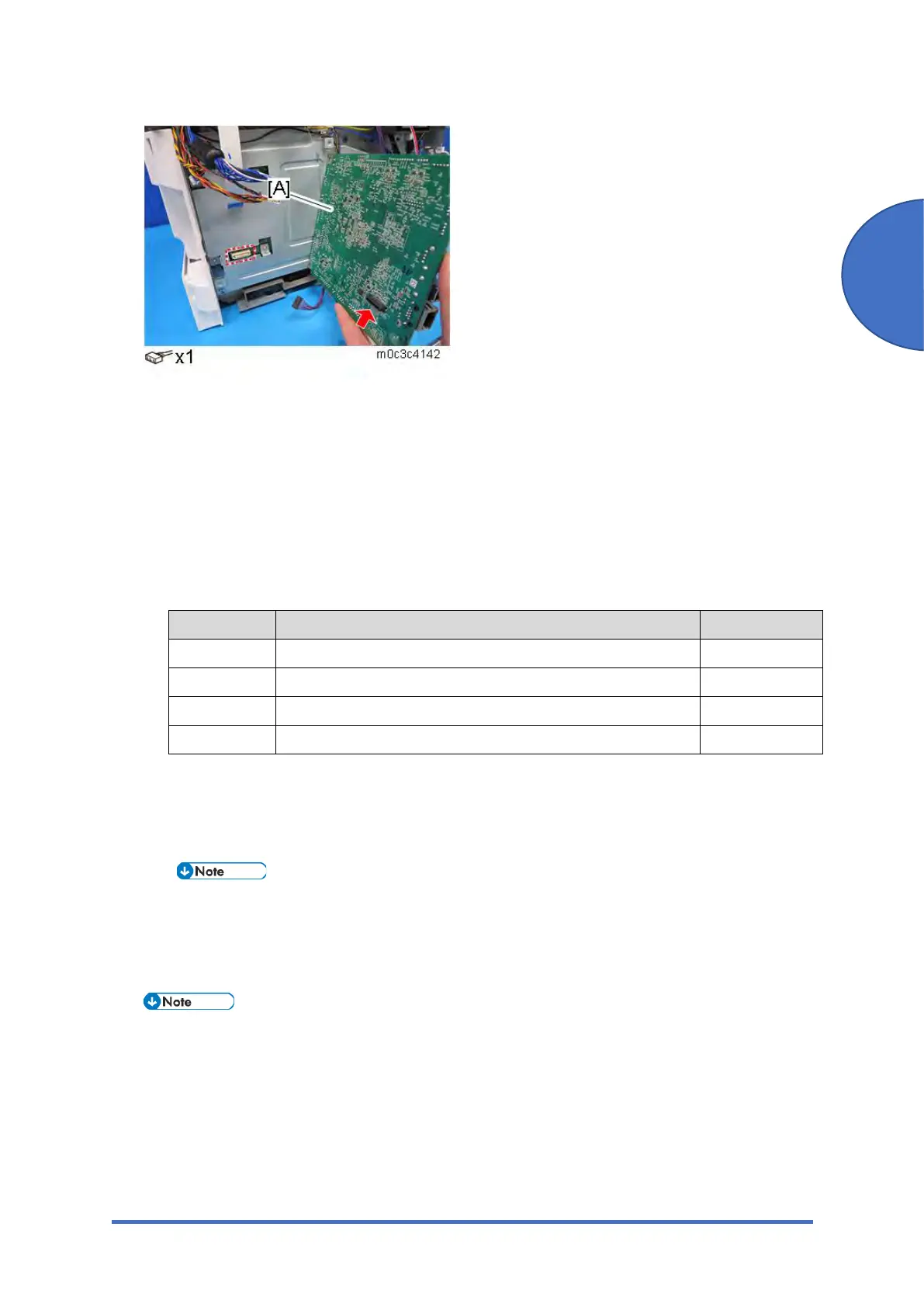

When Installing the New Main Board
After replacing the main board, the following settings must be made correctly.
1. Enter the "Maintenance Mode", and set the SPs below;
• Destination
Four-line LCD models: SP menu > [Engine Maintenance] > [Destination]
Touch panel models: SP menu > [Engine Service Setting] > [Destination]
Destination Machine Code Setting Value
NA M0C3-17, M0C6-17, M0C4-17, M0C5-17, M0C7-17 1
EU/AA M0C3-27, M0C6-27, M0C4-27, M0C5-27, M0C7-27 2
CHN M0C3-21, M0C4-21, M0C5-21 4
TWN M0C3-19, M0C5-19 5
• Serial No.
Four-line LCD models: SP menu > [Engine Maintenance] > [Serial No.]
Touch panel models: SP menu > [Engine Service Setting] > [Serial No.]
Ask your supervisor about how to enter the "Maintenance Mode".
2. Do the registration adjustment (Registration Adjustment)
3. For @Remote models, make sure that the manual call can be performed.
If the serial number is not input correctly, @Remote service cannot be connected.
