ADF/ARDF Unit (Only MF Models)
M0C3/M0C4/M0C5/M0C6/M0C7 4-30 SM

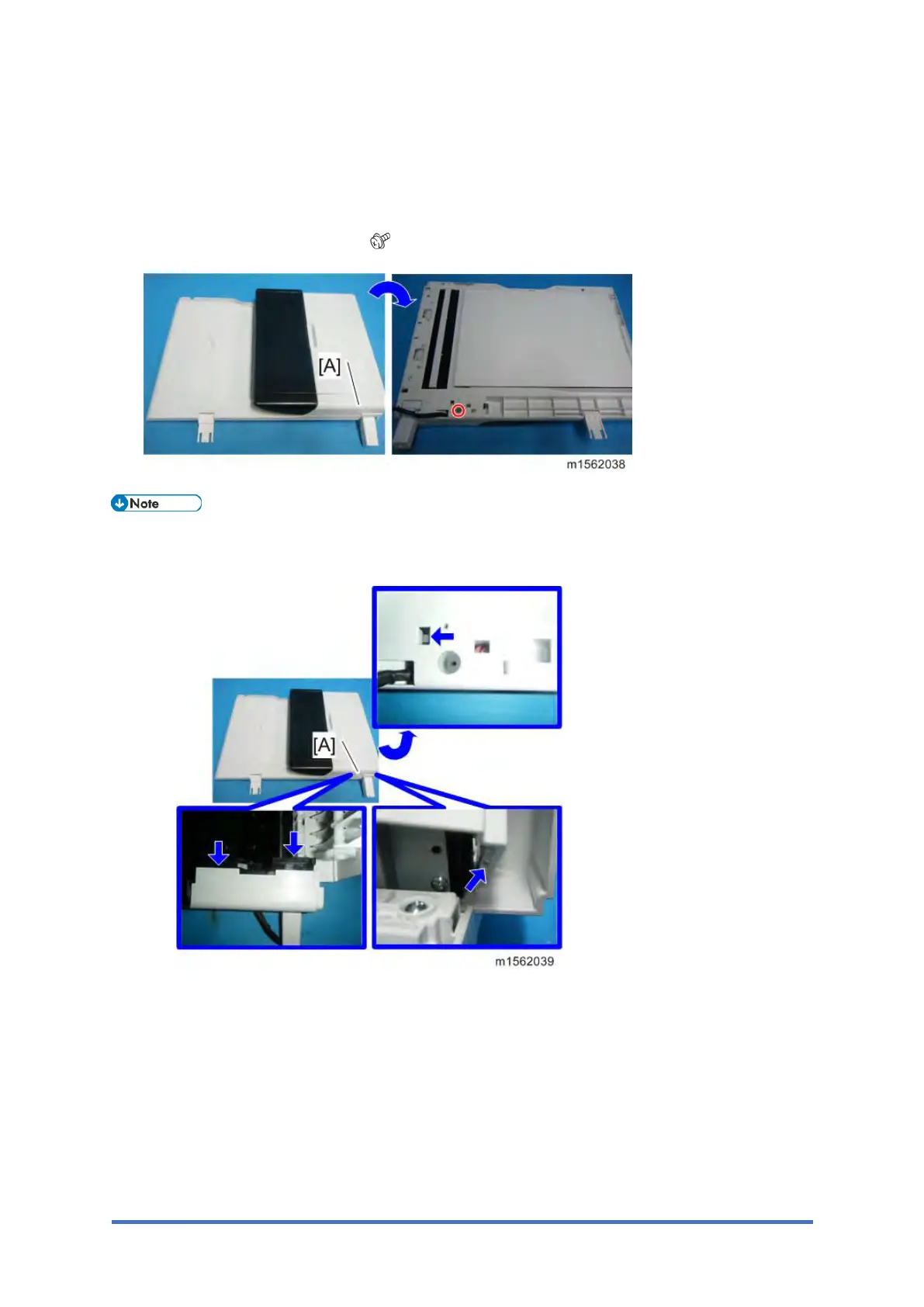

ADF Rear Cover
1. Remove the ADF unit (ADF Unit).
2. Turn the ADF unit over.
3. Remove the ADF rear cover [A] (
x 1).
• There are many hooks and tabs inside the ADF rear cover [A]. Before removing the
ADF rear cover, see the photos below.
To Next Page
