Paper Feed
M0C3/M0C4/M0C5/M0C6/M0C7 4-50 SM

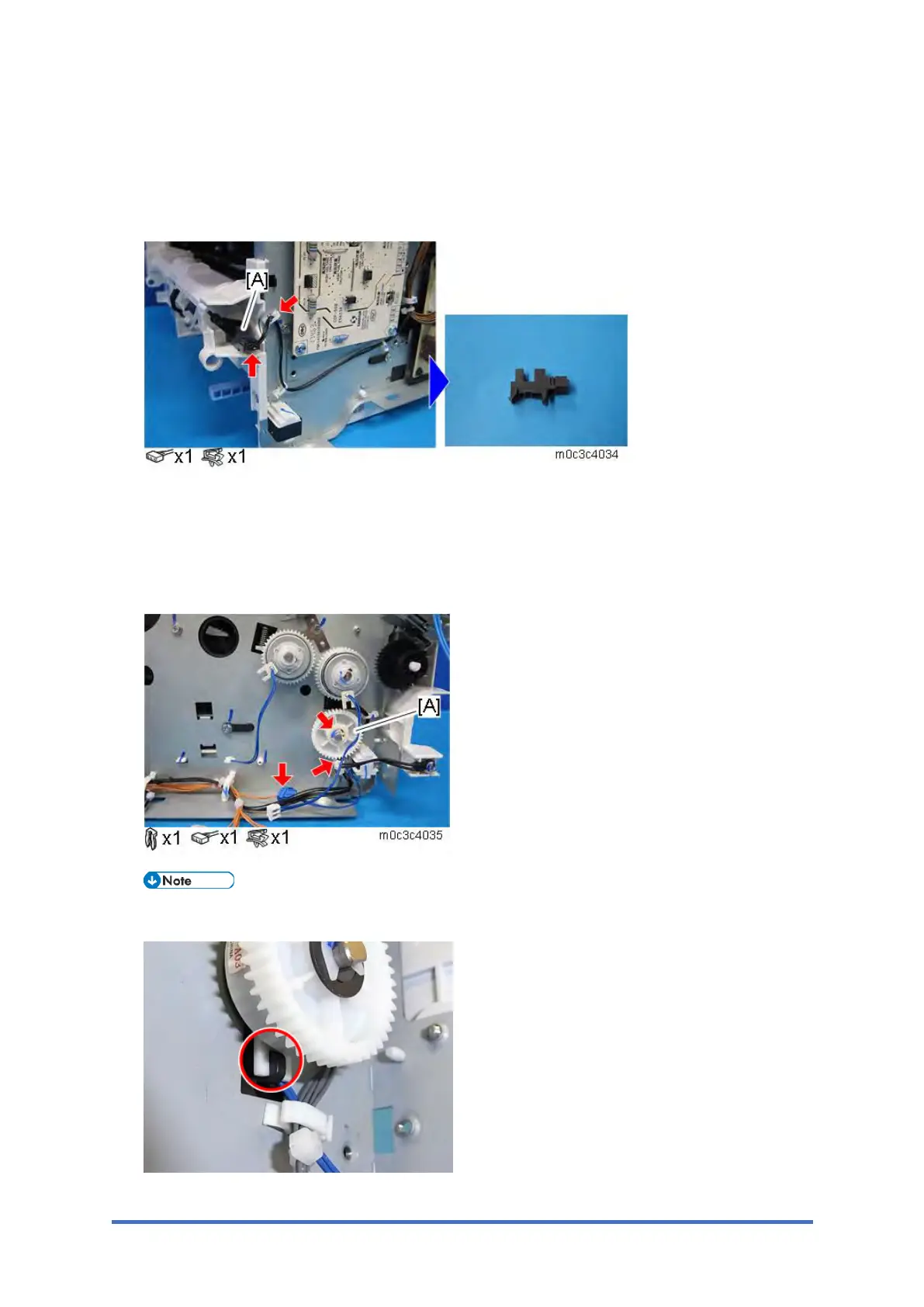

4.7.7 BY-PASS FEED SENSOR
1. Remove the right cover (Printer models: Right Cover, MF models: Right Cover).
2. Remove the by-pass feed sensor [A].
4.7.8 PAPER FEED CLUTCH
1. Remove the drive unit (Drive Unit).
2. Remove the paper feed clutch [A].
Fit the stopper of the paper feed clutch over the tab on the machine.
