Ricoh SP 330DN - ARDF Pick-Up Roller, ARDF Feed Roller

ADF/ARDF Unit (Only MF Models)
SM 4-35 M0C3/M0C4/M0C5/M0C6/M0C7
Replacement
and
Adjustment
ARDF Pick-Up Roller, ARDF Feed Roller

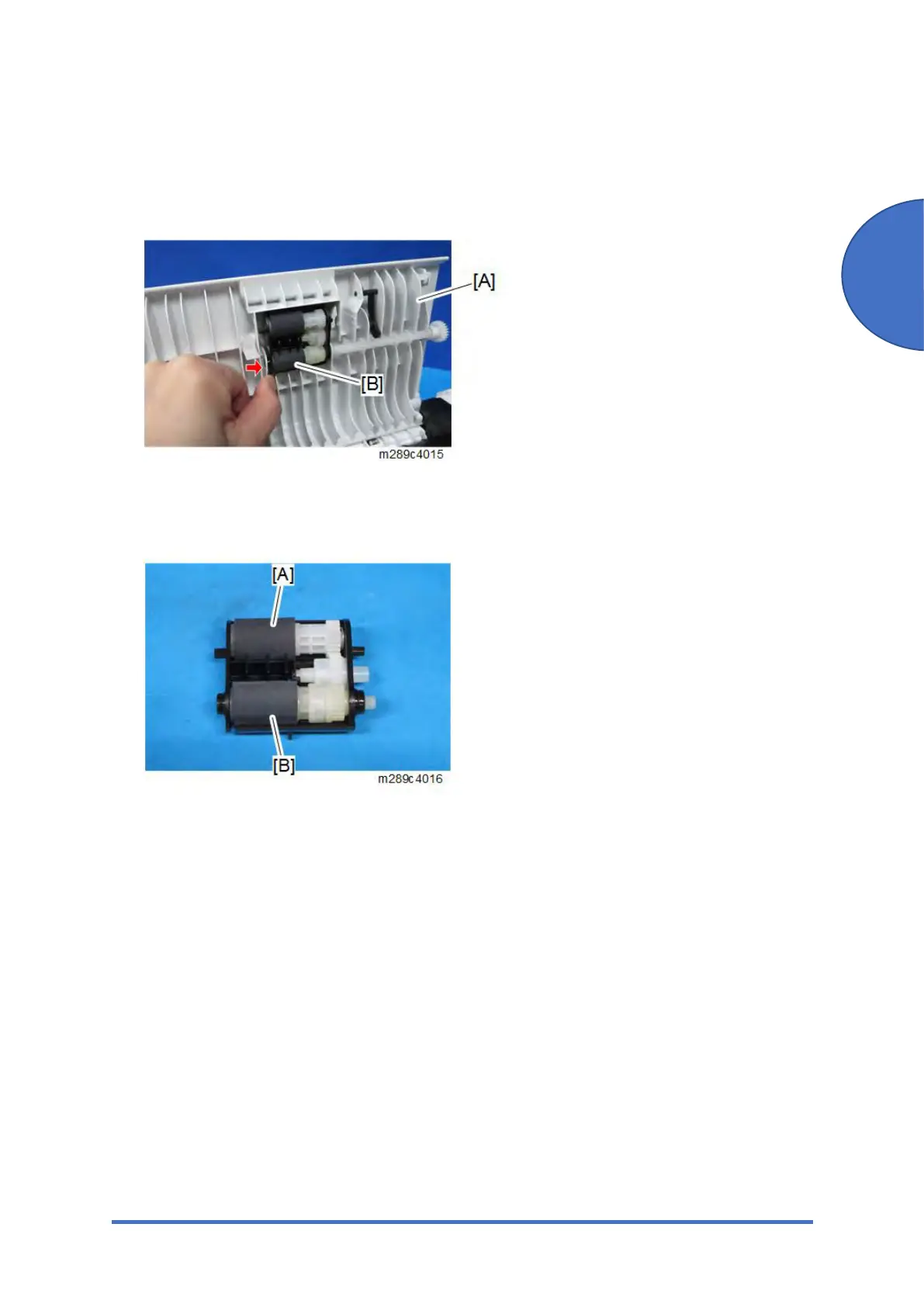

1. Open the ARDF top cover [A].
2. Remove the ARDF feed unit [B] (tab).
3. Remove the ARDF pick-up roller [A].
4. Remove the ARDF feed roller [B].
