Drive
SM 4-73 M0C3/M0C4/M0C5/M0C6/M0C7
Replacement
and
Adjustment

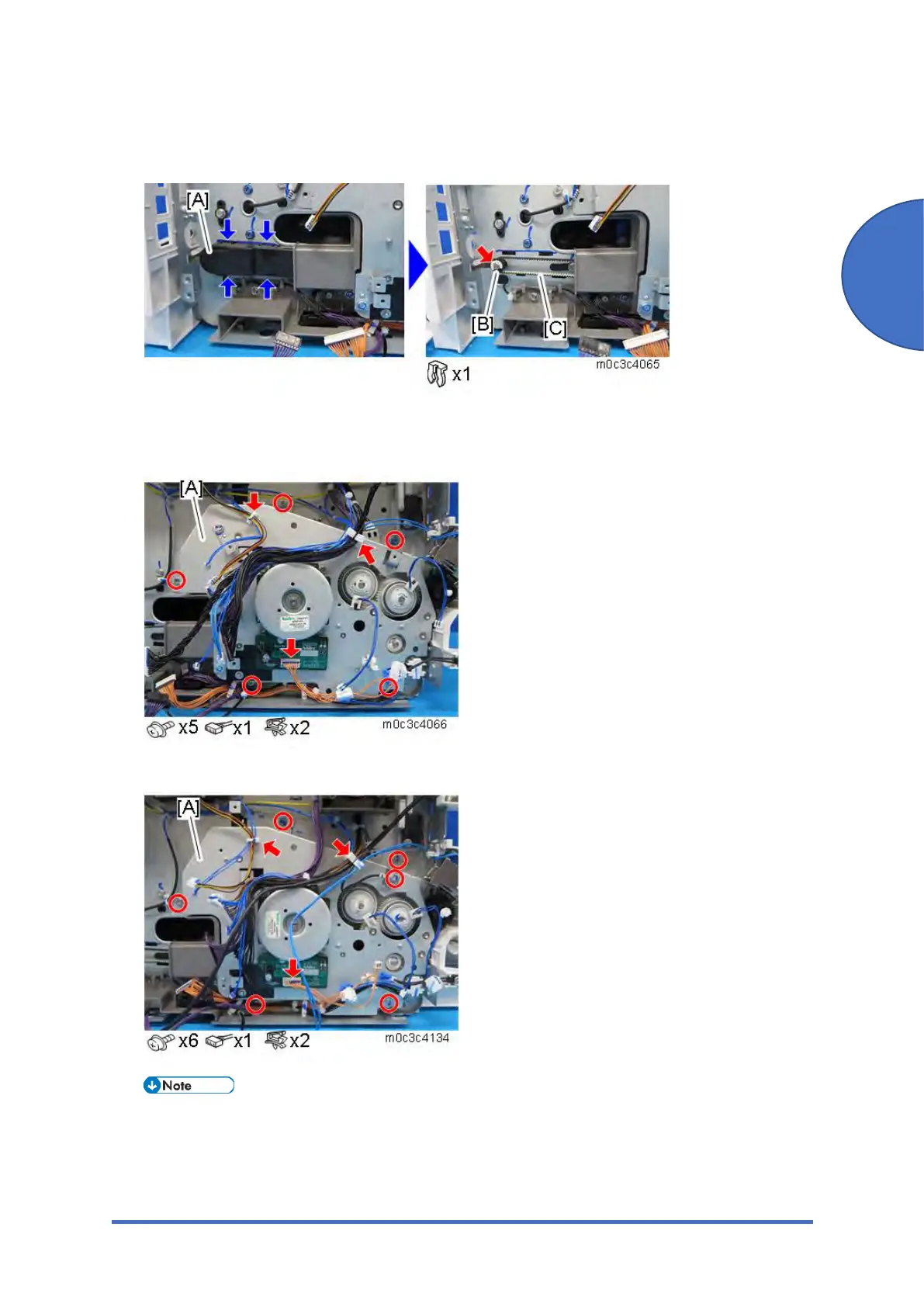

5. Release the four hooks, and remove the timing belt cover [A].
6. Remove the gear [B] and loosen the timing belt [C].
7. Remove the drive unit [A].
Printer models:
MF models:
When re-installing the harness guide plate, first set the stopper of the relay clutch [A] over
the projection.
