Exterior Covers (Printer Models)
SM 4-5 M0C3/M0C4/M0C5/M0C6/M0C7
Replacement
and
Adjustment

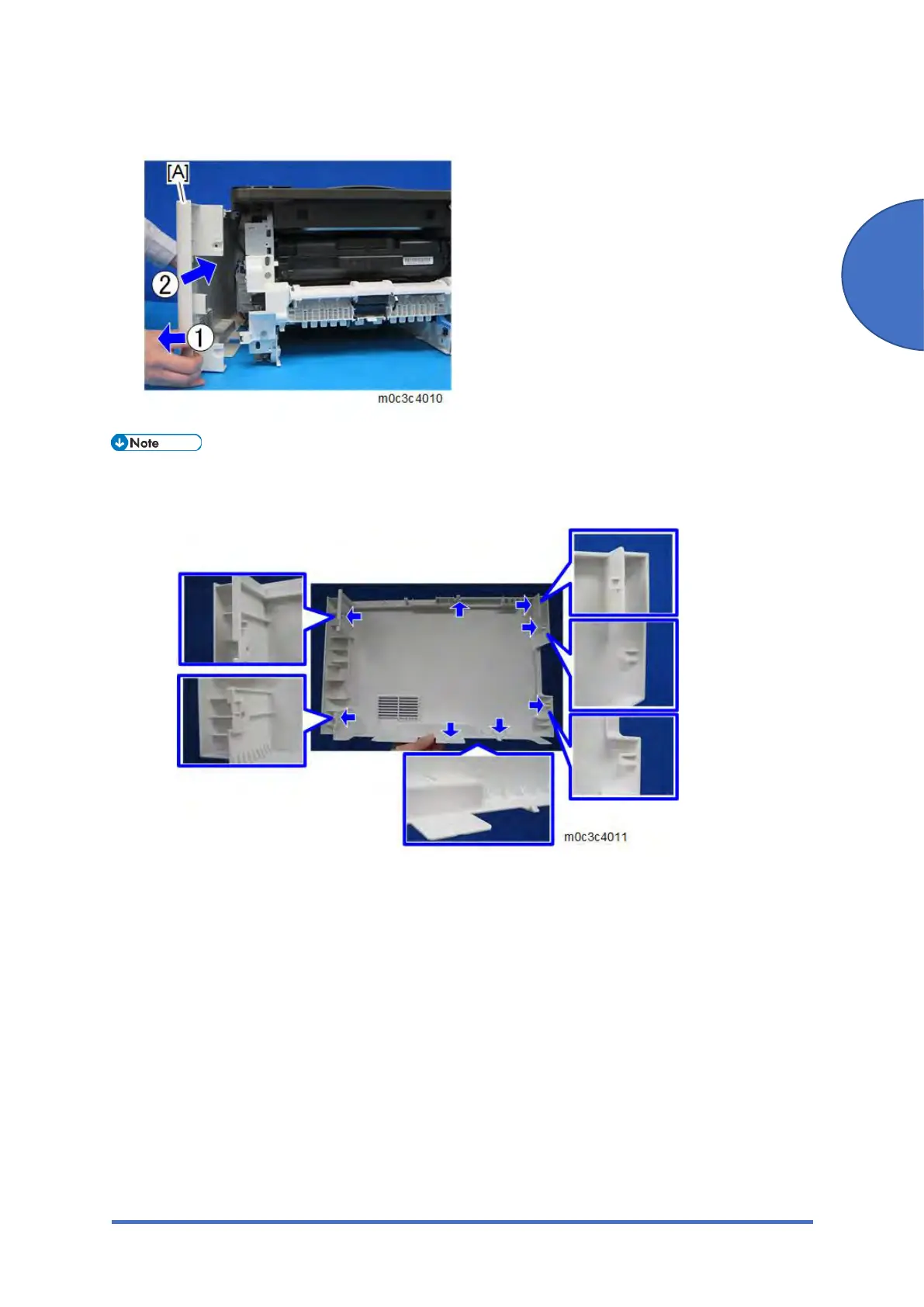

6. Open the left cover [A] about 30 degrees, and then slide it backward to remove it.
• There are many hooks and tabs inside the left cover. Before removing the left cover,
see the photos below.
