Exterior Covers (MF Models)
SM 4-17 M0C3/M0C4/M0C5/M0C6/M0C7
Replacement
and
Adjustment

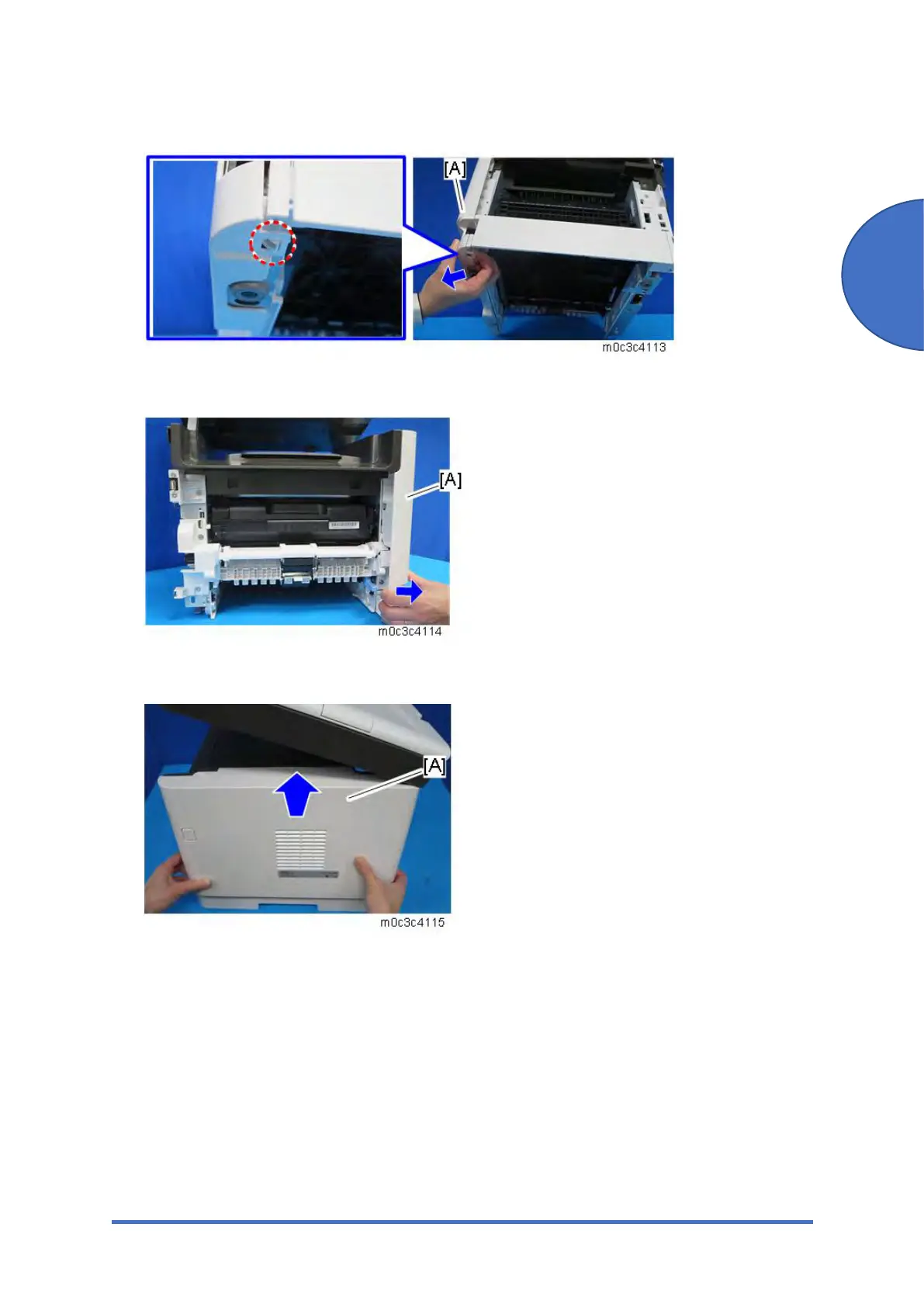

5. Lift the machine, and release the hook of the right cover [A].
6. Pull the front bottom part of the right cover [A] to release the hook.
7. Remove the right cover [A].
