4.Replacement and Adjustment
52

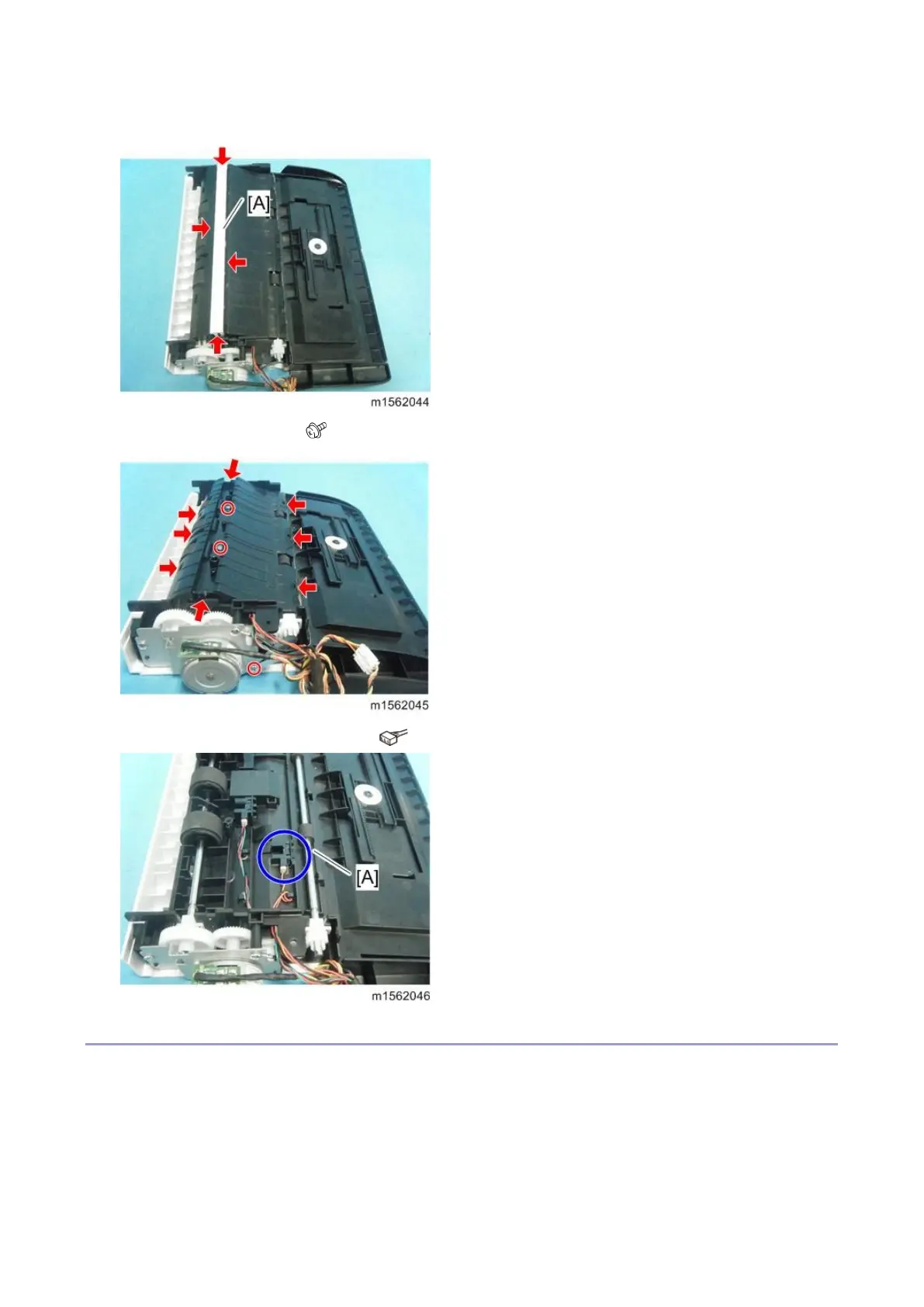

3. Remove the pressure plate [A] (4 hooks, 2 springs).
4. Remove the lower guide ( x 3, ground plate, 6 hooks, 2 tabs).
5. Remove the original set sensor [A] ( x 1).
ADF Feed Sensor
1. Remove the ADF drive unit (ADF Motor).
2. Remove the lower guide (Original Set Sensor).
