4.Replacement and Adjustment
55

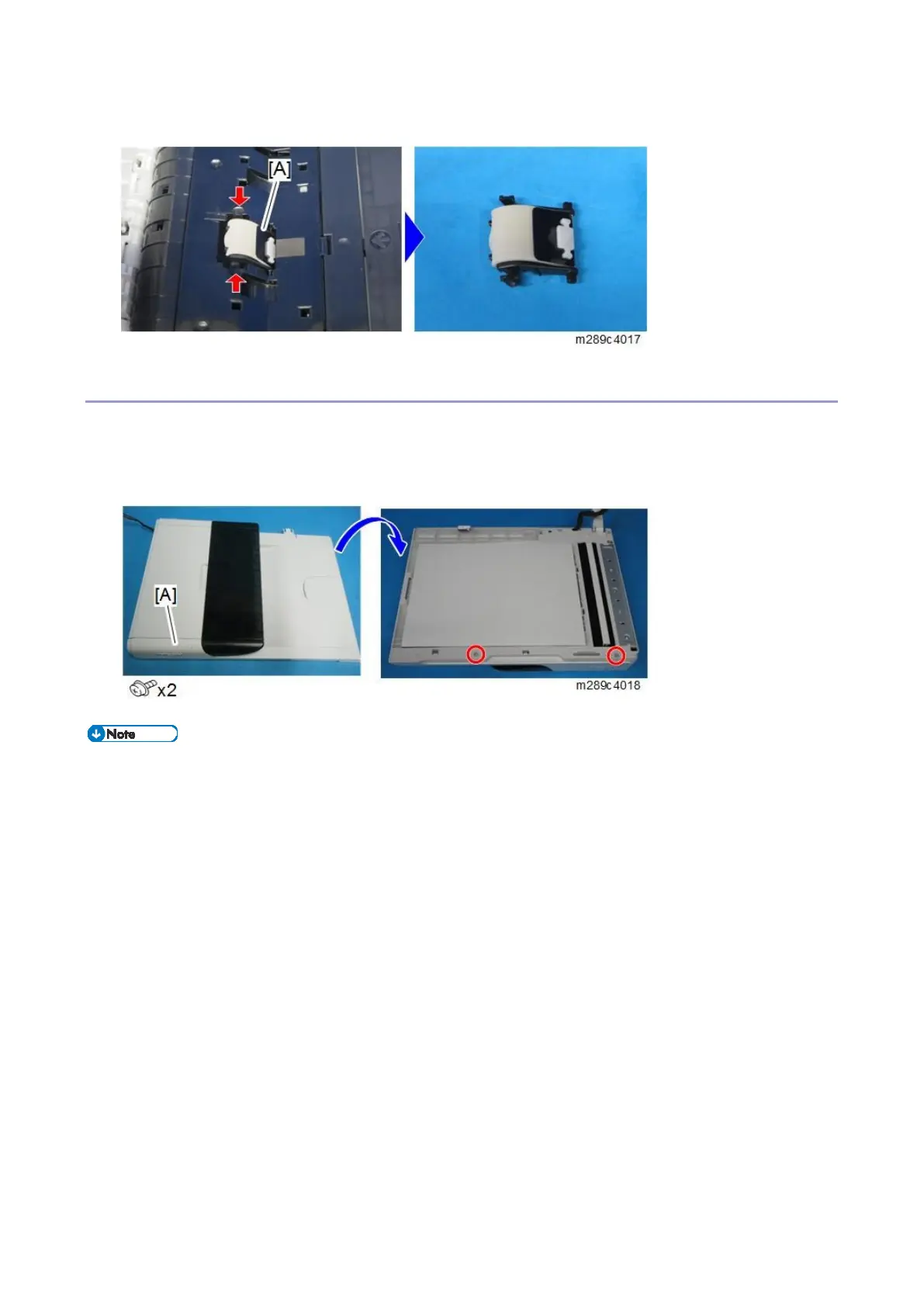

2. Remove the ARDF separation pad [A] (2 hooks, spring x 1).
ARDF Front Cover
1. Remove the ARDF unit (ARDF Unit).
2. Turn the ARDF unit over.
3. Remove the ARDF front cover [A].
 There are many hooks and tabs inside the ARDF front cover. Before removing the ARDF front
