Ricoh SP 3710DN - Page 70

4.Replacement and Adjustment
58

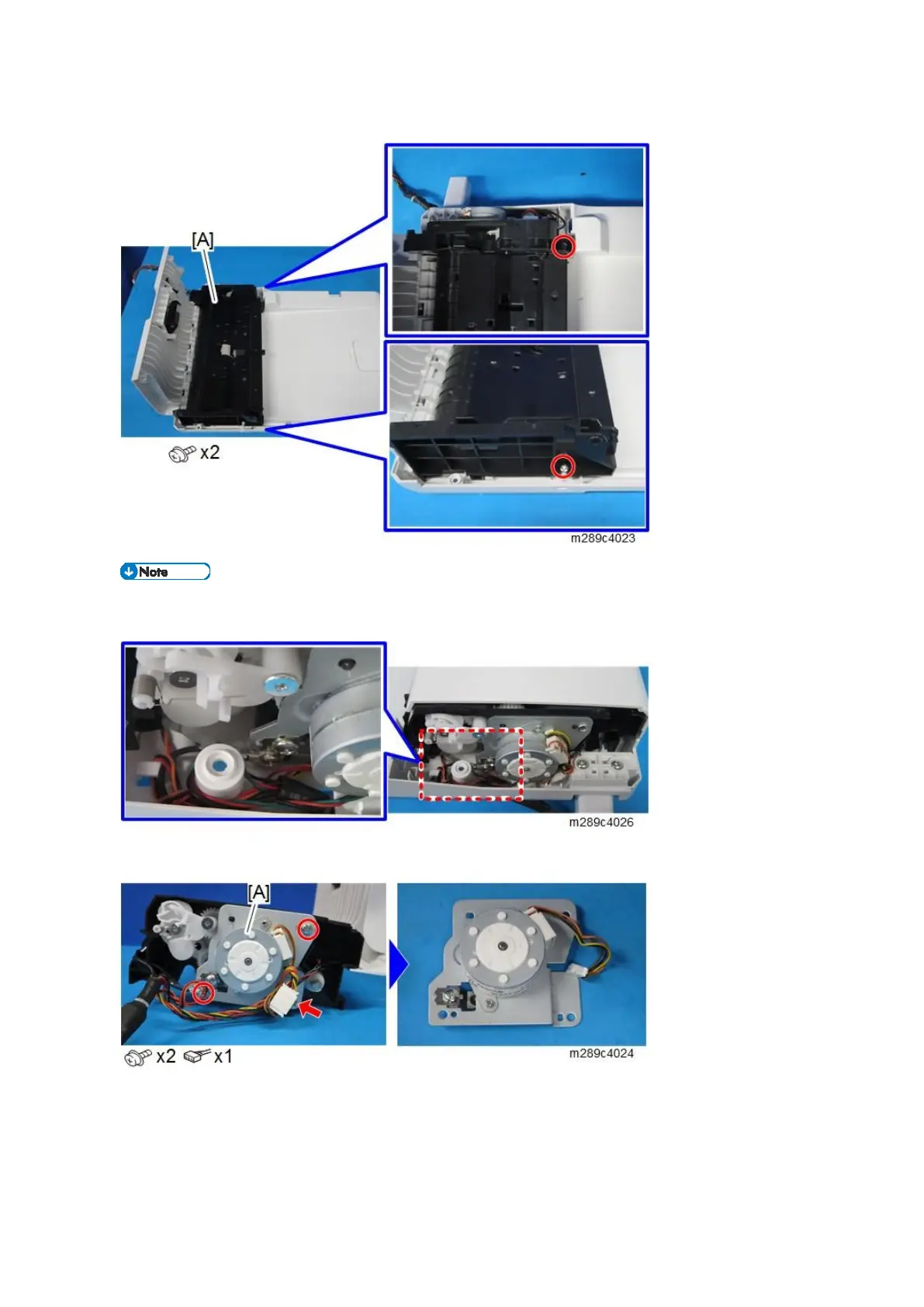

5. Remove the ARDF drive unit [A].
When removing/attaching the ARDF drive unit, make sure to route the harnesses carefully so that
they will not be damaged.
6. Remove the ARDF motor assembly [A].
