4.Replacement and
Ad
justment
57

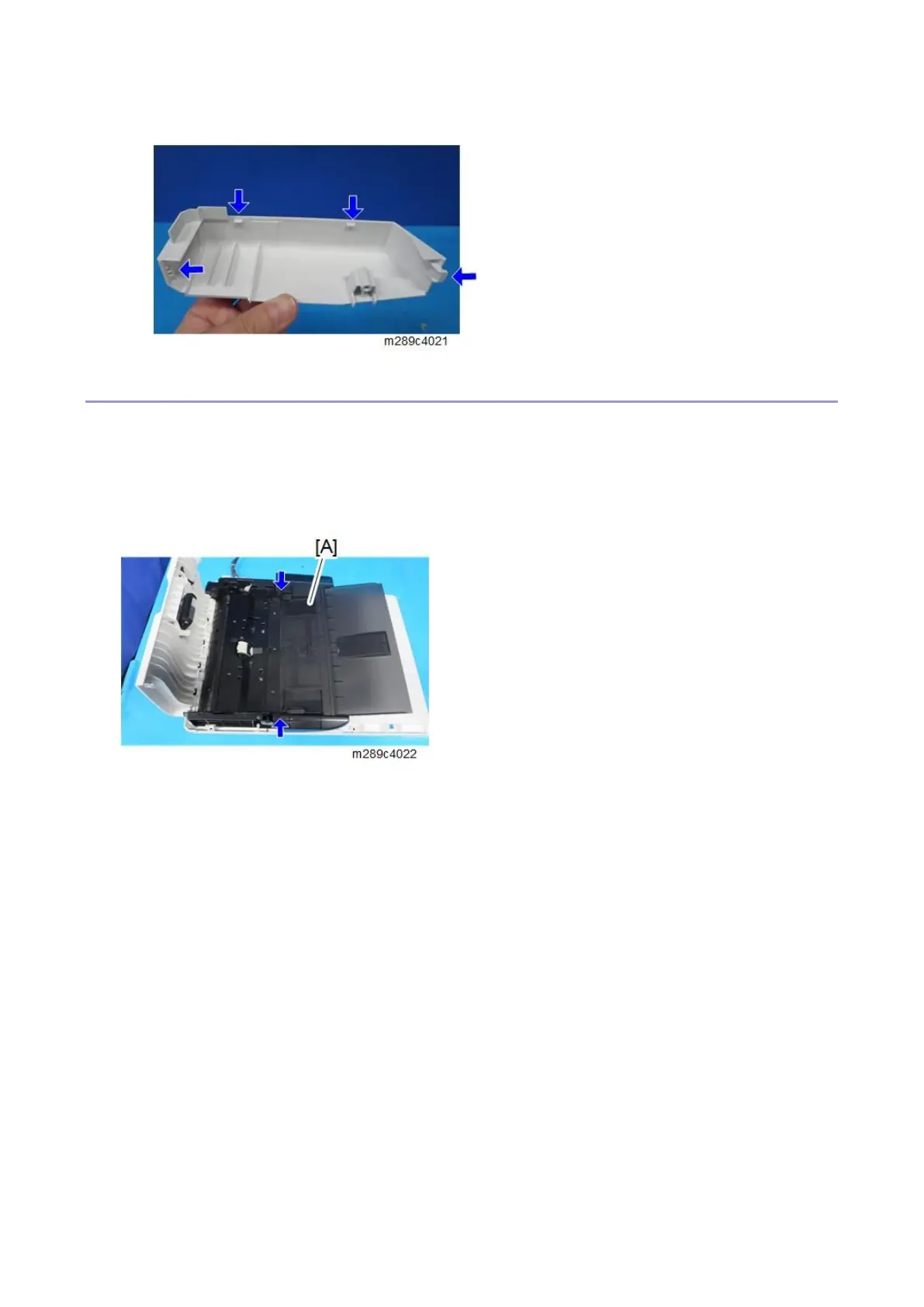

cover
, see the photos below
.
ARDF Motor
1.
Remove the
ARDF unit (
ARDF Unit
).
2.
Remove the
ARDF front cover (
ARDF Front Cover
).
3.
Remove the
ARDF rear cover (
ARDF Rear Cover
).
4.
Remove the original tray [A].
