RIGOL Chapter 1 Programming Overview
1-6 DL3000 Programming Guide
SCPI Status Register
All the SCPI commands to the instrument perform the status register operation in the same way. The status
system records the instrument status into the following three registers: questionable status register,
standard event status register, and status byte register. The status byte register is used to record advanced
summary information, which is reported by other registers. The SCPI status system of the DL3000 is shown
in Figure 1-2.

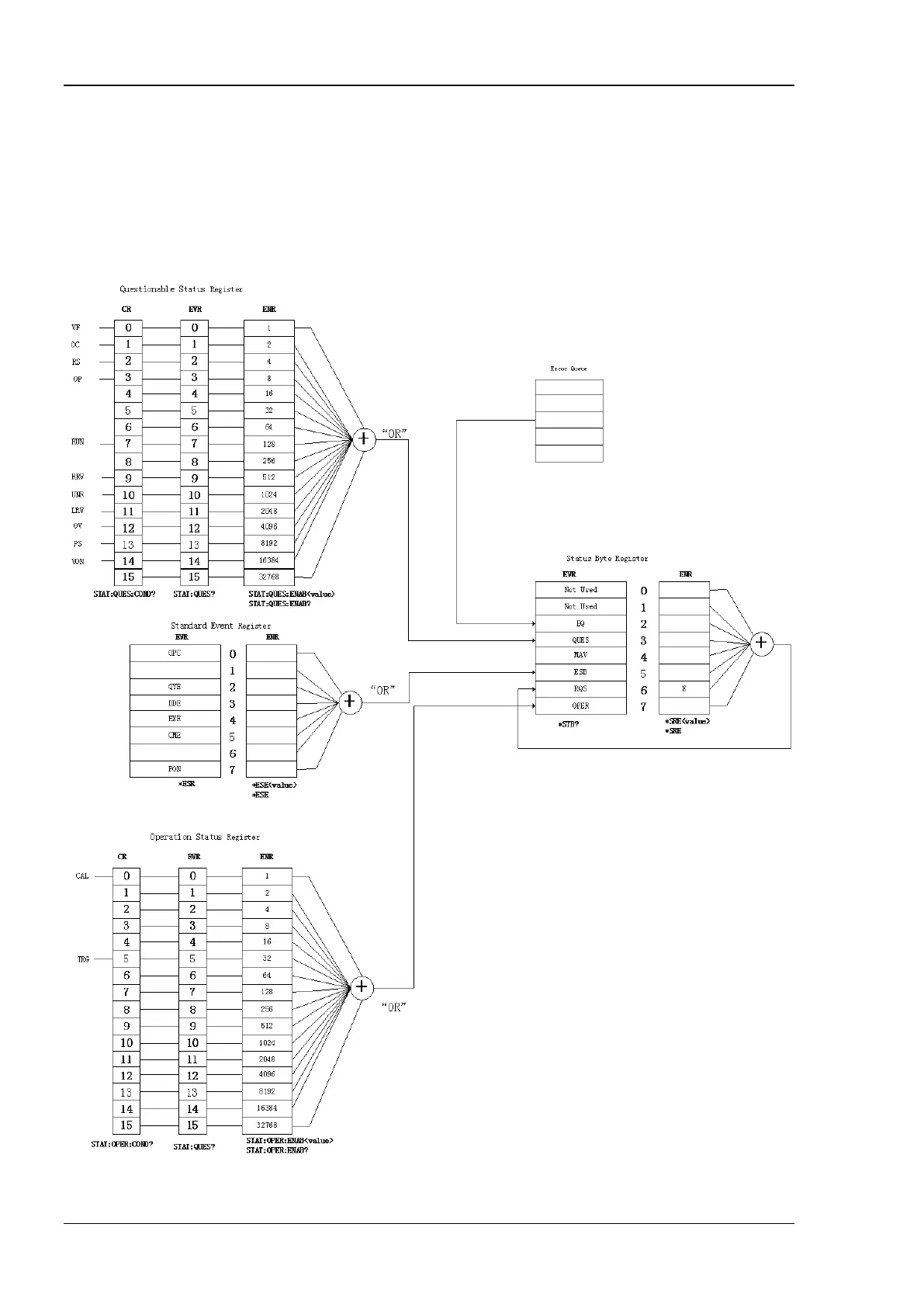

Figure 1-2 SCPI Status System of the DL3000 Series
