Rigol DL3000 Programming Guide

RIGOL Chapter 4 Programming Instances
4-12 DL3000 Programming Guide
Visual C++ Programming Instance
Program used in this example: Microsoft Visual C++6.0
Function realized in this example: sending the *IDN? command and reading the instrument
information.
1. Run Microsoft Visual C++6.0. Create a MFC project based on a dialog box.

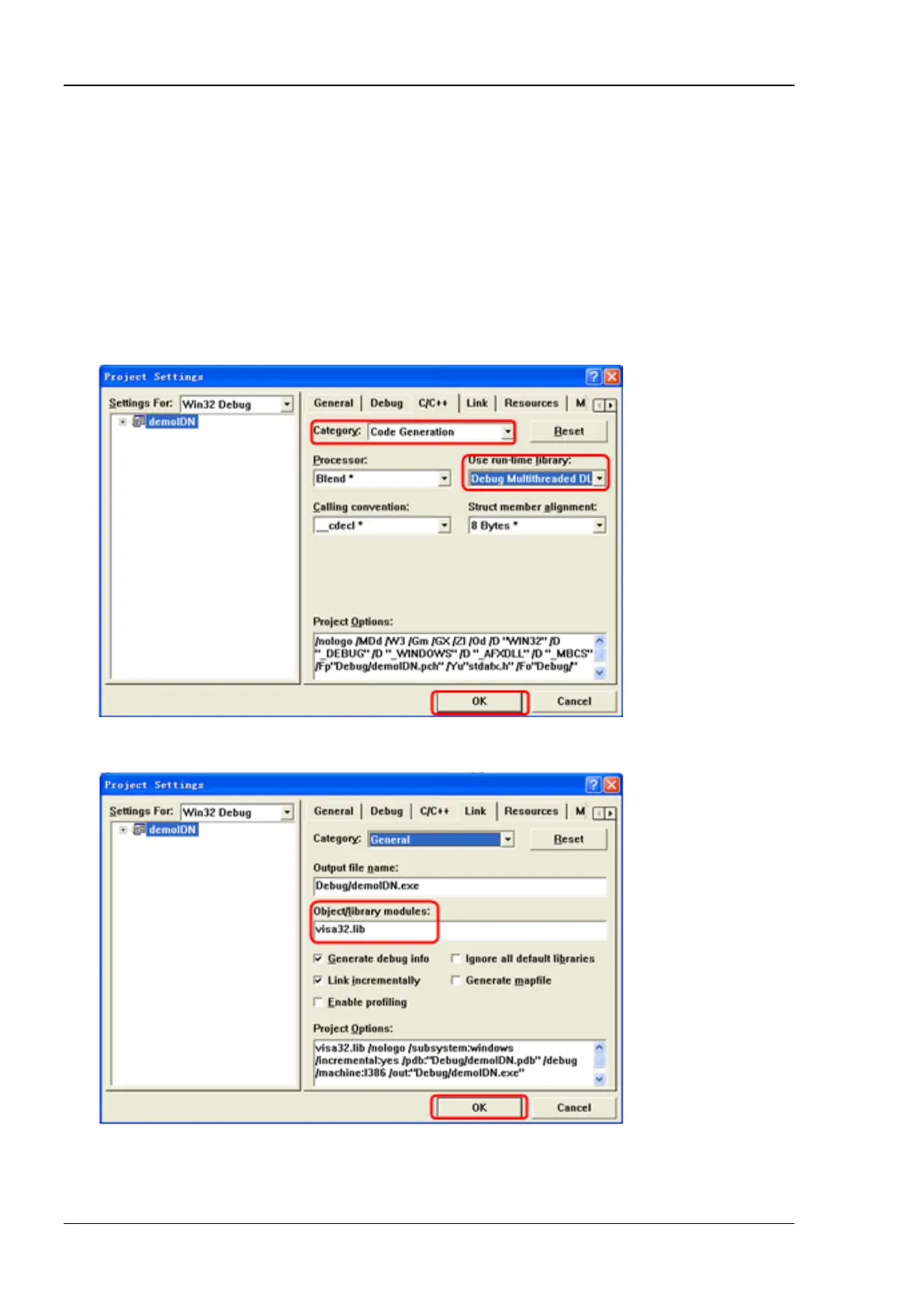

2. Click ProjectSettings to open the "Project Settings" dialog box. In the dialog box, click the
"C/C++" tab, select Code Generation from the drop-down list under Category. Choose Debug
Multithreaded DLL from the drop-down list under Use run-time library. Click OK to close the
dialog box.
3. Click ProjectSettings to open the "Project Settings" dialog box. In the dialog box, click the "Link"
tab, add "visa32.lib" under Object/library modules, then click OK to close the dialog box.
4. Click ToolsOptions to open the "Options" dialog box. Then, click the "Directories" tab.
