RIGOL
User’s Guide for DM3058

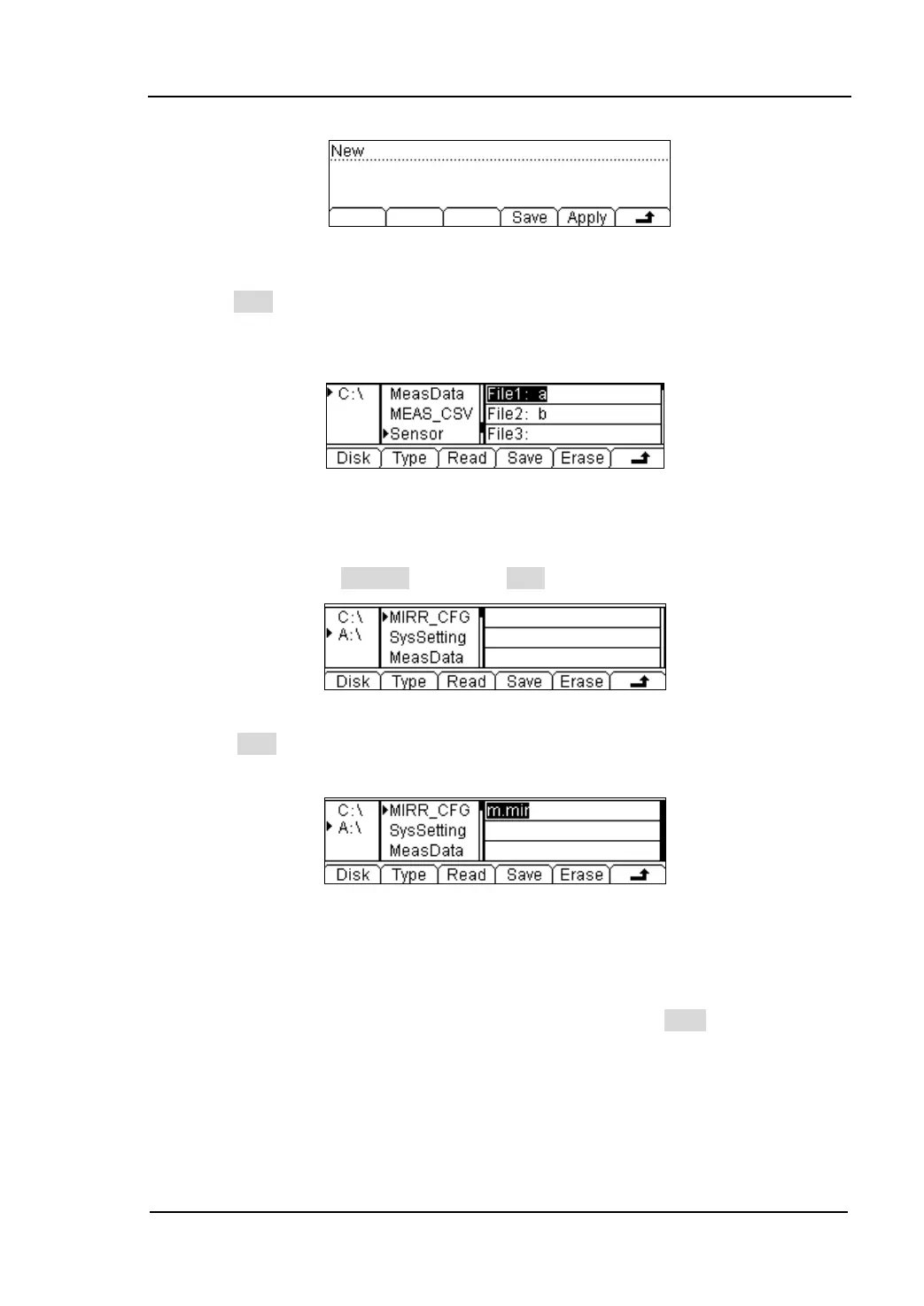

Figure 3-40 Finish interface
3. Press Save to store Sensor file has been selected into the interior Memory of
DM3058, then you will get a file named a. Please create another file b as the
same way.
Figure 3-41 Save interface
4. Save the files form “System Configuration” and “Sensor Configuration” have
been set to U-disc in the format of “Mirror Image”.
Inset U-disc; select Location as A:\ and Type as “Mirror Image” see as follows:
Figure 3-42 Mirror Image interface
Press Save and input file name as “m”, then a Mirror Image Configuration file
will be obtained.
Figure 3-43 Mirror Image Configuration file
5. At present, m and mir file contains 2 System Configuration files which are
“Set1” and “Set2” and 2 Sensor Configuration files which are b and a.
(1) You can delete the configuration files within DM3058 and Read m.mir file
again to re-release them to corresponding location inside of DM3058.
(2) Also, you can colon them to other DM3058 via U-disk.
