User’s Guide for DM3058
To Measure Period
Operating Steps:
1. Connecting the red lead (Test leads) to Terminal-HI and black lead to Terminal
LO as shown in Figure2-33.

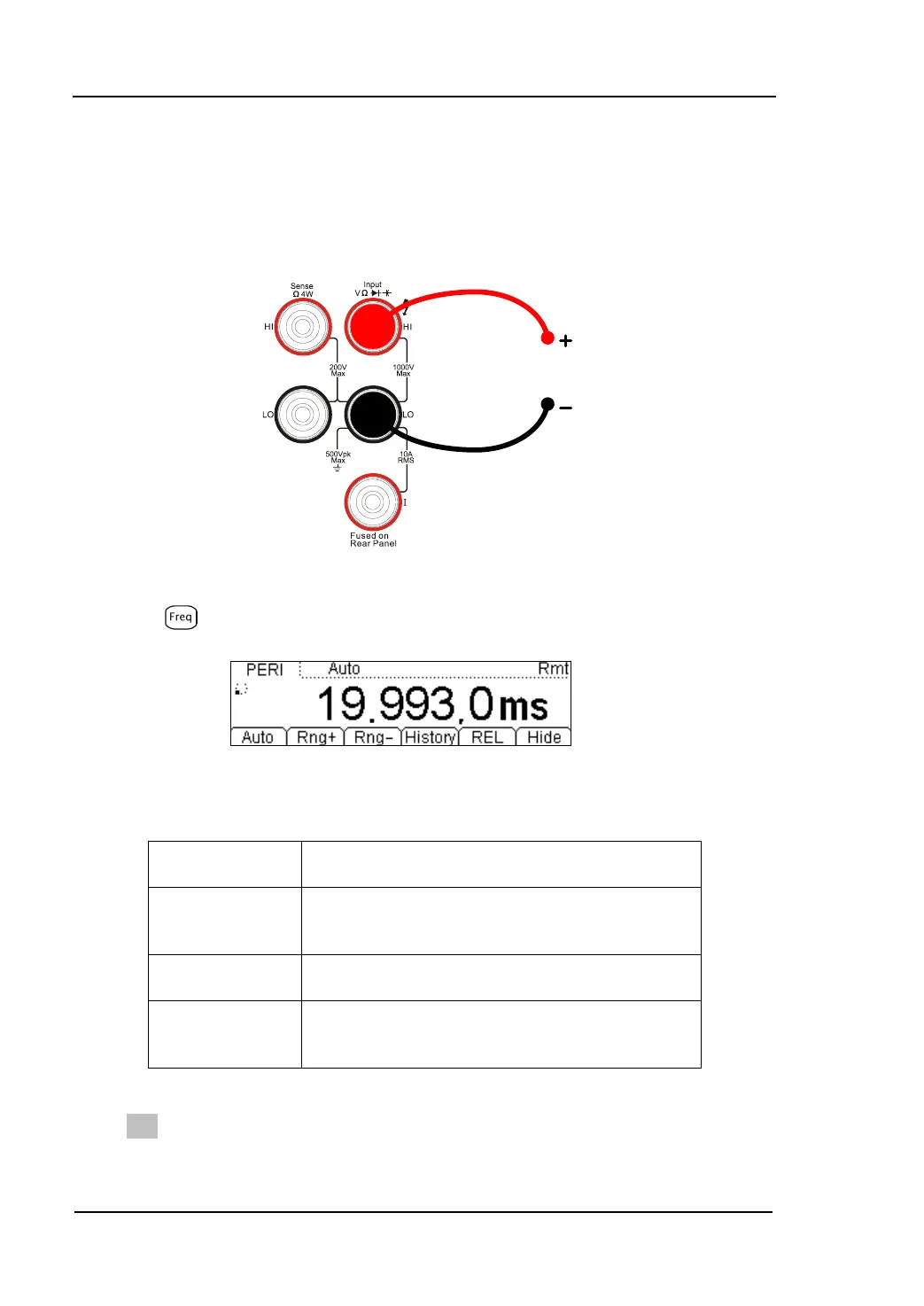

Figure 2-33 Sketch map for connecting
2. Press until enter into the following interface.
Figure 2-34 Period Measurement Interface
Table 2-11 Period Characteristic
3. Set the relative value ( Optional)
Press REL to open or close Relative operation function. When it is open, “REL” is
shown over the screen and the reading displayed is a relative value which comes
To Next Page
