Rigol DS1054Z Programming Guide

RIGOL Chapter 2 Command System
2-216 MSO1000Z/DS1000Z Programming Guide
:WAVeform Commands
The :WAVeform commands are used to read the waveform data and its related settings. :WAVeform:MODE
is used to set the reading mode of the waveform data. In different mode, the definition of each parameter
is different, as shown in Figure 2-1 and Figure 2-2.

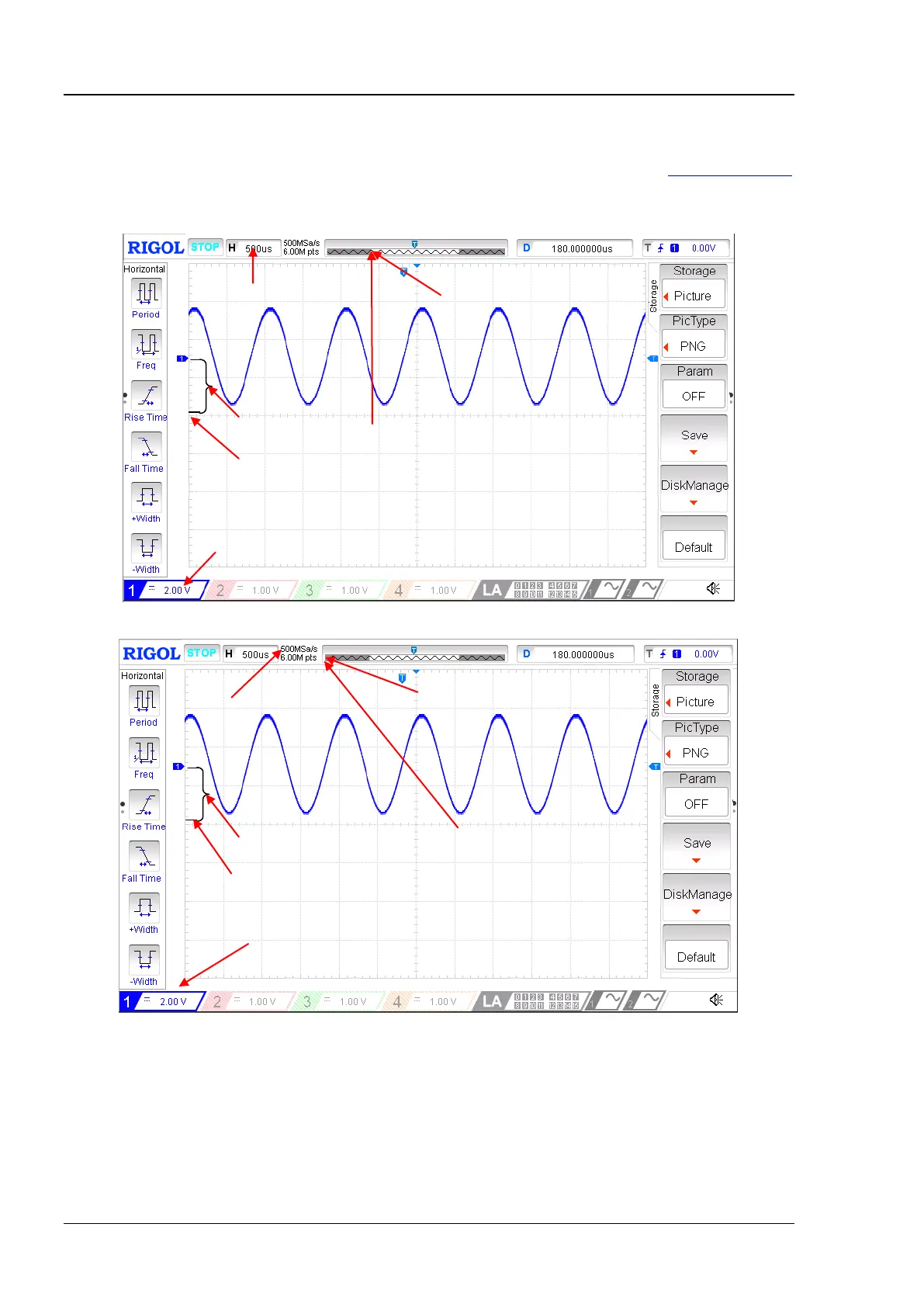

Figure 2-1 Parameter Definitions in NORMAL Mode
Figure 2-2 Paramter Definitions in RAW Mode
Note
[1]
: In RAW mode, YINCrement is related to the Verticalscale of the internal waveform and the Verticalscale
currently selected.
XORigion
YORigion
YREFerence
YINCrement
[1]
XINCrement=1/SampleRate
XORigion
YORigion
YREFerence
YINCrement=Verticalscale/25
XINCrement=TimeScale/100
XREFerence
XREFerence

Rigol DS1054Z Specifications

General

Channels	4
Bandwidth	50 MHz
Sample Rate	1 GSa/s
Memory Depth	24 Mpts
Display	7 inch TFT LCD (800x480)
Vertical Sensitivity	1 mV/div to 10 V/div
Time Base Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Trigger Types	Edge, Pulse, Video, Slope
Connectivity	USB Host, USB Device, LAN
Input Impedance	1 MΩ
Power Supply	100-240 VAC, 45-440 Hz
