Rigol DS1054Z Programming Guide

RIGOL Chapter 3 Programming Demos
3-6 MSO1000Z/DS1000Z Programming Guide

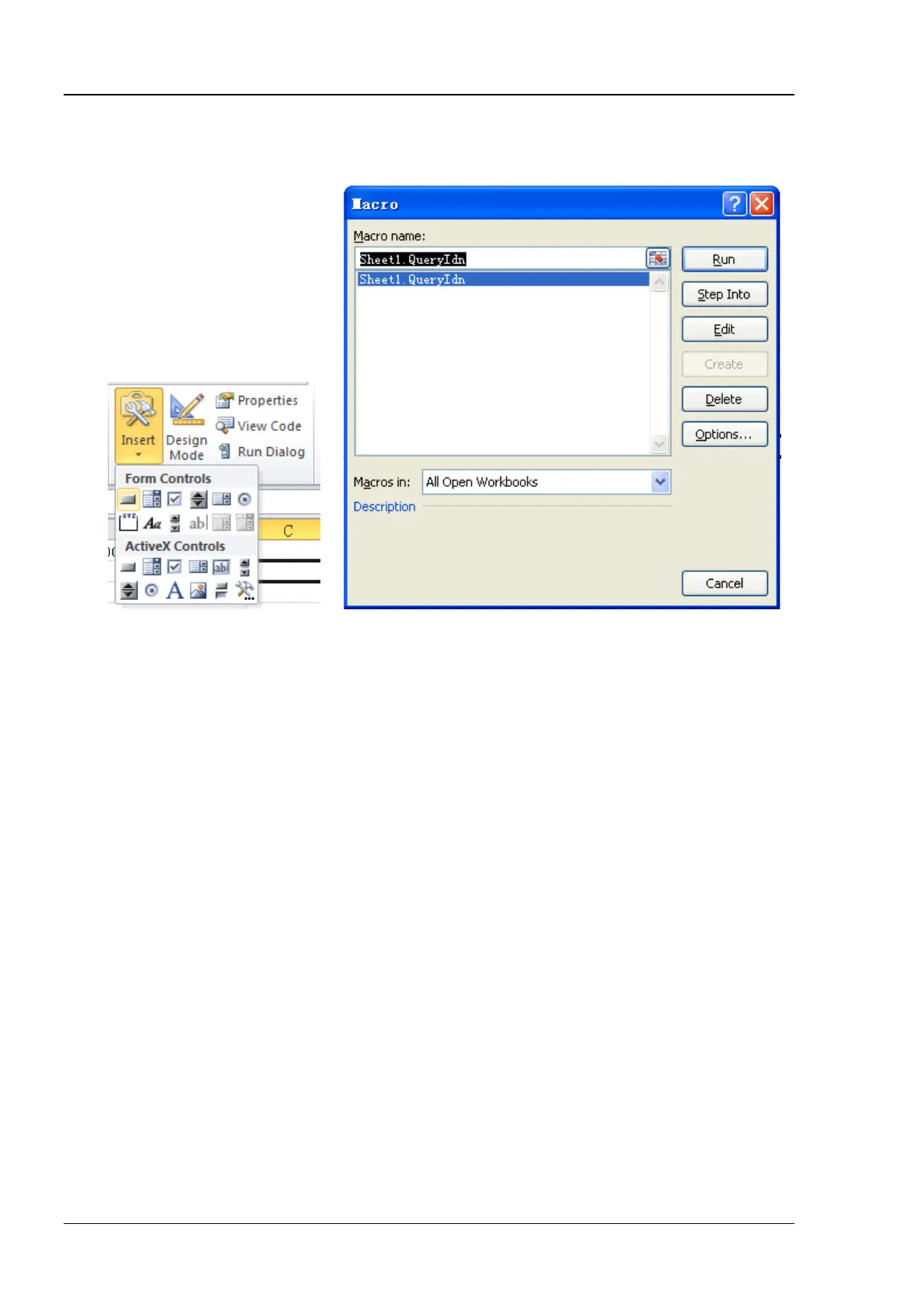

6. Add button control: click Insert in the Developer menu, select the desired button in Form Controls
and put it into the cell of the Excel. At this point, the Assign Macro interface is displayed, select
"Sheet1.QueryIdn" and click "Run".
By default, the button mane is "Button 1". Right-click the button and select Edit Text in the pop-up
menu to change the button name to "*IDN?".
7. Click the "*IDN?" button to send request and read data. The returned data will be displayed in SHEET1
CELLS (2,2).

Rigol DS1054Z Specifications

General

Channels	4
Bandwidth	50 MHz
Sample Rate	1 GSa/s
Memory Depth	24 Mpts
Display	7 inch TFT LCD (800x480)
Vertical Sensitivity	1 mV/div to 10 V/div
Time Base Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Trigger Types	Edge, Pulse, Video, Slope
Connectivity	USB Host, USB Device, LAN
Input Impedance	1 MΩ
Power Supply	100-240 VAC, 45-440 Hz
