Rigol DS1054Z Programming Guide

Chapter 3 Programming Demos RIGOL
MSO1000Z/DS1000Z Programming Guide 3-11

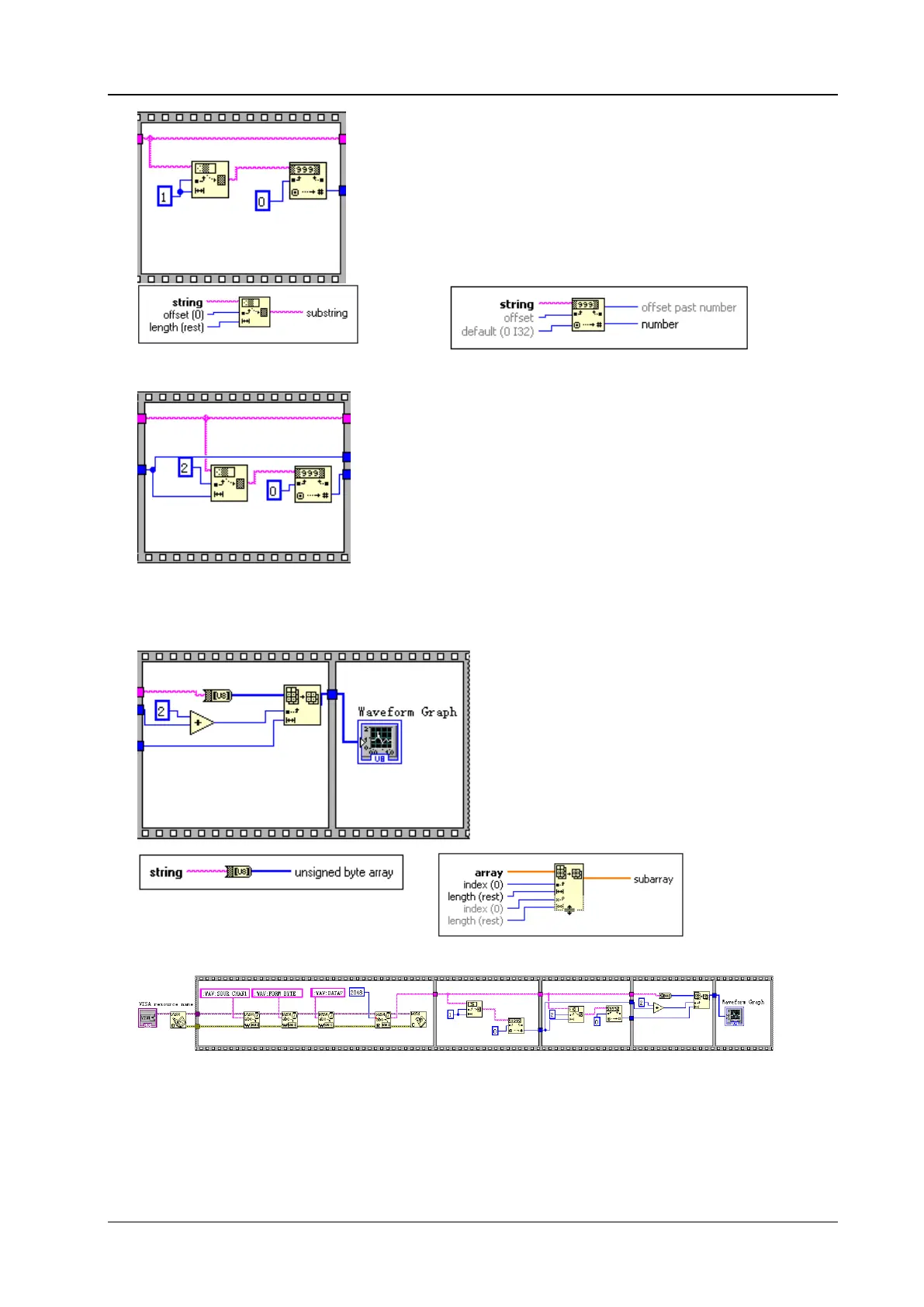

Get the length of the effective waveform data.
7. Convert the character data into array format using the String To Byte Array, namely display the
waveform data on the Waveform Graph control and then remove the TMC data header using the
Array Subset function.
8. The complete program block diagram is as shown in the figure below.

Rigol DS1054Z Specifications

General

Channels	4
Bandwidth	50 MHz
Sample Rate	1 GSa/s
Memory Depth	24 Mpts
Display	7 inch TFT LCD (800x480)
Vertical Sensitivity	1 mV/div to 10 V/div
Time Base Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Trigger Types	Edge, Pulse, Video, Slope
Connectivity	USB Host, USB Device, LAN
Input Impedance	1 MΩ
Power Supply	100-240 VAC, 45-440 Hz
