Rigol DS1104Z Plus Programming Guide

RIGOL Chapter 3 Programming Demos
3-6 MSO1000Z/DS1000Z Programming Guide

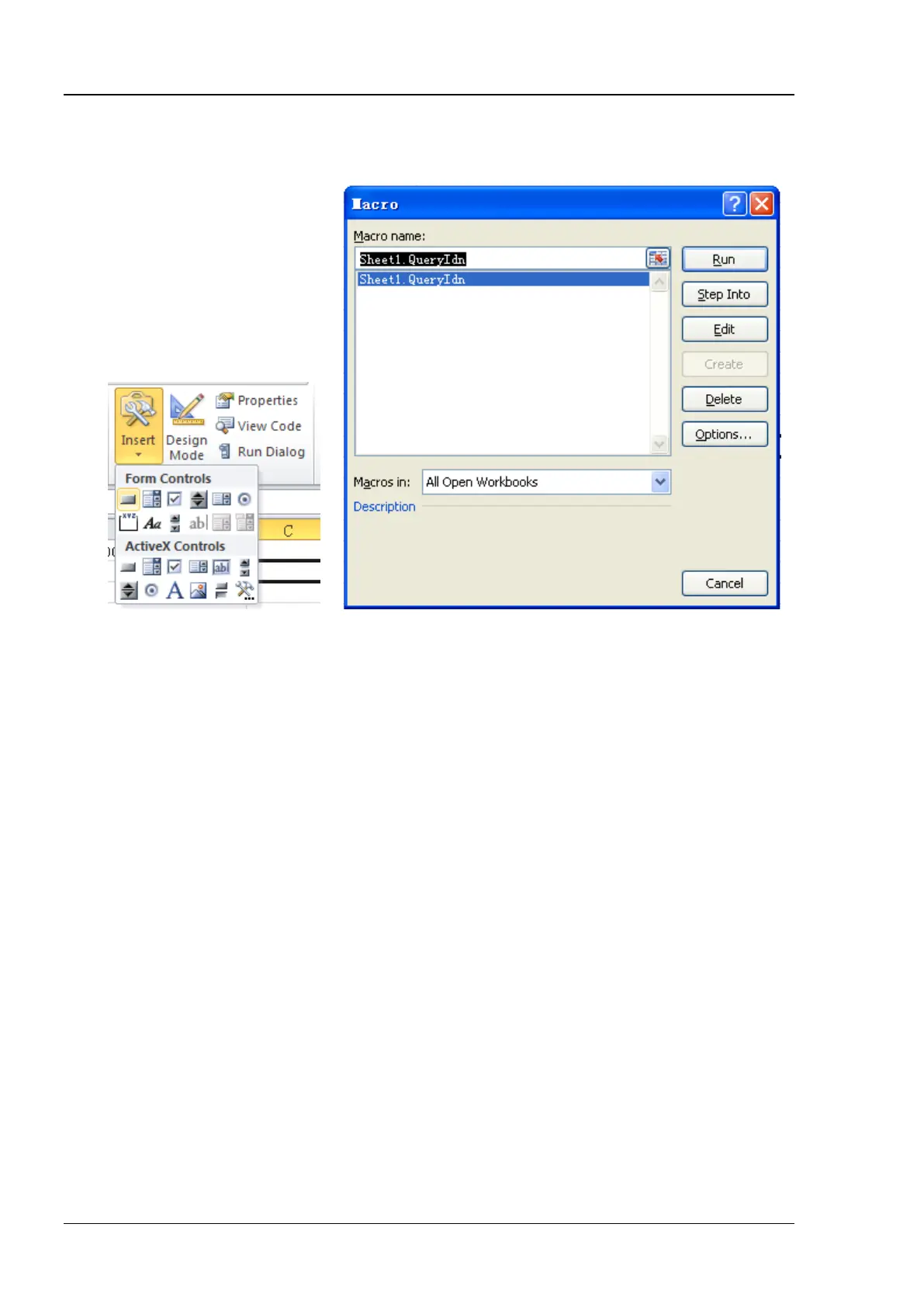

6. Add button control: click Insert in the Developer menu, select the desired button in Form Controls
and put it into the cell of the Excel. At this point, the Assign Macro interface is displayed, select
"Sheet1.QueryIdn" and click "Run".
By default, the button mane is "Button 1". Right-click the button and select Edit Text in the pop-up
menu to change the button name to "*IDN?".
7. Click the "*IDN?" button to send request and read data. The returned data will be displayed in SHEET1
CELLS (2,2).

Rigol DS1104Z Plus Specifications

General

Bandwidth	100 MHz
Channels	4
Sample Rate	1 GSa/s
Memory Depth	24 Mpts
Waveform Capture Rate	30, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Timebase Range	5 ns/div to 50 s/div
Connectivity	USB Host, USB Device, LAN, AUX
Vertical Resolution	8 bits
Power Supply	100-240 V AC, 45-440 Hz
Display	7 inch TFT LCD
Trigger Types	Edge, Pulse, Video, Slope
Input Impedance	1 MΩ ± 2%
