Chapter 7 Protocol Decoding RIGOL
DS2000E User’s Guide 7-19
shown in Figure 7-13) or "Details" form (as shown in Figure 7-14). If a USB
storage device is currently connected to the instrument, press Export to export
the data table to the external USB storage device in CSV format.

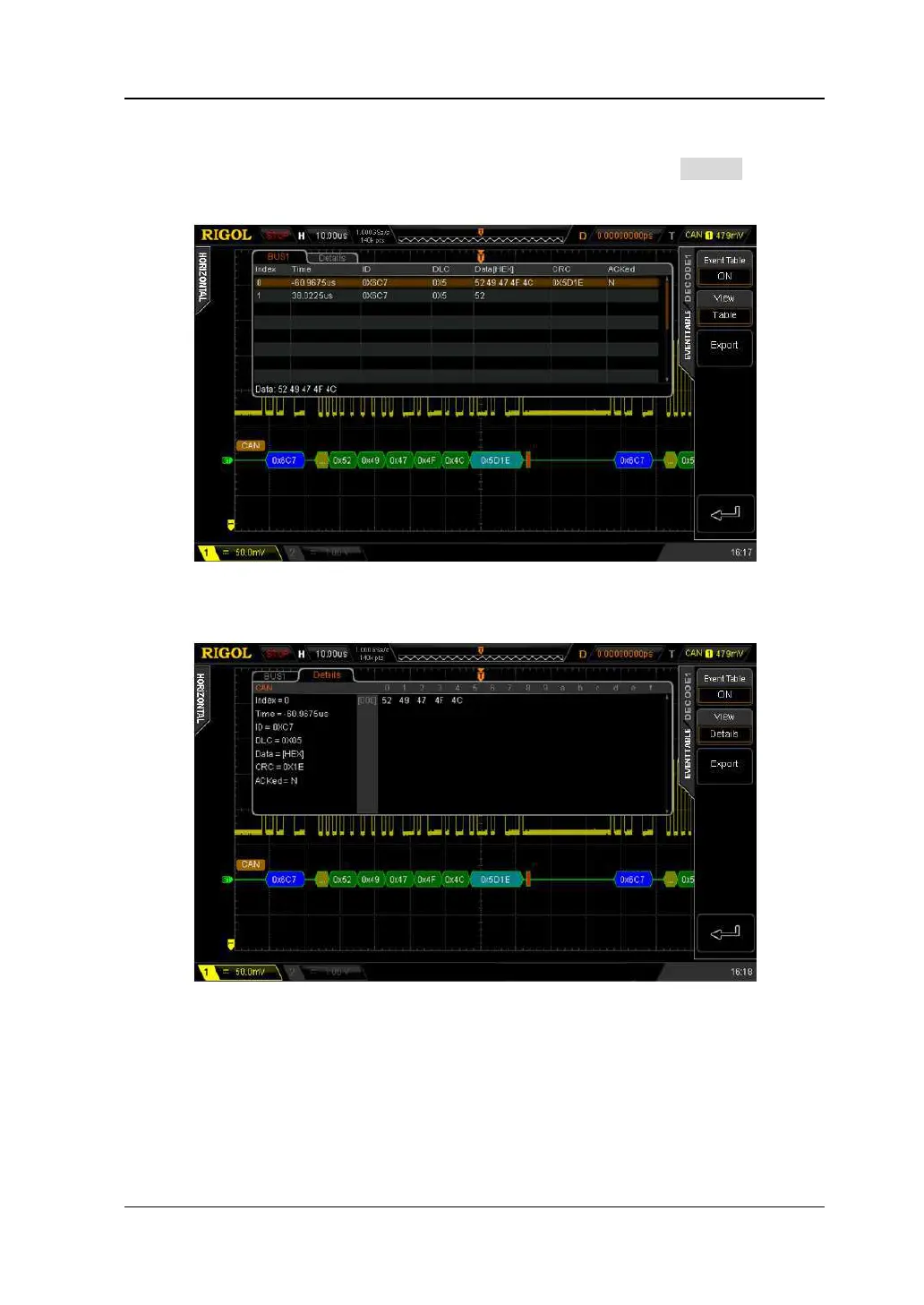

Figure 7-13 CAN Event Table (Table)
Figure 7-14 CAN Event Table (Details)
7. Decoded CAN Data Interpretation
Frame ID: displayed as hexadecimal number and expressed by blue patch.
DLC (Data Length Code): displayed as hexadecimal number and expressed
by chartreuse patch.
