label is the same as that of the waveform.
3. Status
Available states include RUN, STOP, T’D (triggered), WAIT and AUTO.
4. Horizontal Time Base
 Represent the time per grid on the horizontal axis on the screen.
 Use HORIZONTAL
SCALE to modify this parameter. The range
available is from 2.000 ns/div to 1.000 ks/div.
5. Sample Rate/Memory Depth
 Display the current real-time sample rate of the analog channels and
memory depth of the oscilloscope.
 The parameter changes with the horizontal time base.

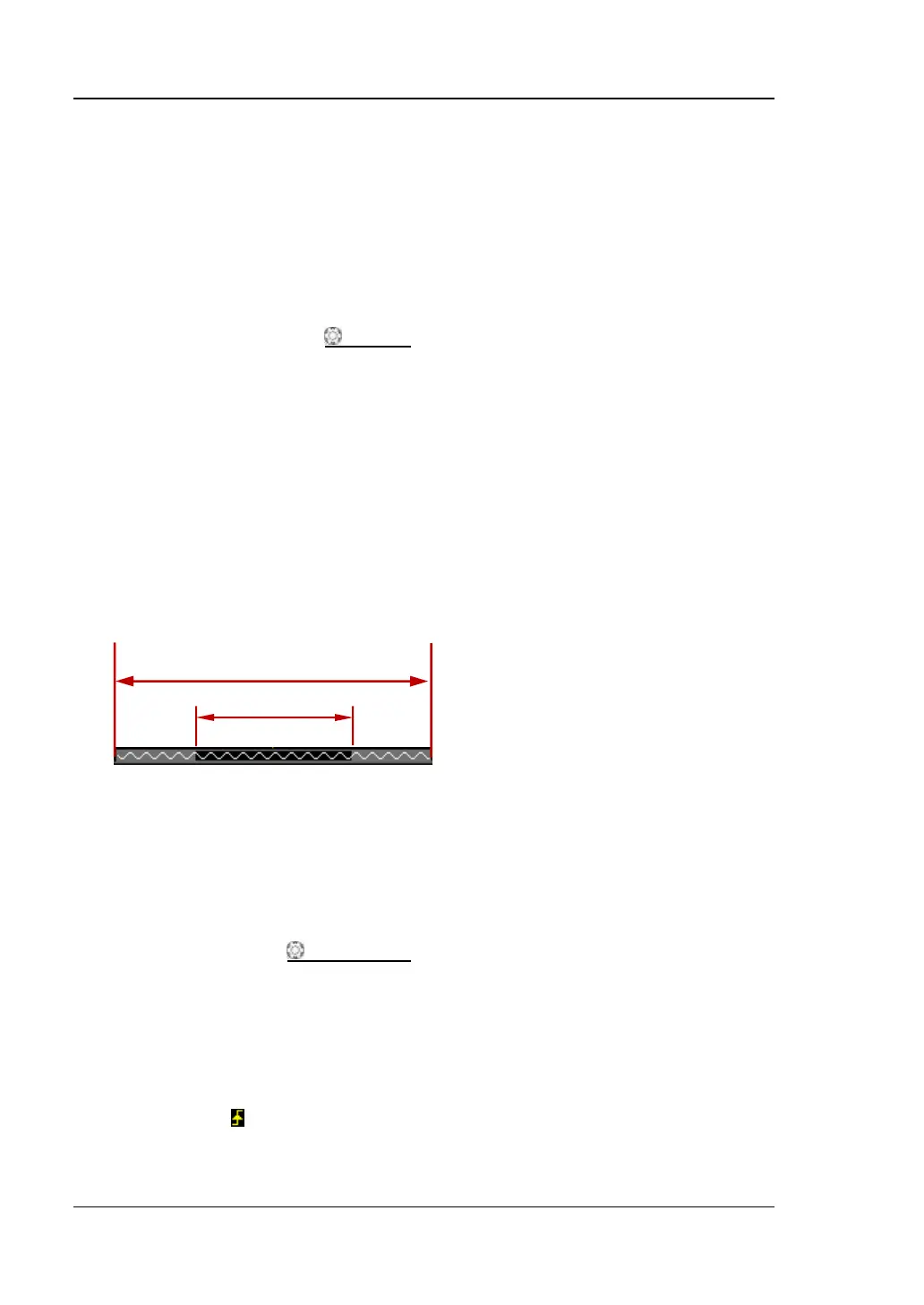

6. Waveform Memory
Provide the schematic diagram of the memory position of the waveform
currently on the screen.
7. Trigger Position
Display the trigger position of the waveform in the waveform memory and on
the screen.
8. Horizontal Position
Use HORIZONTAL
POSITION to modify this parameter. Pressing down
the knob will automatically set the parameter to zero.
9. Trigger Type
Display the currently selected trigger type and trigger condition setting.
Different labels are displayed when different trigger types are selected.
For example:
represents triggering on the rising edge in "Edge" trigger.
waveform on the screen
waveform in the memory
