Rigol DSA1030A series User Manual

Front Panel Key Reference RIGOL
User’s Guide for DSA1000 Series
2-47
 You can use the numeric keys, knob or direction keys to modify this
parameter. For more details, please refer to “Parameter Input”.
Table 2-29 TG reference position
Parameter Explanation
Default 100%
Range
0 to 100％
Unit %
Knob Step
1%
Direction Key Step
10%
5. Ref Trace
Sets whether to display the reference trace or not. If View is selected, the
reference trace saved (Trace 3) will be shown in the trace type of Freeze.

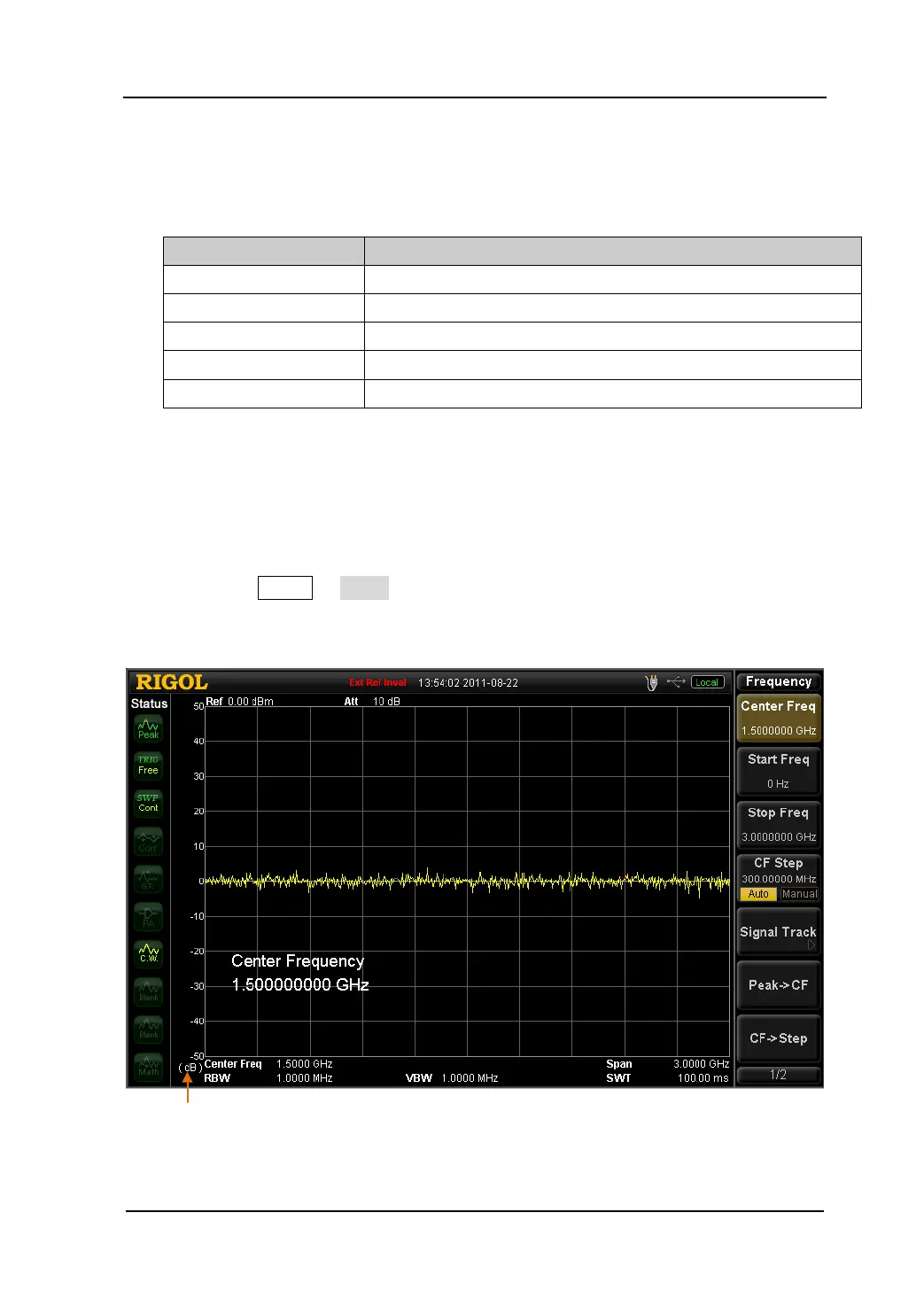

Note: When normalization is enabled, the unit of Y-axis is “dB” and not influenced by
the definition in AMPT  Units and a “(dB)” is displayed under the Y-axis scale in the
user interface (as shown in the figure below).
The unit of Y-axis is “dB” when normalization is enabled
