RIGOL Remote Control
4-8 User’s Guide for DSA1000 Series

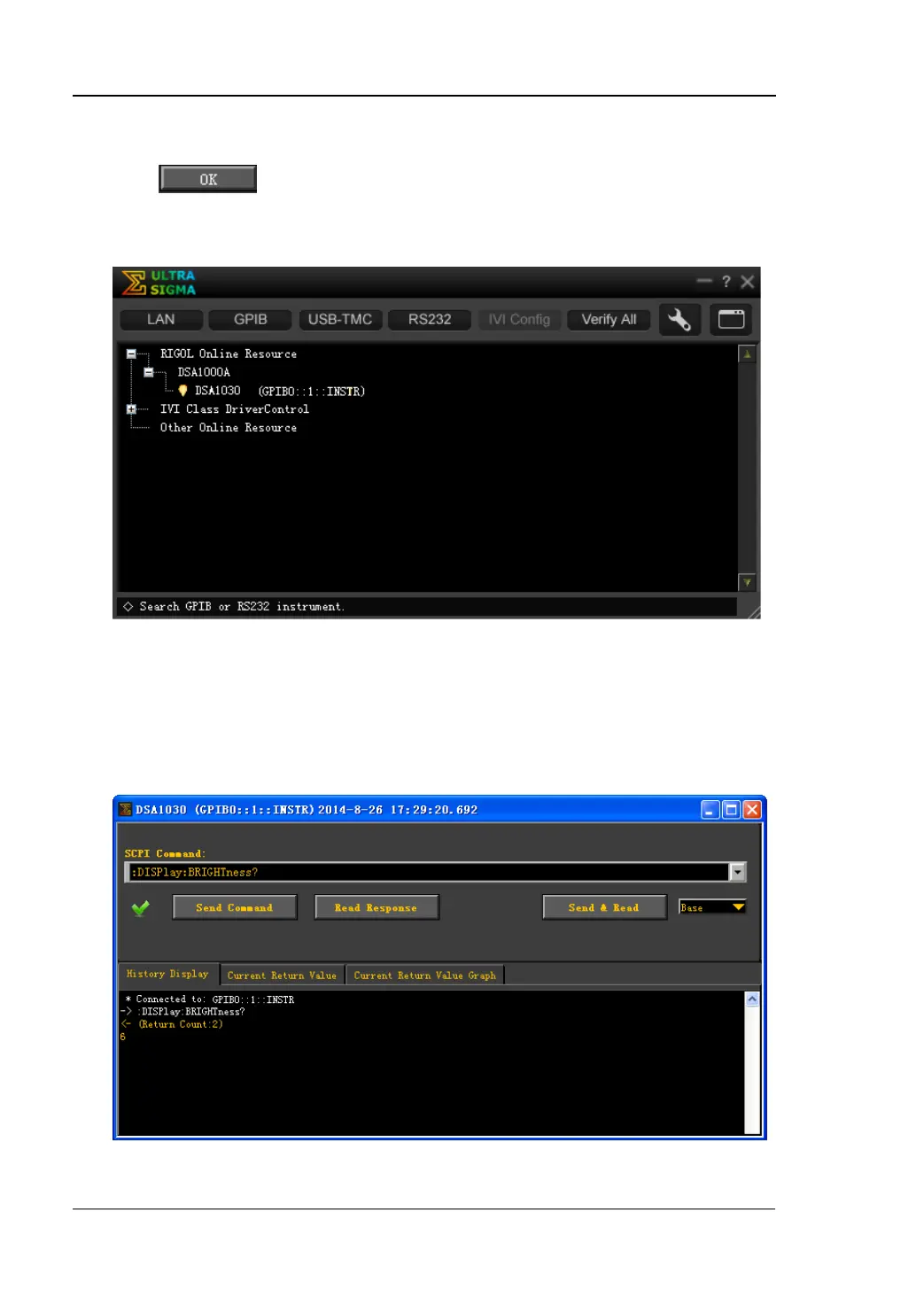

5. View the resource
Click
and back to the main interface of Ultra Sigma. The resources
that have been searched successfully at present are shown in the “RIGOL Online
Resource” catalog.
Figure 4-8 View the GPIB resource
6. Communication test
Right-click the resource name such as DSA1030 (GPIB0::1::INSTR) and
select SCPI Panel Control to open the interface below, from which you can
write and read commands.
Figure 4-9 Write and read commands via GPIB
