2.5 Marker Measurements
2.5.1 Marker
The marker appears as a rhombic sign (shown below) for identifying the point on the
trace. We can easily readout the parameters of the marked point on the trace, such as
the amplitude, frequency and sweep time.

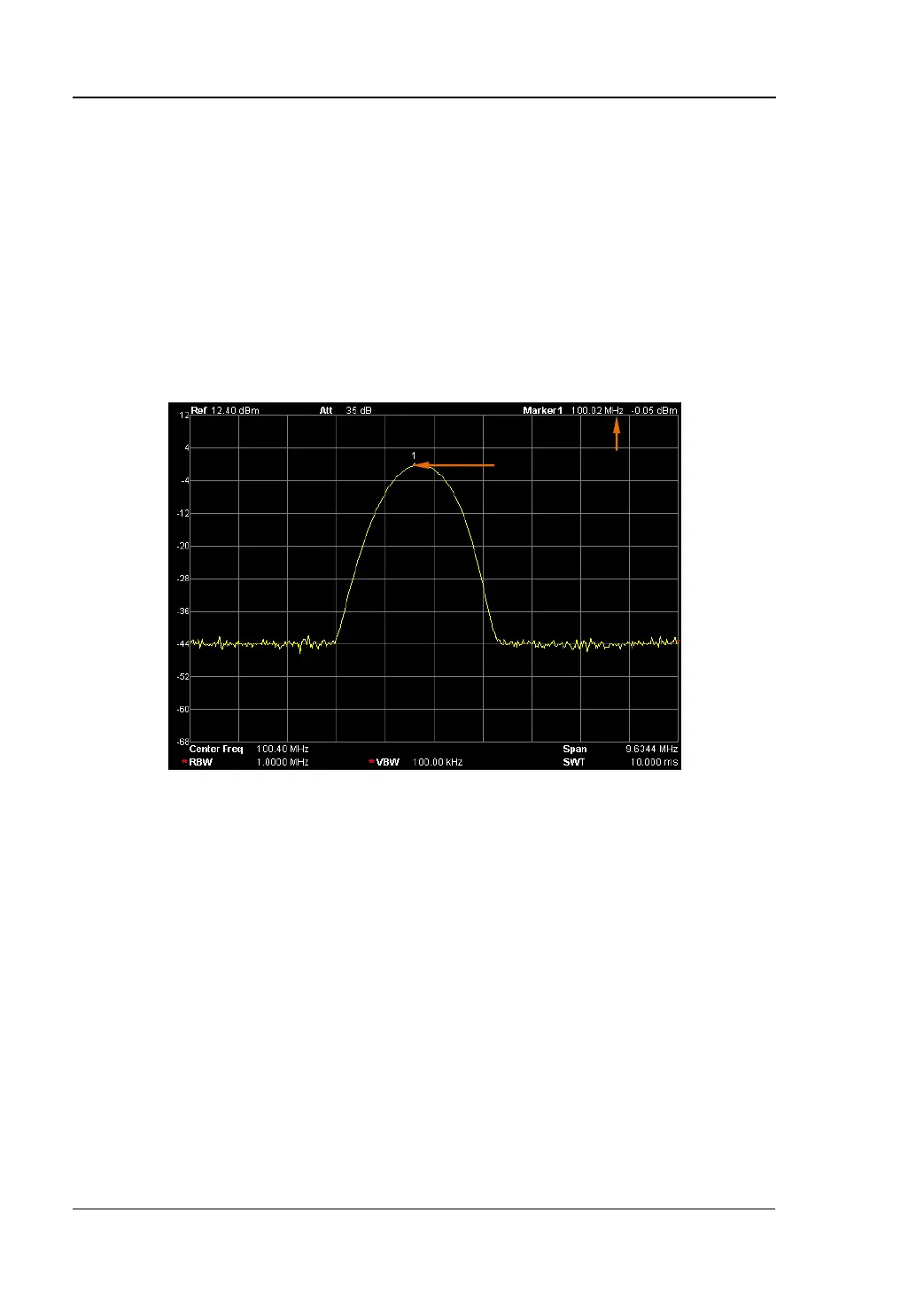

Figure 2-24 Schematic of the marker
Key Points:
 The analyzer allows for up to four groups of markers to be displayed at one time,
but only one pair or one single marker is active every time.
 You can use the numeric keys, knob or direction keys to enter the desired
frequency or time when any marker type menu is active, so as to view the
readouts of different points on the trace.
