Measurement Examples RIGOL
User’s Guide for DSA1000 Series
3-31
－Press TOI Span and enter 2 MHz.
3. Measurement result
The measurement results shown in the lower window are:
Freq
dBm
dBc
Intercept
Base Lower 100 MHz -5.7 dBm 0 ---
Base Upper 100.2 MHz -5.65 dBm 0.05 ---
3rd Order Lower 99.8 MHz -60.16 dBm -54.46 21.53
3rd Order Upper 100.4 MHz -60.93 dBm -55.23 21.99
See figure below.

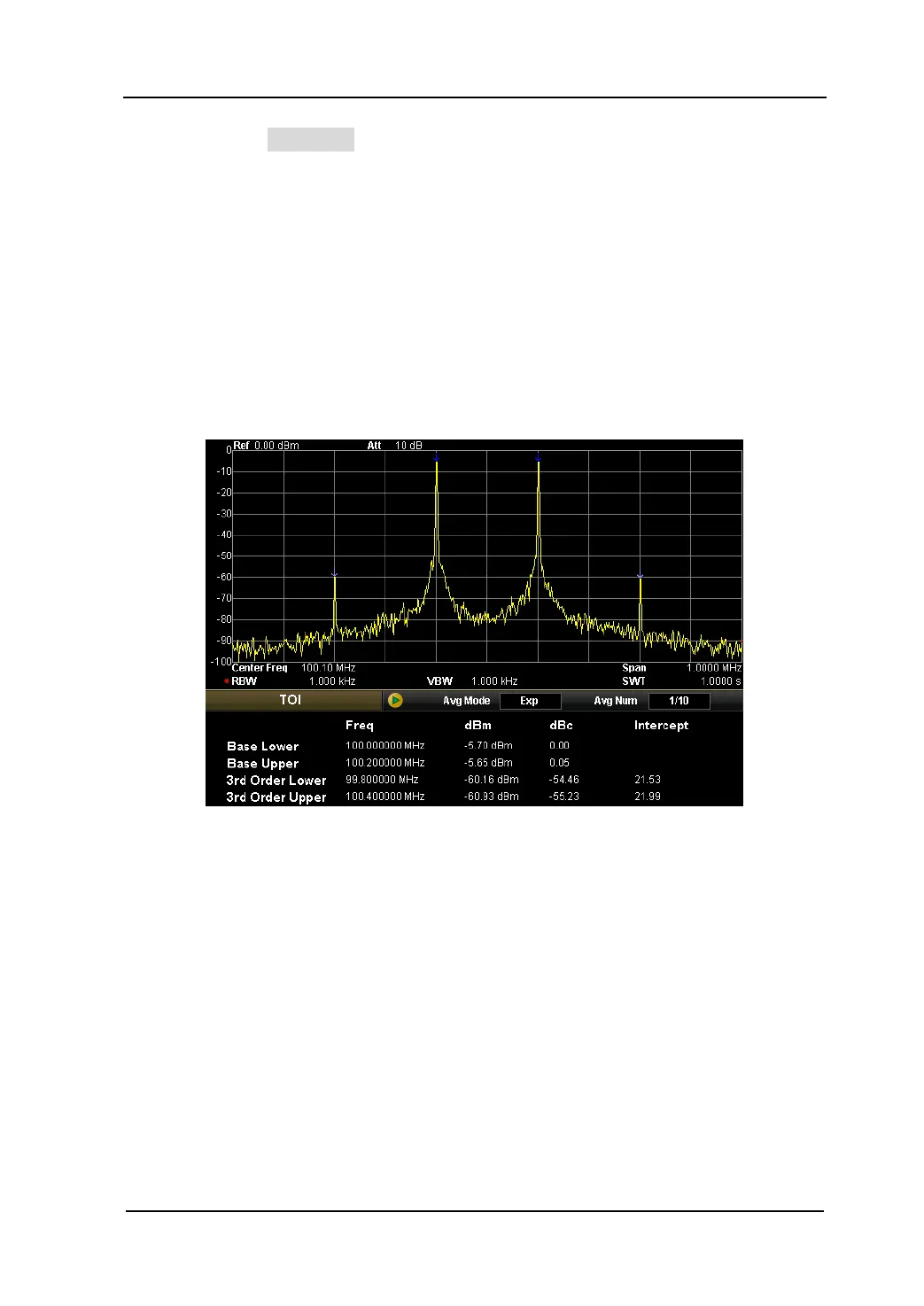

Figure 3-15 Use TOI function to measure TOI distortion
