Rigol DSA1030A series - User Interface; Figure 1-20 User Interface

RIGOL Quick Start
1-20 User’s Guide for DSA1000 Series
1.4 User Interface
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
31
30
29
28
27
26
23
24
25
22
19
20
21
32
33
34
35
36
37
38
41
40
39
42

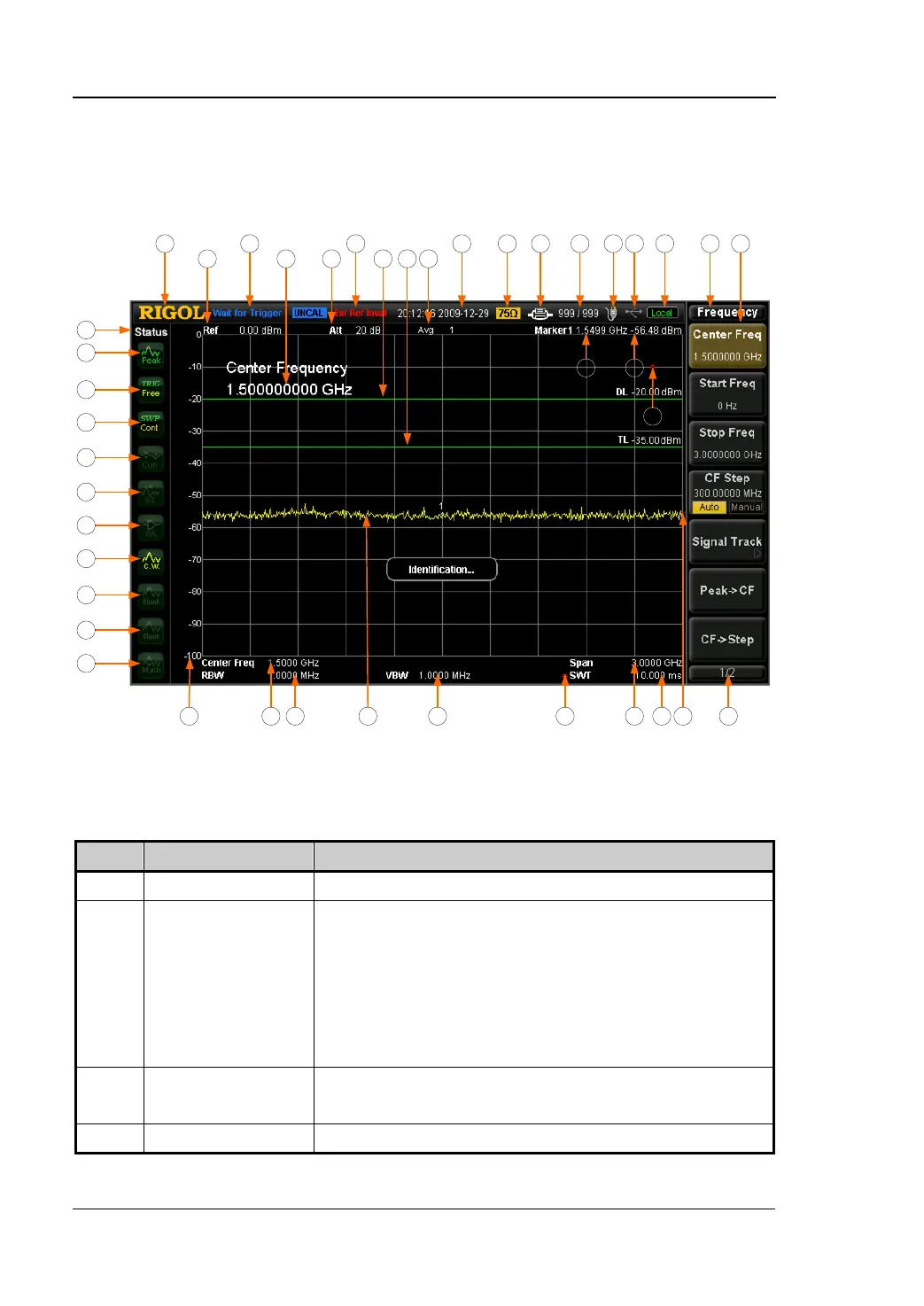

Figure 1-20 User interface
Table 1-3 User interface legends
NO. Name Description
1 LOGO Logo of RIGOL company
2 System status
( “UNCAL” and
“Identification…”
are in different
locations)
Auto Tune
Auto Range
Wait for Trigger
Calibrating
UNCAL (Measurement Uncalibrated)
Identification… (LXI Identification)
3 External reference Ext Ref
Ext Ref Invalid
4 Time System time
