Risco ProSYS Plus - Connecting Utility Output 1; Placing the JMP 2 (UO1) Jumper

09/2016 Page 15 5IN2371 C

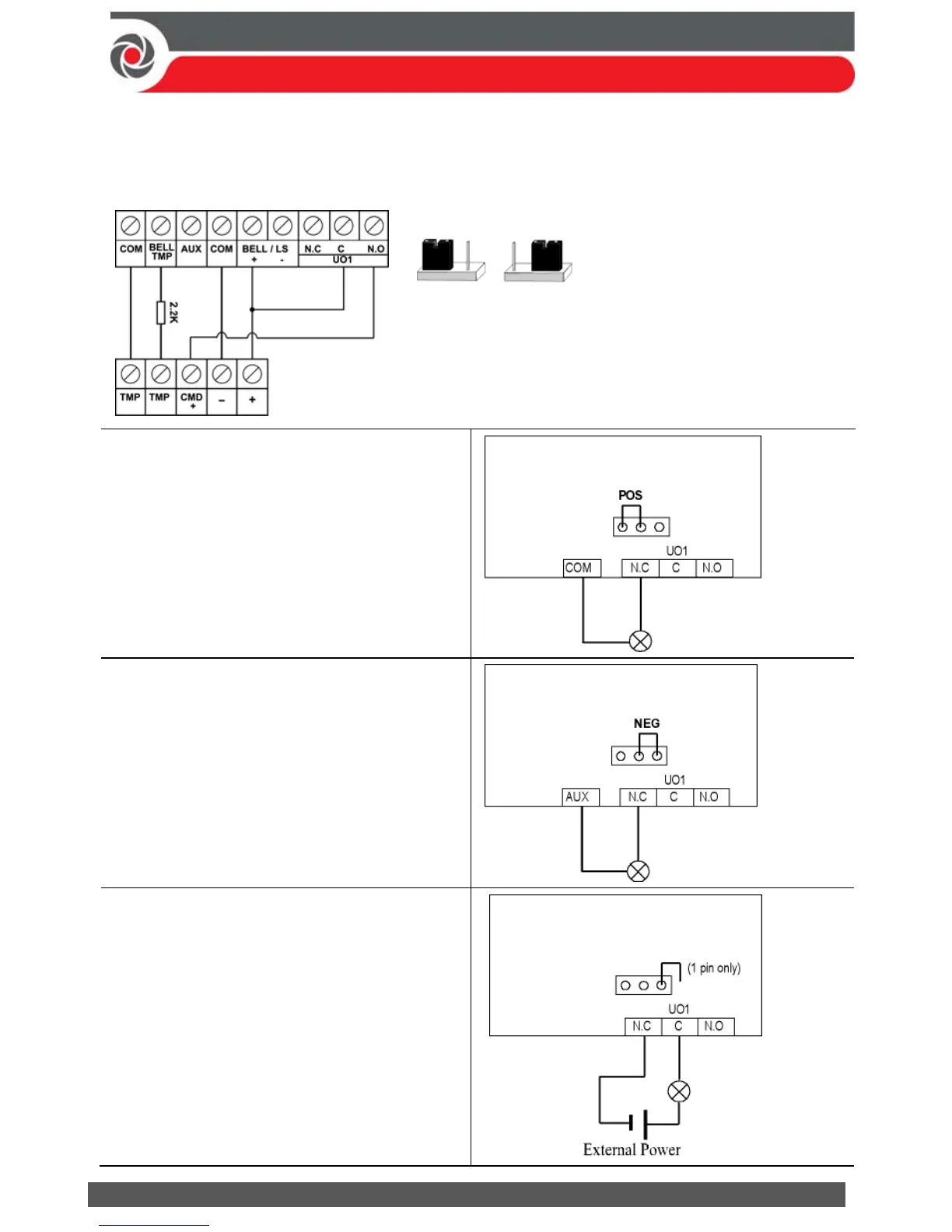

Connecting Utility Output 1
Utility outputs such as UO1 (Utility Output 1) are used to activate external
self-powered devices (such as siren):
Placing the JMP 2 (UO1) Jumper
POS NEG
The JMP 2 jumper connector determines the
UO1 connection behavior. UO1 is normally use
d
for an external siren connection, as follows:
Positive (POS): When the JMP 2
jumper is placed on POS, the C
terminal on UO1 receives 13.8V.
NOTE: In this case, the maximum
combined current draw from the 2
AUX terminals plus UO1 and UO2 is
750m
Negative (NEG): When the JMP 2
jumper is placed on NEG, the C
terminal on UO1 receives COM.
If the JMP 2 jumper is placed only on
1 pin, the UO1 acts as a dry contact.
ProSYS Plus Main Panel
ProSYS Plus Main Panel
ProSYS Plus Main Panel
JMP 2
JMP 2
JMP 2
