2-10 Riverstone Networks RS 3000/3100/3200 Switch Router Getting Started Guide
Hardware Features Introduction

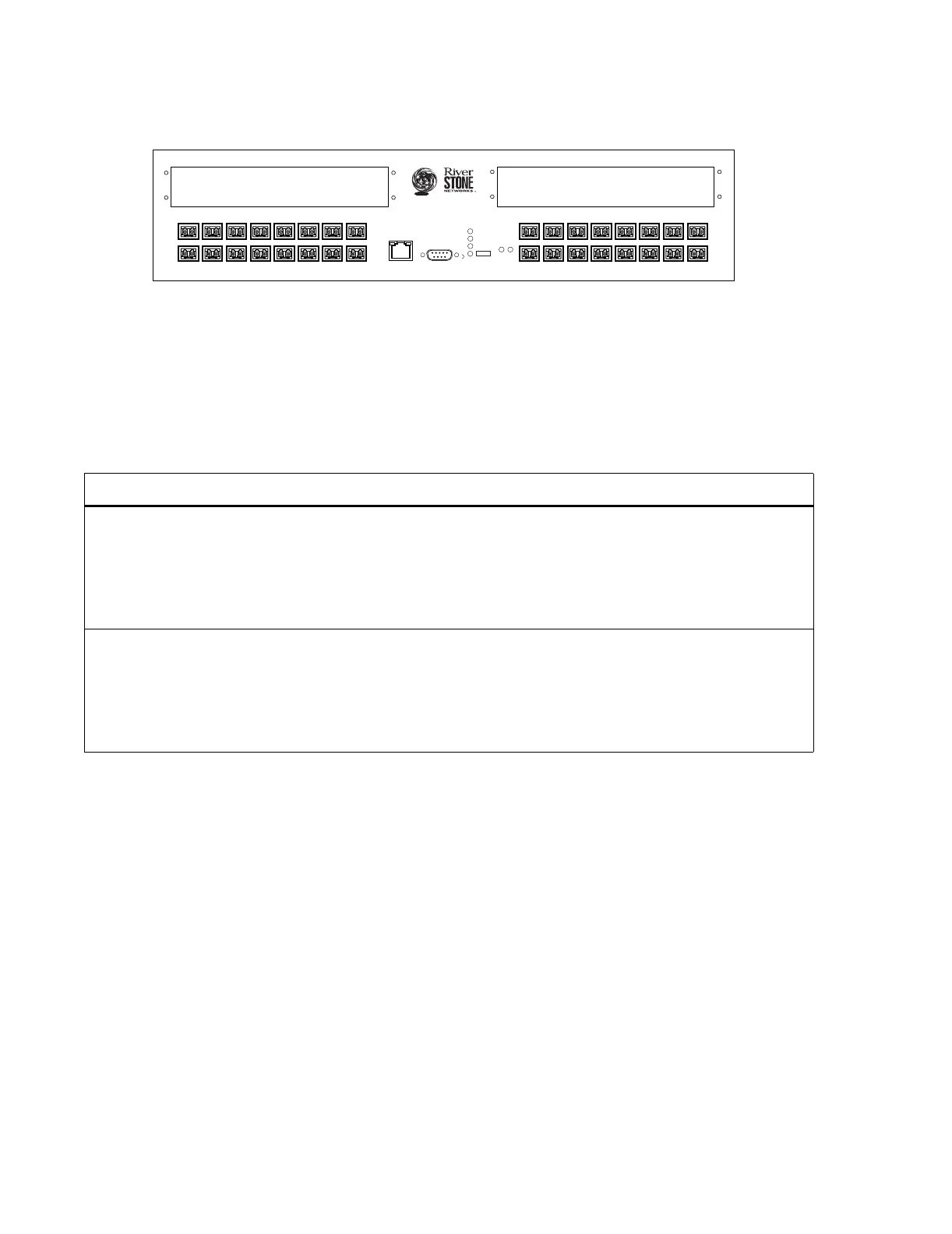

Figure 2-3 Front view of a RS 3200 chassis
You can install line cards in any order in the expansion slots. For example, you could install a module in the first slot
and leave the other slot empty. The RS 3000, RS 3100 and RS 3200 provide non-blocking throughput regardless of the
software features you are using. Therefore, you do not need to load balance line cards by placing them in certain
relationships.
Table 2-3 SFP transceiver media specifications
2.4.2 External Controls and Connections
The RS 3000, RS 3100 and RS 3200 have the following external controls and ports used for management:
• Male DB-9 Data Communications Equipment (DCE) port for serial connection to a terminal or PC
running terminal emulation software. Use this port to establish a direct CLI connection to the
RS 3000/RS 3100/RS 3200 . The default baud rate is 9600.
• 10BASE-T/100BASE-TX Data Terminal Equipment (DTE) port for network connection to a
management station. The port is configured as Media Data Interface (MDI). Use this port to establish
a management connection to the RS 3000/RS 3100/RS 3200 over a local or bridged Ethernet
segment.
• Reset switch (RST). Use this switch to reboot the Switch Router’s motherboard. The Reset switch
is recessed in the chassis, so that a tool such as a small allen wrench is necessary to activate the
switch.
Port type Specification
SFPFX-01
• Multi-mode fiber interface
• 62.5 µm multi-mode fiber cable terminated with LC
connectors
• 1310 nm wavelength
• Maximum of 2 km of cable
SFPFX-09
• Single-mode fiber (intermediate reach) interface
• 10 µm single-mode fiber cable terminated with LC
connectors
• 1310 nm wavelength
• Maximum cable length: 15,000 m
3
4
CONSOLE
10/100 MGMT
1
2
RS 3200
OK
ERR
DIAG
HBT
RST
DIAG
NMI
