Riverstone Networks RS 3000/3100/3200 Switch Router Getting Started Guide 2-21
Introduction Hardware Features
1000Base-LH line card

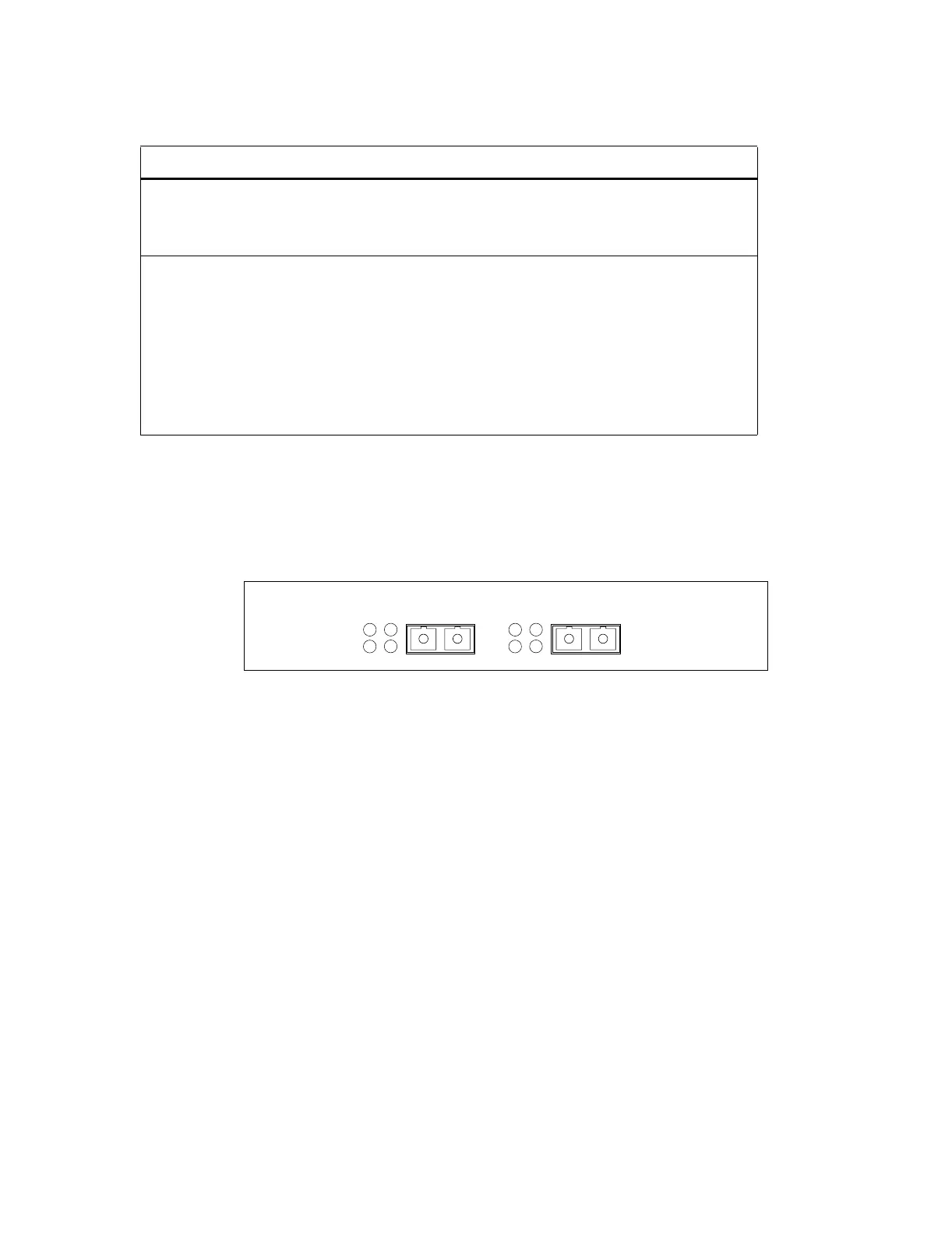

The 1000Base-LH line card supports SMF. Figure 2-10 shows the front panel of the 1000BASE-LH line card.
Figure 2-10 Front panel of the 1000BASE-LH line card
Per-port Tx Green – Indicates when the port’s transceiver transmits packets.
Orange – Indicates when the port’s transceiver transmits flow-control
packets.
Per-port AN Green – Indicates that the line card is auto-negotiating the operating mode of
the link between full-duplex and half-duplex.
Orange (intermittent) – Indicates that auto-negotiation is in process.
Orange (solid) – Indicates a problem with auto-negotiation configuration.
Red – Indicates an auto-negotiation failure. This fault may occur if the link
partner does not support full duplex.
Off – Indicates that auto-negotiation has been disabled or the link is down.
Table 2-13 1000BASE-LX line card LEDs (Continued)
LED Description
21
Rx
Tx Link
AN
Rx
Tx Link
AN
1000BASE-LHG3M-GLHB8-02
