2-14 Riverstone Networks RS 3000/3100/3200 Switch Router Getting Started Guide
Hardware Features Introduction
DC Power Supply
Warning Failure to provide a connection between the DC power supply and a reliable
earth ground can result in serious damage to the switch router and invalidate
your warranty.
The DC power supply provides enough current to operate a fully configured chassis. On the back end of the supply is
the three-terminal wiring block. See Figure 2-5.

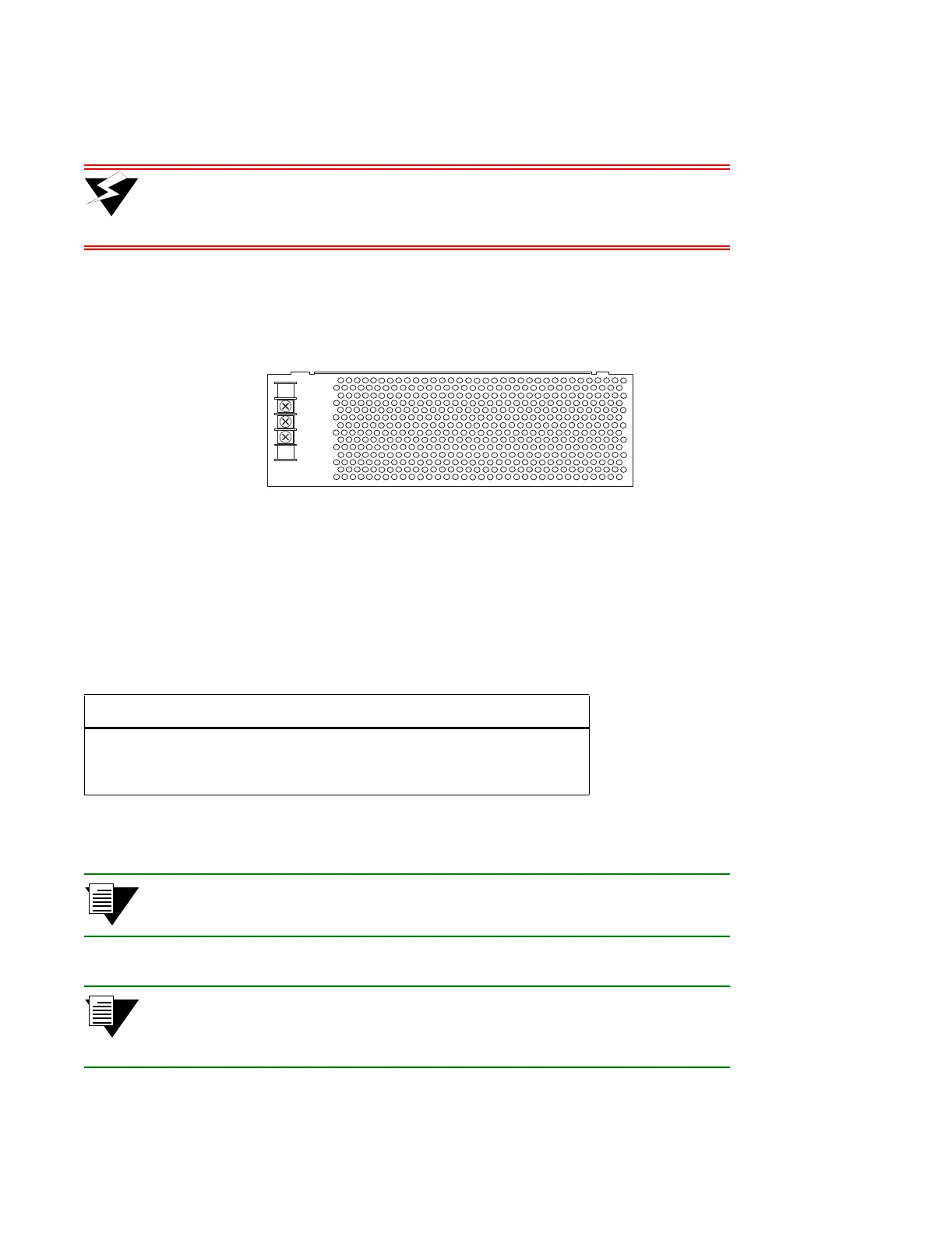

Figure 2-5 DC power supply back side with wiring block
The DC power supply has a three-terminal wiring block consisting of a positive (+) terminal, marked 48V; a negative
(–) terminal, marked RTN; and a safety ground, marked GND. The DC supply is designed to be powered by a 48 Volt
DC source. Use 12-gauge to 14-gauge wire to connect the 48-Volt source to the router’s DC power supply. Use
12-gauge to 14-gauge wire for the safety ground.
Note The RS 3000, RS 3100 and RS 3200 do not have an on-off switch. When you
connect the power supply to a DC power source, the router is on.
Nota El RS Switch Router no cuenta con un interruptor de encendido-apagado. Al
conectar el suministro de energía DC a una toma de corriente, el RS Switch Router
estará encendido.
Table 2-6 DC power supply specifications
Input Output
40 to 70 VDC at 14A, 213W 3.45 VDC at 58A maximum, 5.15
VDC at 6.5A maximum, and 12 VDC
at 0.6A maximum
48V
GND
RTN
