3-10 Riverstone Networks RS 3000/3100/3200 Switch Router Getting Started Guide
Installing the Hardware Hardware Installation

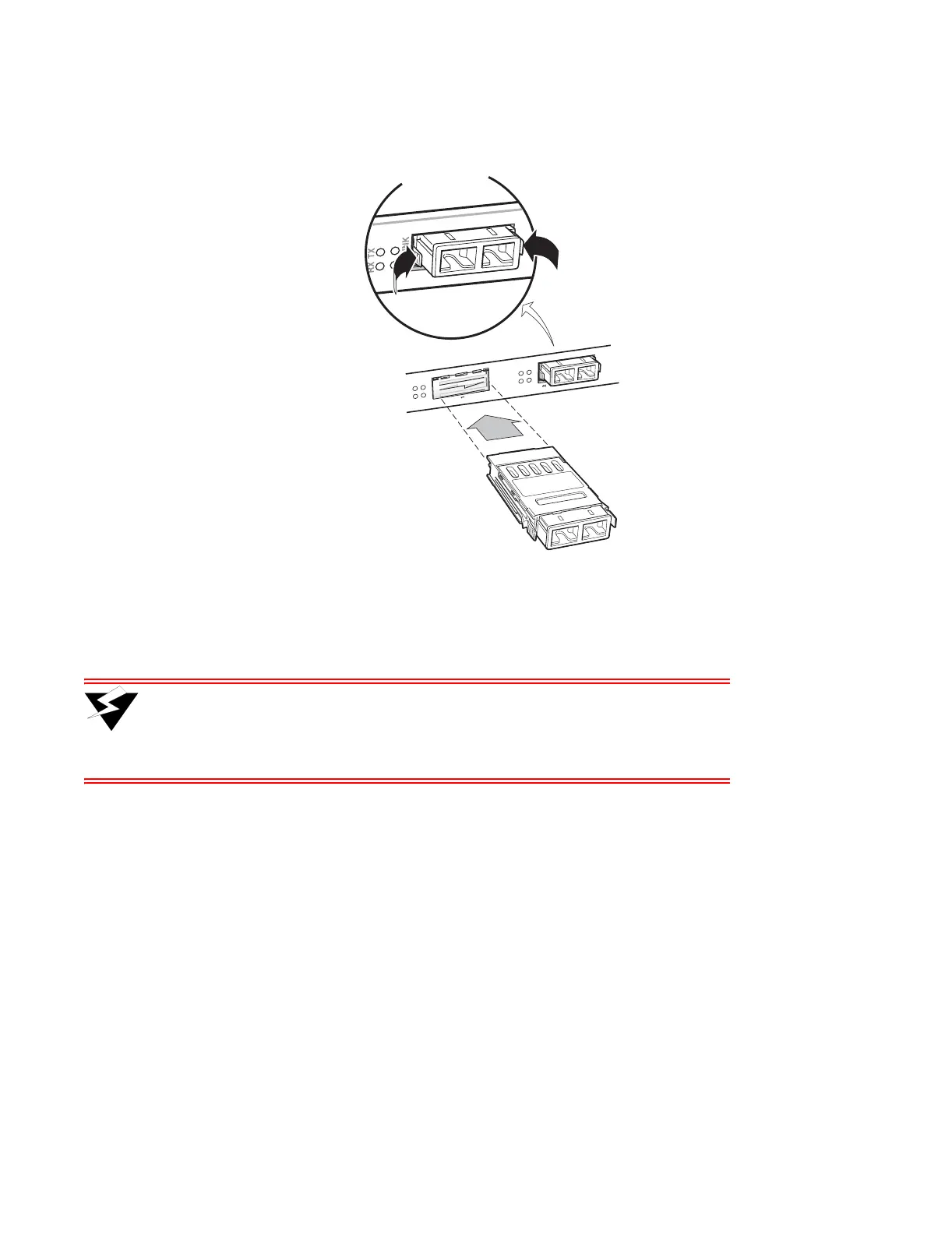

Figure 3-8 Inserting a GBIC module
2. Gently insert the GBIC module into the GBIC slot opening. The GBIC door on the line card folds
in, and the internal guides engage the alignment slots on the sides of the GBIC module.
Warning If the GBIC module does not go in easily, do not force it. If the GBIC is not
oriented properly, it will stop about one quarter of the way into the slot and
should not be forced any further. Remove and reorient the GBIC module so
that it slides easily into the slot.
3. Push the GBIC module in until the connector engages the 20-pin port. The GBIC is now installed.
3.3.4 Installing the ATM PHY Cards
Each ATM line card has two slots available for PHY cards. One ATM PHY card can be installed into each available
slot. You will need a #2 Phillips screwdriver to perform this procedure.
Figure 3-9 shows an example of how to install a PHY card. The procedure following the figure describes how to do
this.
Insert GBIC through spring-loaded
door. GBIC is keyed, and will
fit only if oriented correctly.
To remove,
press tabs on
top and bottom
of GBIC and pull.
