3-18 Riverstone Networks RS 3000/3100/3200 Switch Router Getting Started Guide
Installing the Hardware Hardware Installation
Connecting a 10/100BASE-TX Management Cable
Use the RJ-45 10/100BASE-TX DTE port for connecting the RS 3000 to your network for in-band management
through either Telnet or SNMP. Figure 3-15 shows the location of the MDI cable management port on the front of the
RS 3x00. Figure 3-16 shows the pin positions of the 10/100BASE-TX port, and Table 3-4 shows the wiring map for
the MDI management cable:

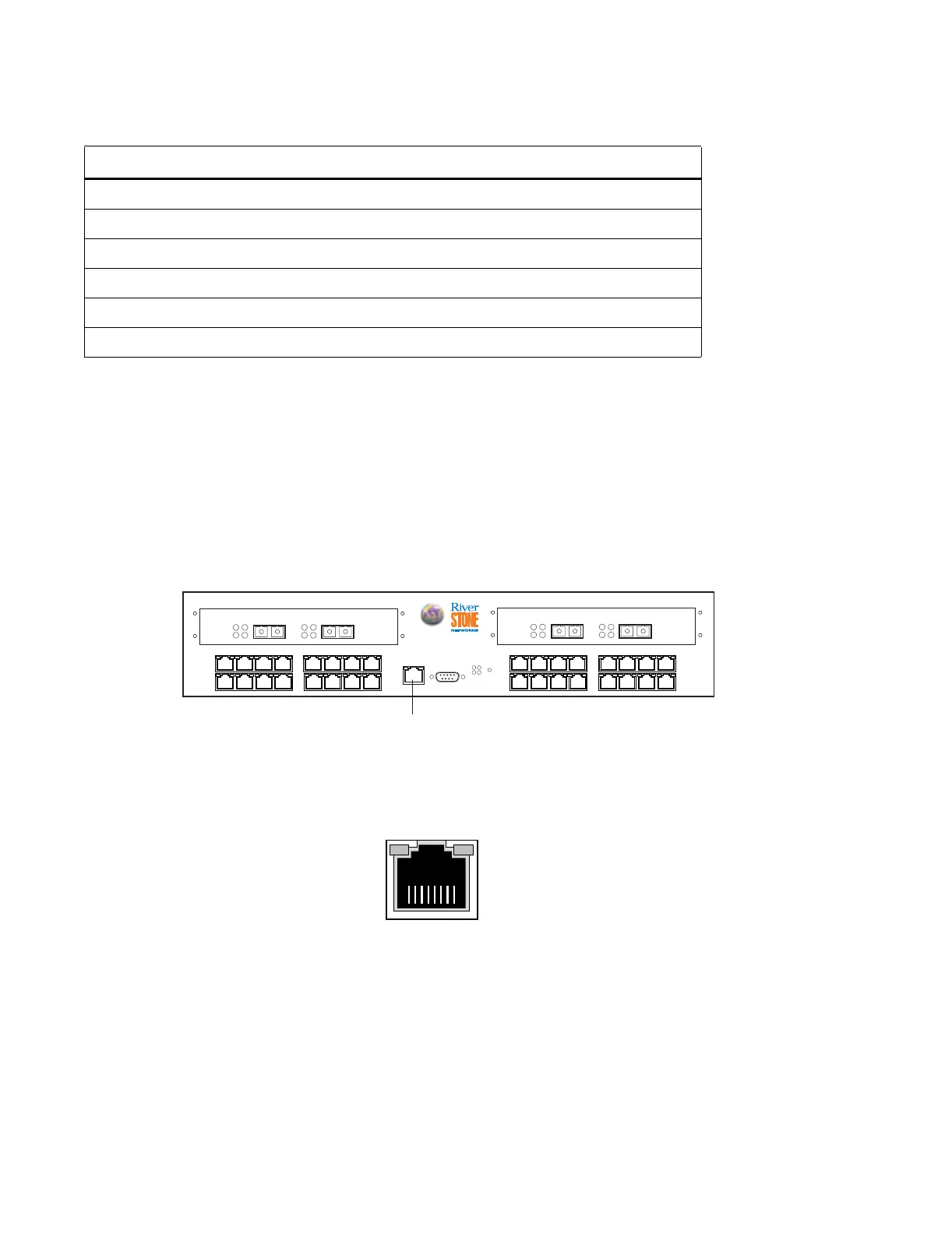

Figure 3-15 RS 3x00’s 10/100BASE-TX management port
Figure 3-16 10/100BASE-TX RJ-45 port
Unused 4 Unused
GND (ground) 5 GND (ground)
Unused 6 Unused
CTS (clear to send) 7 CTS (clear to send)
RTS (request to send) 8 RTS (request to send)
Unused 9 Unused
a. The left hand column pin assignments are for the male DB-9 connector on the RS 3000. Pin 2 (TXD or
“transmit data”) must emerge on the management console’s end of the connection as RXD (“receive data”).
Table 3-3 Wiring map for serial cable (Continued)
Signal (RS 3x00 serial port) Pin Signal (management console port)
3
4
21
1000BASE-SXG2M-GSXA1-02
Tx
Rx
Link
AN
Tx
Rx
Link
AN
RS 3000
10/100Base-TX
Management Port
21
1000BASE-SXG2M-GSXA1-02
Tx
Rx
Link
AN
Tx
Rx
Link
AN
2
1
CONSOLE
10/100 MGMT
OKERR
DIAG HBT
RST
87654321
