Riverstone Networks RS 3000/3100/3200 Switch Router Getting Started Guide 3-11
Hardware Installation Installing the Hardware

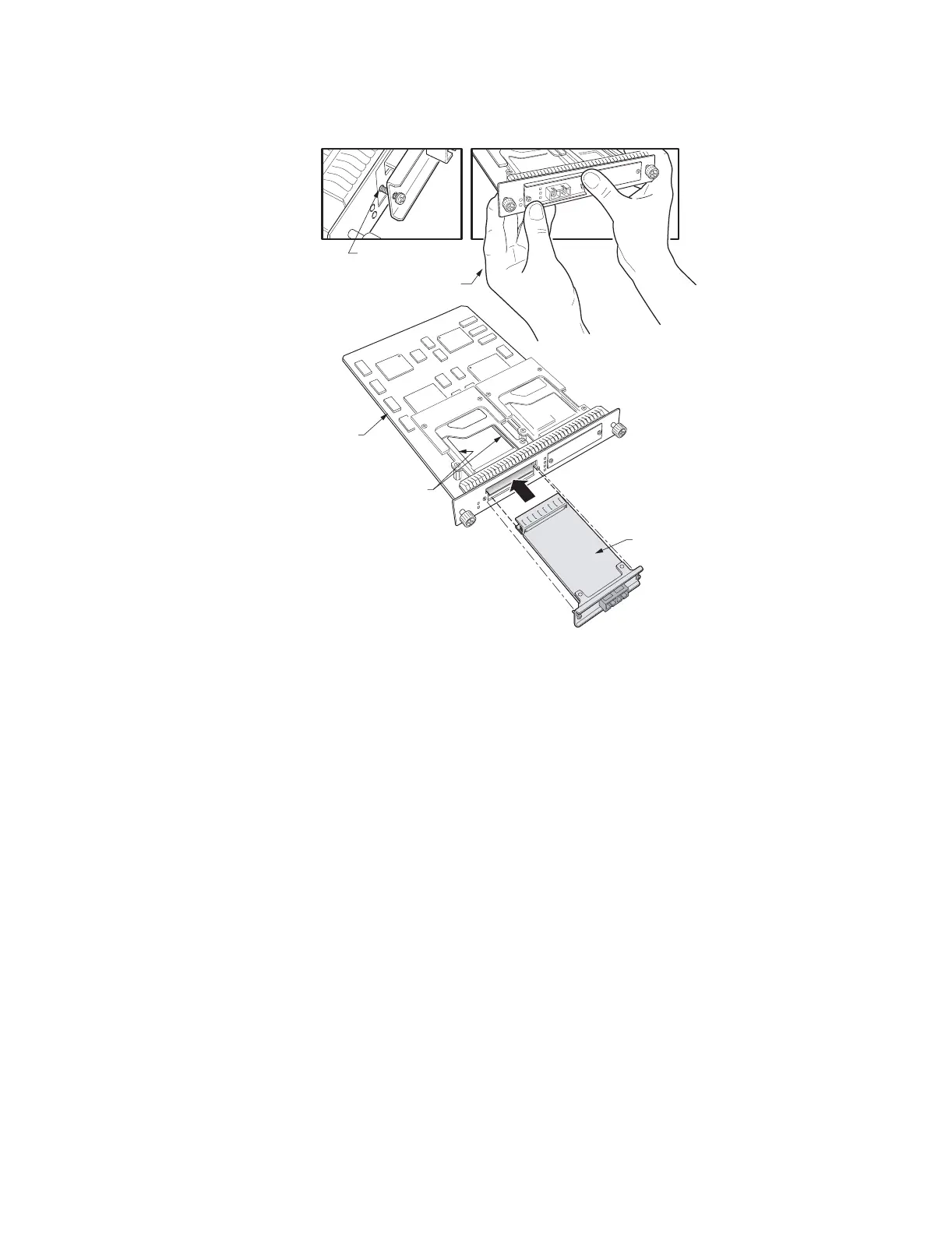

Figure 3-9 Installing an ATM PHY card
To install a PHY card into an ATM line card:
1. Use a Phillips screwdriver to loosen the two captive screws that hold the option slot cover in place.
2. Save the option slot cover.
3. Hold the PHY card by the edges and position it so that it is parallel with the slot opening.
4. Insert the PHY card through the opening in the system unit by aligning the sides of the PHY card
with the card guide.
5. Push the PHY card into the slot until the 96-pin connector is firmly seated on the motherboard.
6. Fasten the PHY card to the system unit with the two captive screws and torque to 5 in-lb (0.56 N-m).
3.3.5 Multi-rate WAN Line Card and WICs
This section describes the procedure for installing the Multi-rate WAN line-card. Additionally, if your configuration
uses either a Clear Channel T3 or E3 WIC, you must consider the setting of the WIC module’s grounding-jumpers.
ATM Board
Seat screws into
mounting holes,
then press PHY card
to fully engage connector
Phy Card
Guide Rails
