AX10 Palletizing Solution

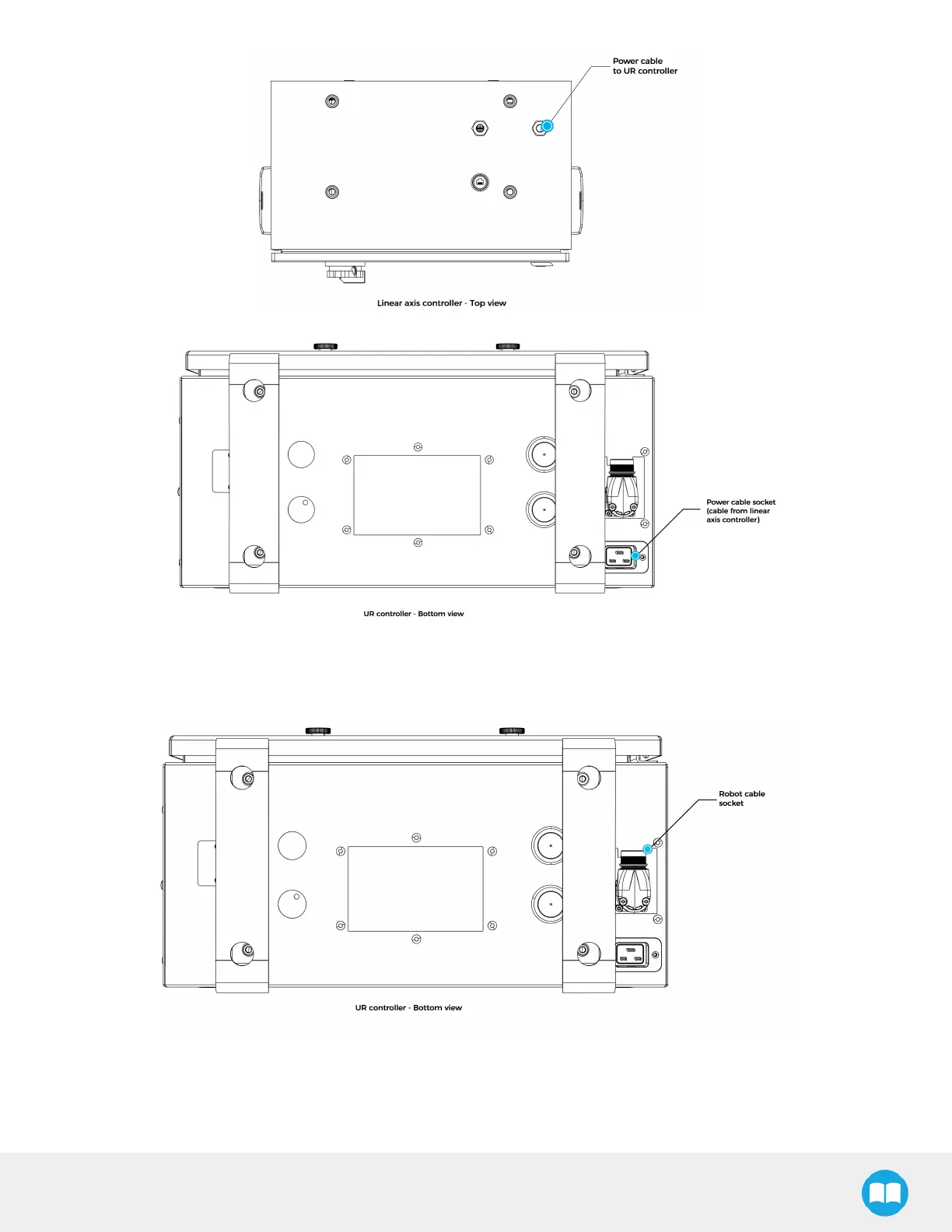

2. Push the robot's power cable into the column via the hole on the side and bring it out through hole #3.
3. Connect the robot's power cable to the URcontrol box.
4. Connect the power cable provided with the URcontrol box to the linear axis controller (the power cable provided with the
UR control box is used to power the linear axis controller).
