AX10 Palletizing Solution

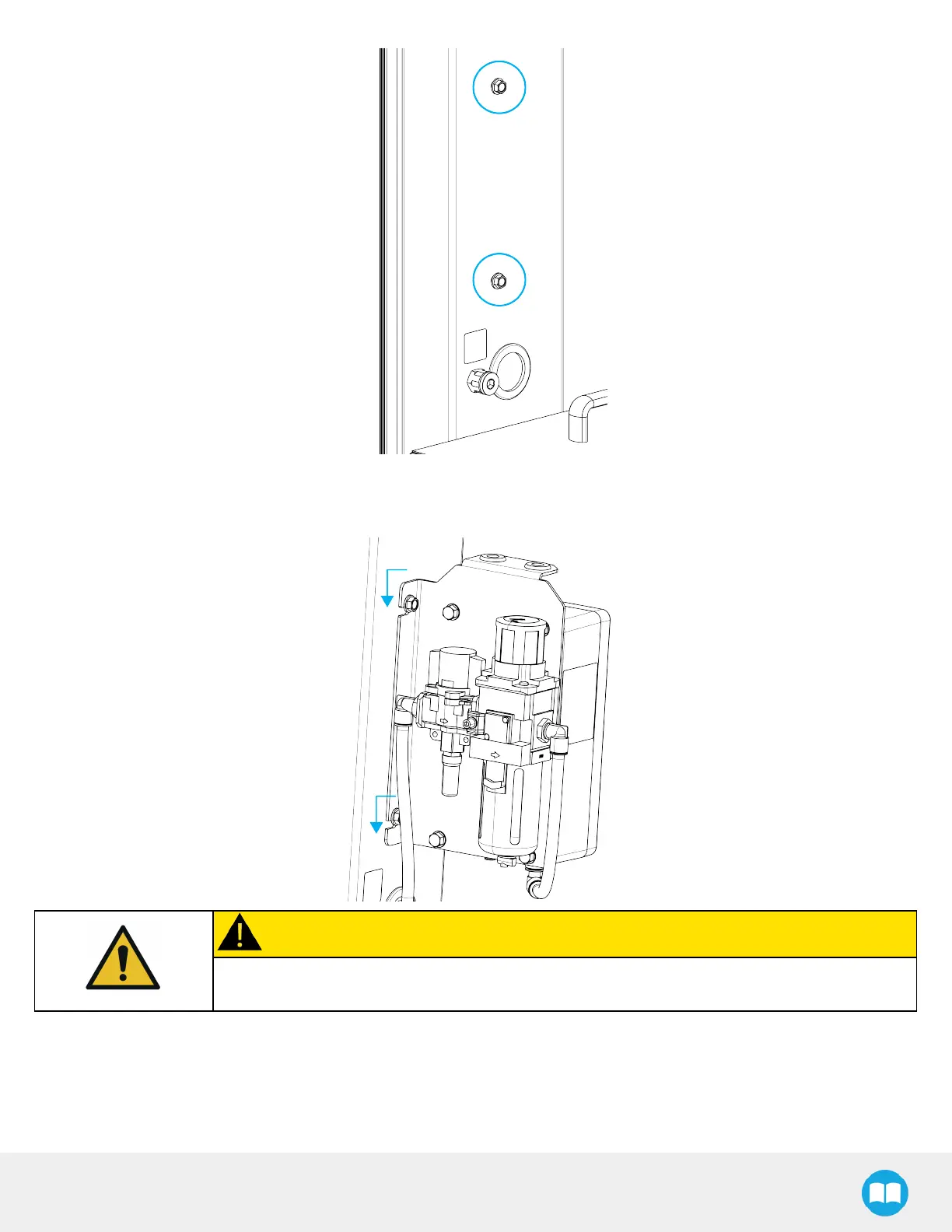

2. Slide the Vacuum Generation Unit onto the two (2) M8 x 20 hex head cap screws.
3. Tighten the screws using the provided 13 mm socket. The required torque is 5 Nm.
CAUTION
Make sure that there is no pneumatic power present on the P+ Port located on the column under
the Vacuum Generation Unit.
4. Using the provided 10 mm hex key, remove the pneumatic plug from the bulkhead fitting located on the column.
51
