AX10 Palletizing Solution
NOTICE

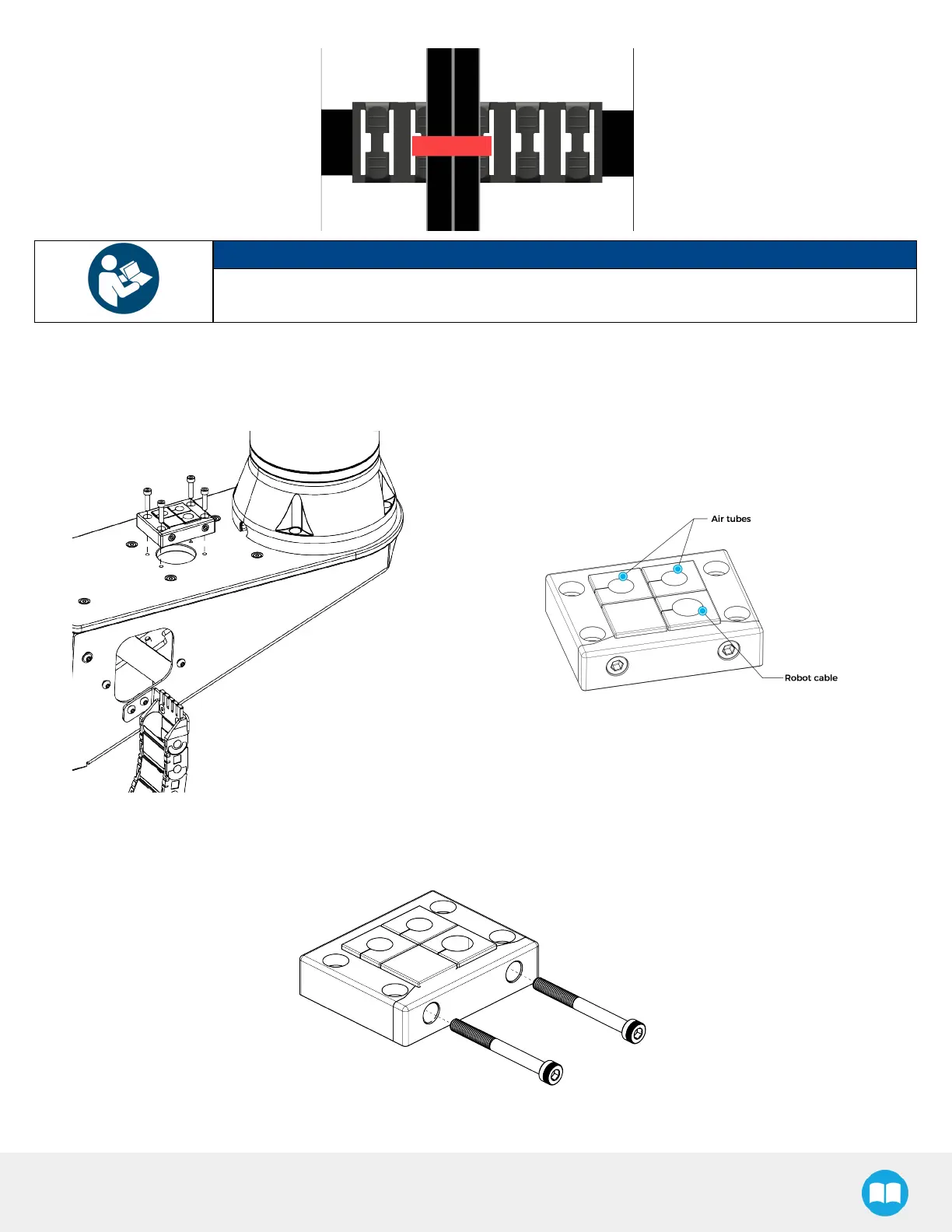

The cable tie should go through 2 hoops, and the tubing should be laying flat approximately at the
center of the plastic mount.
l
Attach the tubing to a cable clip for the next three (3) metallic marks.
l
Remove the cable entry frame from the robot base plate by unscrewing the four screws on top. Note the orientation of
the cable entry frame.
l
Open the cable entry frame by unscrewing the two screws on the side of the frame. Remove the grommets from the
frame.
55
