2.12 Power Supply

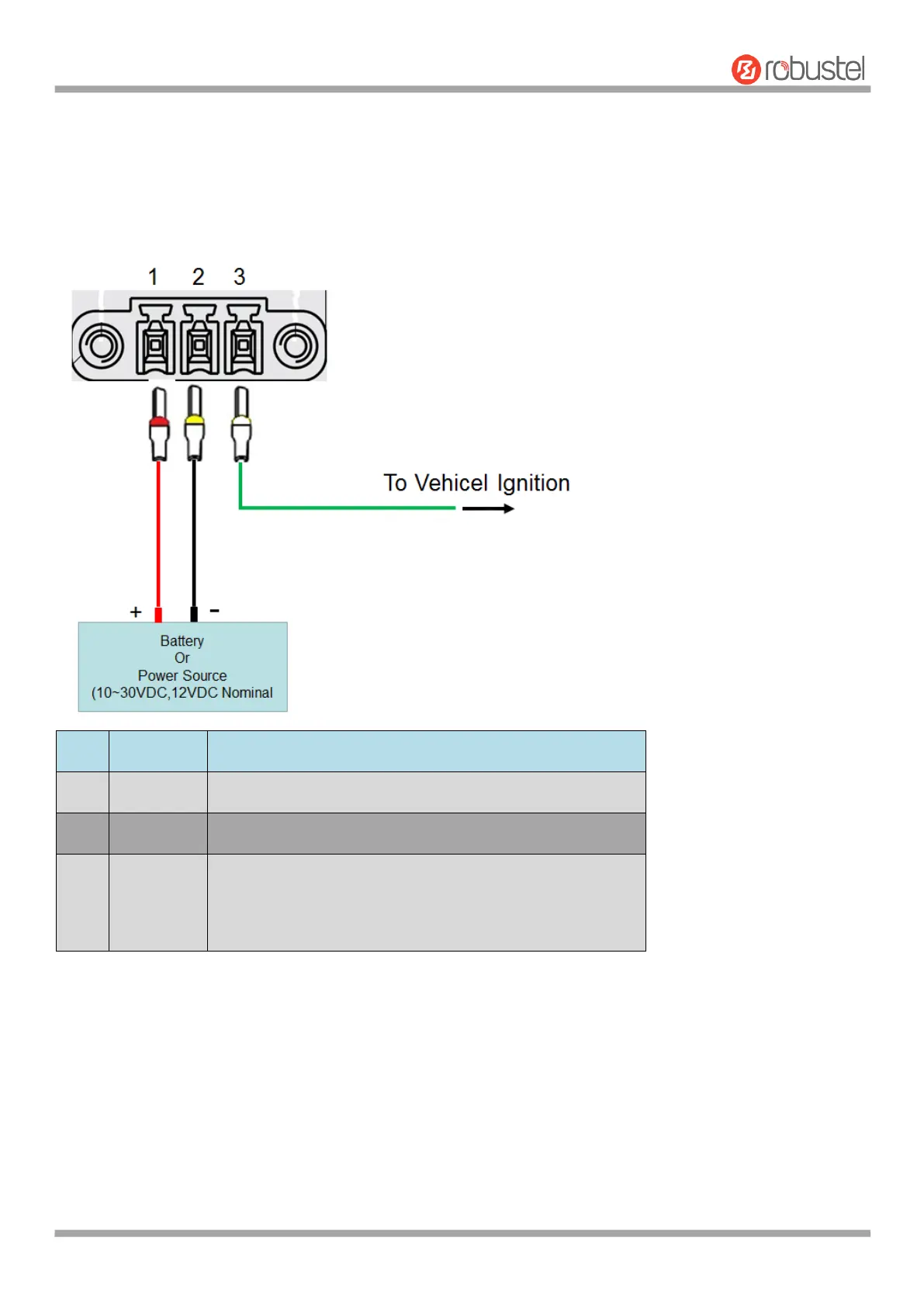

With Ignition Sensing
PIN
Description
Note
1
V+
Connect adapter or battery positive (red line)
2
V-
Connect adapter or battery negative (black)
3
ACC
Car ignition and flameout detection (green line), when the car
ignition and flameout detection function is not used, the ACC
pin is connected to the power supply and cannot be left
floating.
Note: Please connect the ACC pin of
R5020 to the VCC of power supply
without being floated, when you do
not use the car ignition and flameout
detection function.
