system_time = "Thu May 14 05:51:56 2020 (NTP not updated)"
ram_usage = "389M Free/448M Total"
admin:admin;reBoot
In this command, username is “admin”, password is “admin”, and the command is to reBoot the R5020 Router.
SMS received:
OK
admin:admin;set firewall remote_ssh_access false;set firewall remote_telnet_access false
In this command, username is “admin”, password is “admin”, and the command is to disaBle the
remote_ssh and remote_telnet access.
SMS received:
OK
OK
admin:admin; set lan network 1 interface lan0;set lan network 1 ip 172.16.24.24;set lan network 1 netmask
255.255.0.0;set lan network 1 mtu 1500
In this command, username is “admin”, password is “admin”, and the commands is to configure
the LAN parameter.
SMS received:
OK
OK
OK
OK
4.8 VPN Configuration Example
4.8.1 IPsec VPN

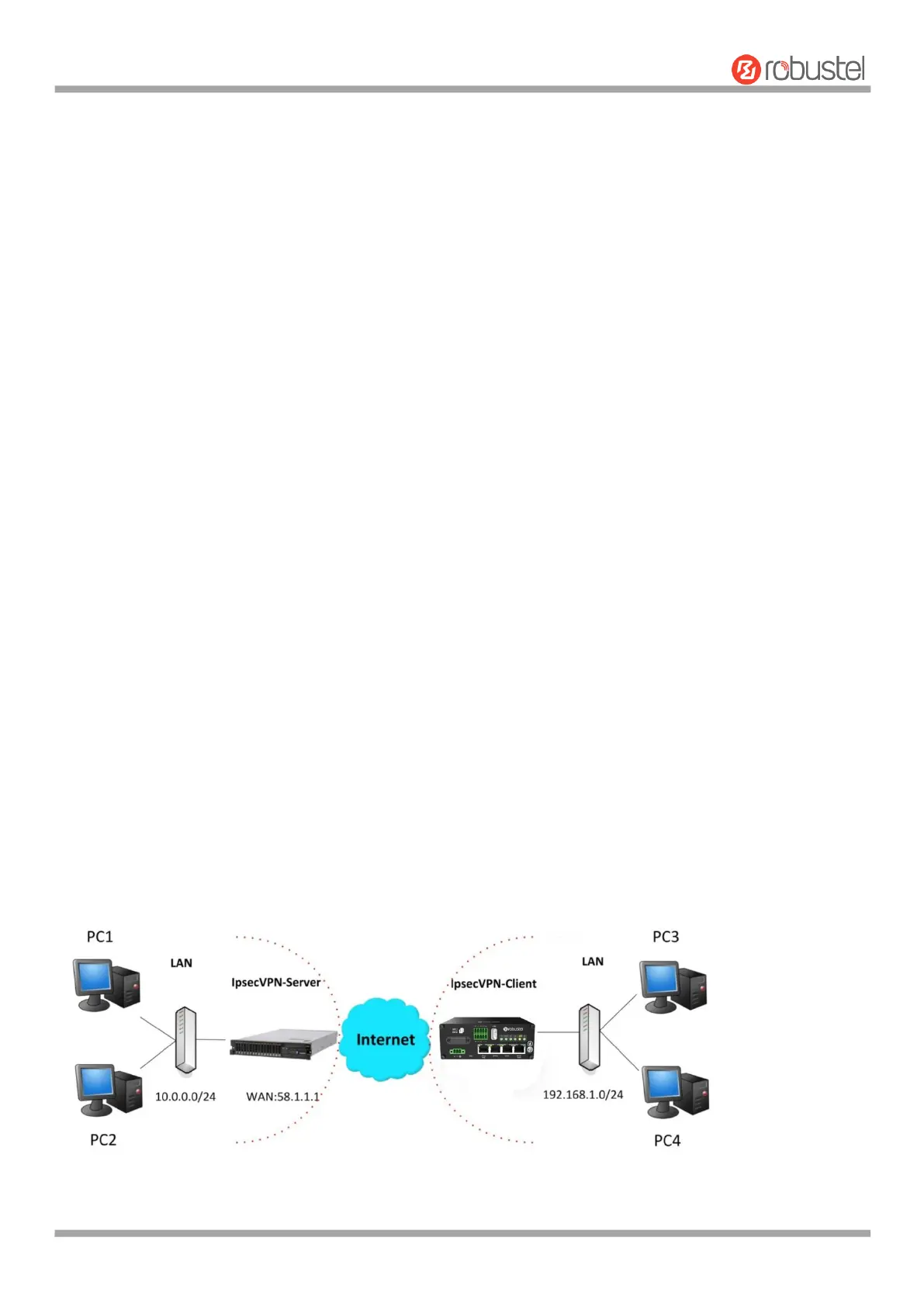

IPsec VPN example topology (the IKE and SA parameters must be configured on the server and client):
The configuration of server and client is as follows.
