Hardware Installation

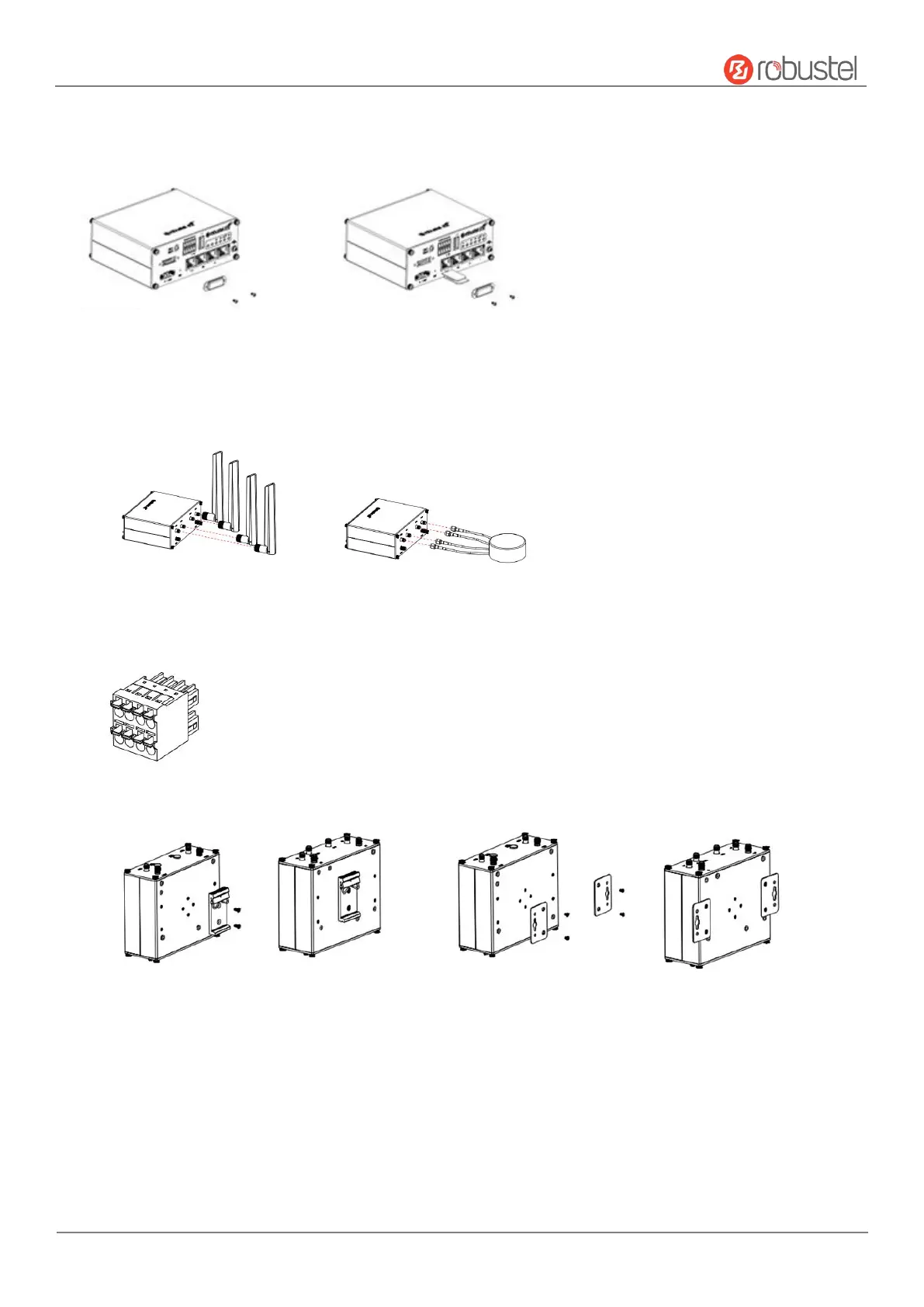

1. SIM Card Installation. Remove the SIM card cover to insert the SIM cards into the device, then screw up the
cover.
2. Antenna Installation. Rotate the antenna into the antenna connector accordingly. Here take the cellular
antenna as example. For 5G 4-IN-1 combo antenna, *MH cable is recommended to connect to ANT3, MH
cable is recommended to connect to ANT0, LMH# cable is recommended to connect to ANT1 and LMH cable
is recommended to connect to ANT2. GPS function is available when using the 4 in 1 combo antenna.
3. Terminal Block Installation. Insert the 2x5PIN terminal blocks into the interfaces connector, then can connect
the devices or sensors to the gateway via corresponding interfaces.
4. Mounting Kit installation.
DIN Rail Installation Wall-mounted Installation
