Robustel R5020 User Guide
RT_UG_R5020_v.1.0.2 Mar. 17, 2023 80/167

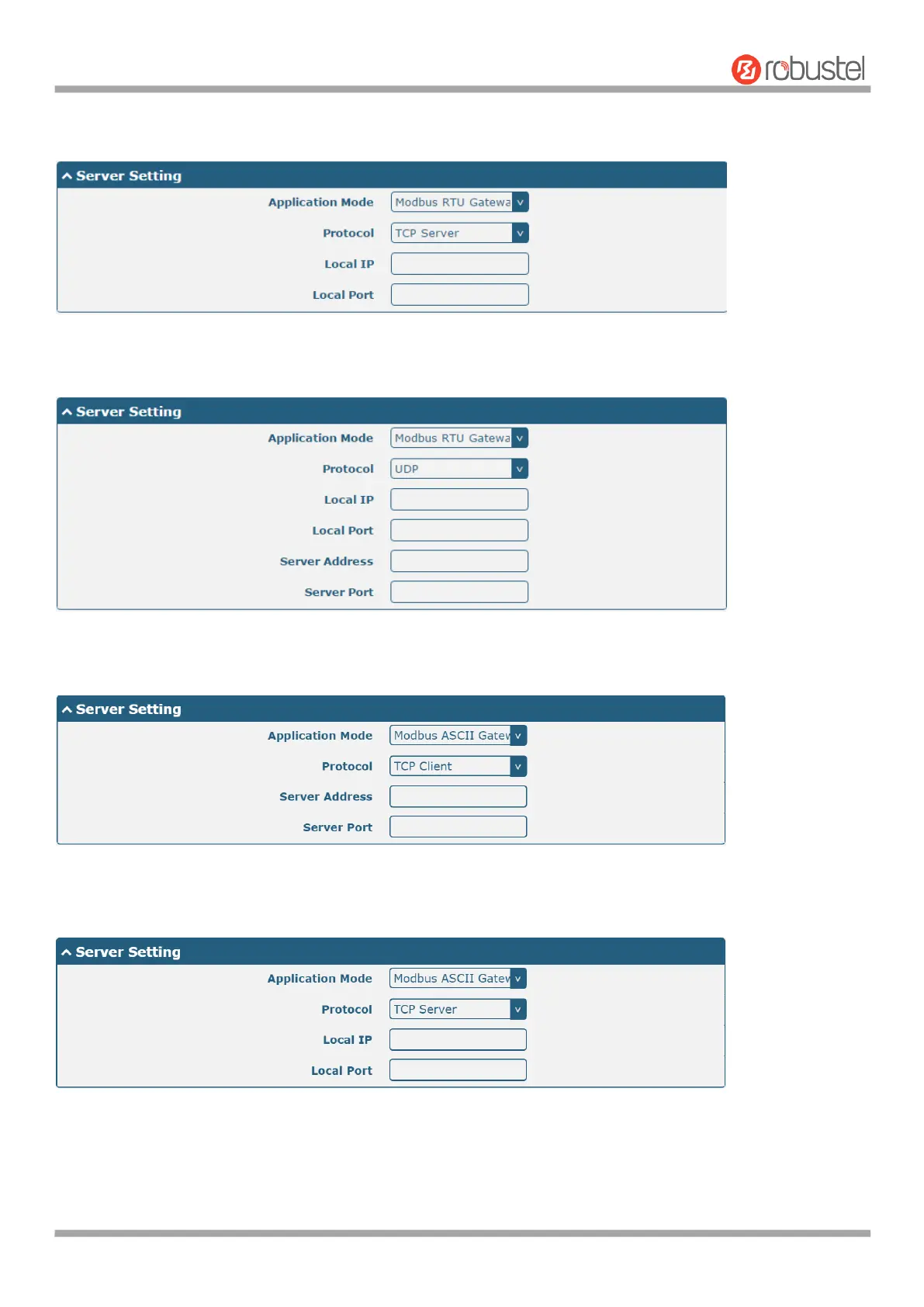

The window is displayed as below when choosing “Modbus RTU Router” as the application mode and “TCP Server”
as the protocol.
The window is displayed as below when choosing “Modbus RTU Router” as the application mode and “UDP” as the
protocol.
The window is displayed as below when choosing “Modbus ASCII Router” as the application mode and “TCP Client”
as the protocol.
The window is displayed as below when choosing “Modbus ASCII Router” as the application mode and “TCP Server”
as the protocol.
