3 DEVICE DESCRIPTION
In this chapter is given a general description of the device and all its parts.
3.1 Introduction
Medical device MH01 has inside like laser source a flash pumped Ho:YAG laser. Its wavelength
is 2100nm, then in the infrared part of the EM spectrum. The maximum power of the device is
30W. For the release of laser radiation to the patient the medical device MH01 uses a quartz
optical fiber with a diameter up to 1000•m (see Chapter 11 "Accessories") to be used for
surgical applications mentioned in Chapter 6, "Clinical Applications". The laser can operate in a
pulsed mode with a max frequency of 25Hz. In the latter case, the release is by pulses that are
repeated over time with an adjustable frequency
1
(see Chapter 5 "Operating Instructions").
Medical device MH01 is used in different clinical application (see Chapter 6 'Clinical
Applications').
3.2 General description of the device

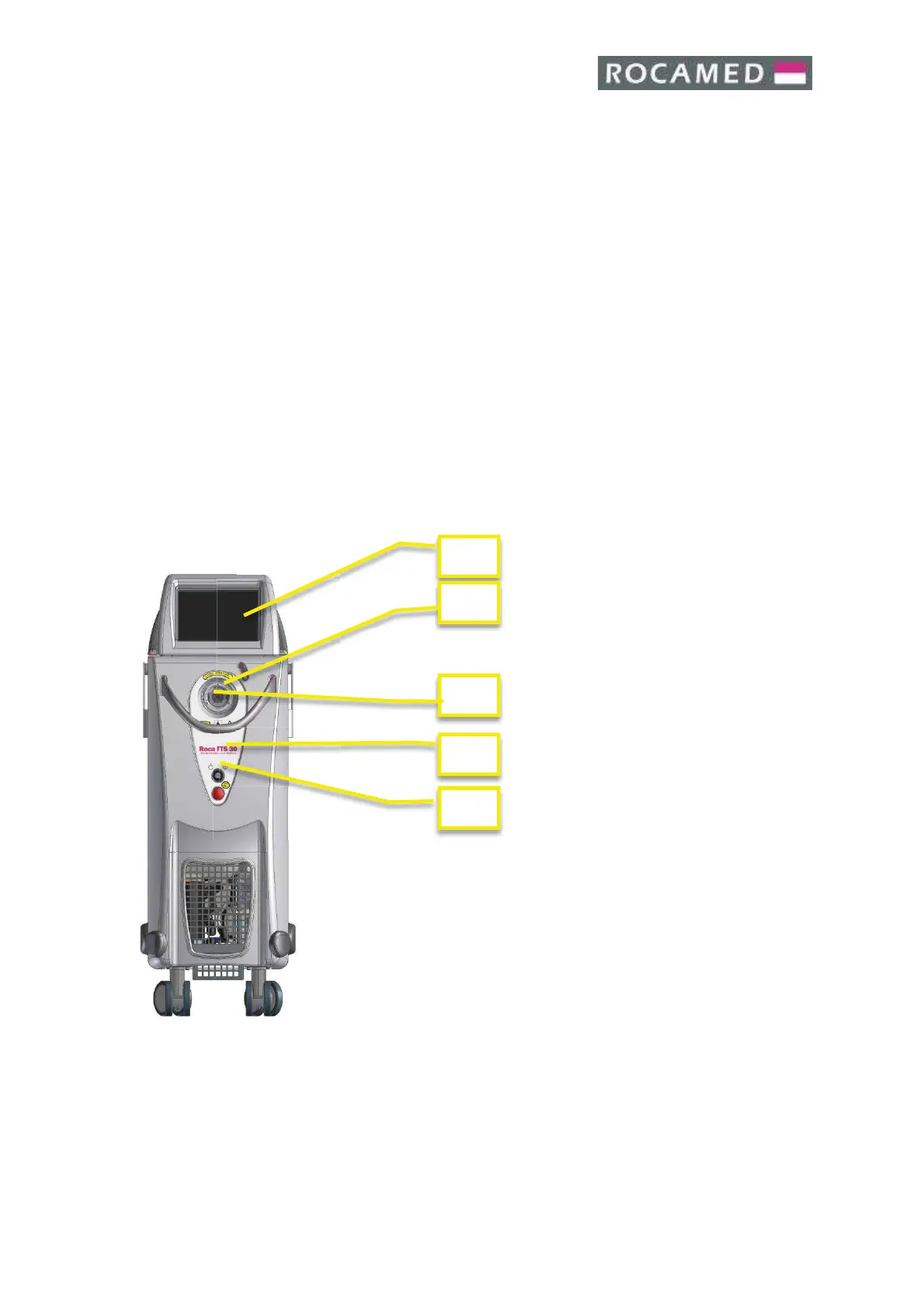

3.2.1 Device frontal view
1. Touch screen Display (control panel)
2. Optical fiber connector (WARNING: this is a laser aperture)
3. RFID Antenna
4. Key switch
5. Emergency red push button
5
1
3
3
2
4
