ROCAMED MH01 - Operating Instruction; Main Display Screen

31
NOTE-MH01-EN rev05
5.2 Operating instruction
5.2.1 Main display screen

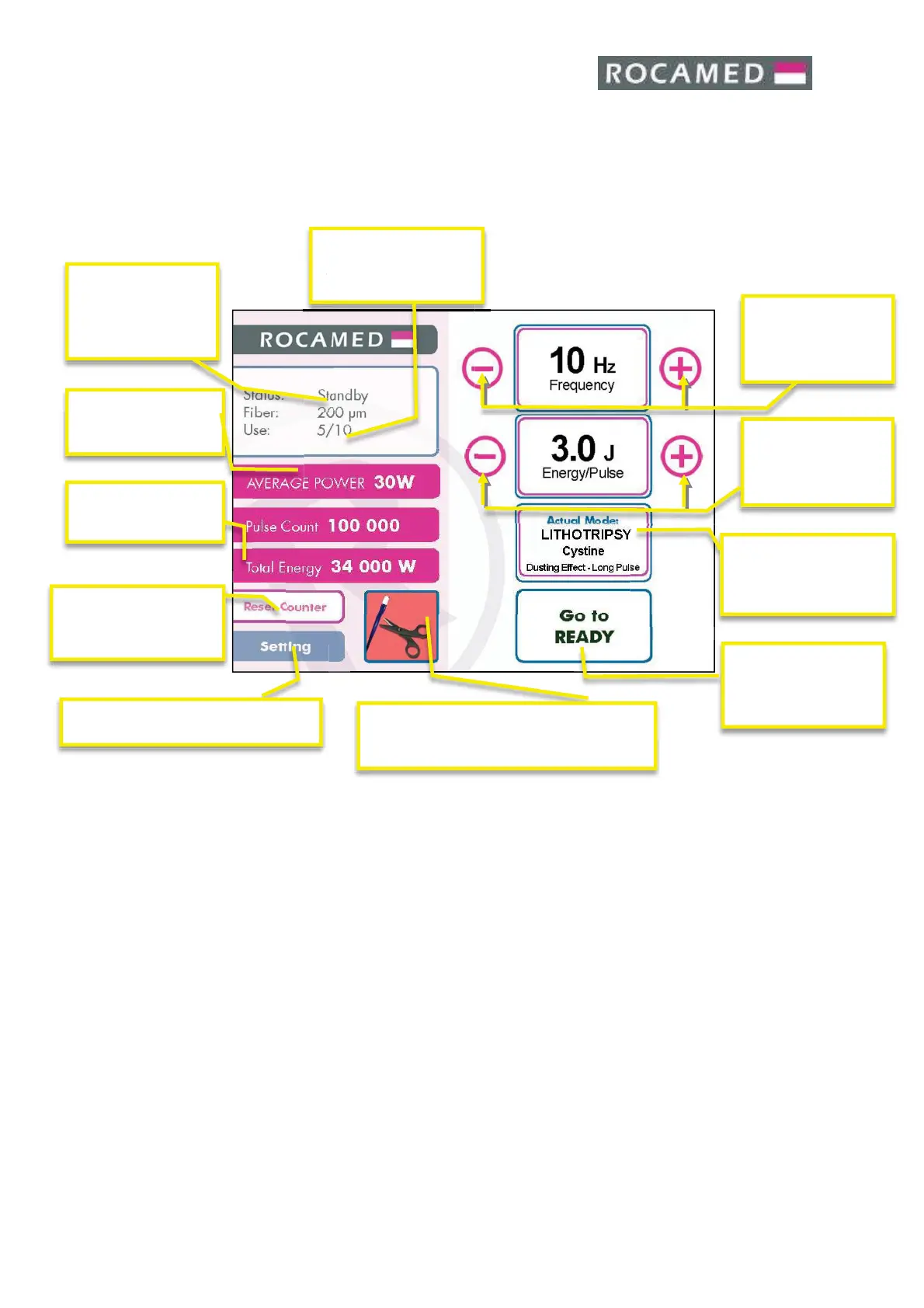

The section details the Main Display Screen functions. Refer to Figure below.
Touch here to see
the optical fiber
info
Touch here to
modify the
Energy output
Touch here to enter
in the Menu
th
The state of the
system is
displayed
Touch this area to
change the laser
treatment MODE
The output power
is displayed
Energy/pulse
counter
Touch here to
enter Ready Mode
Touch here to reset
the energy/pulse
counter
Touch here to
modify the
F
requency
output
This icon appears to recommend the
refurbishment of the fiber’s tip
