ROCAMED MH01 - Device Back View

18
NOTE-MH01-EN rev05

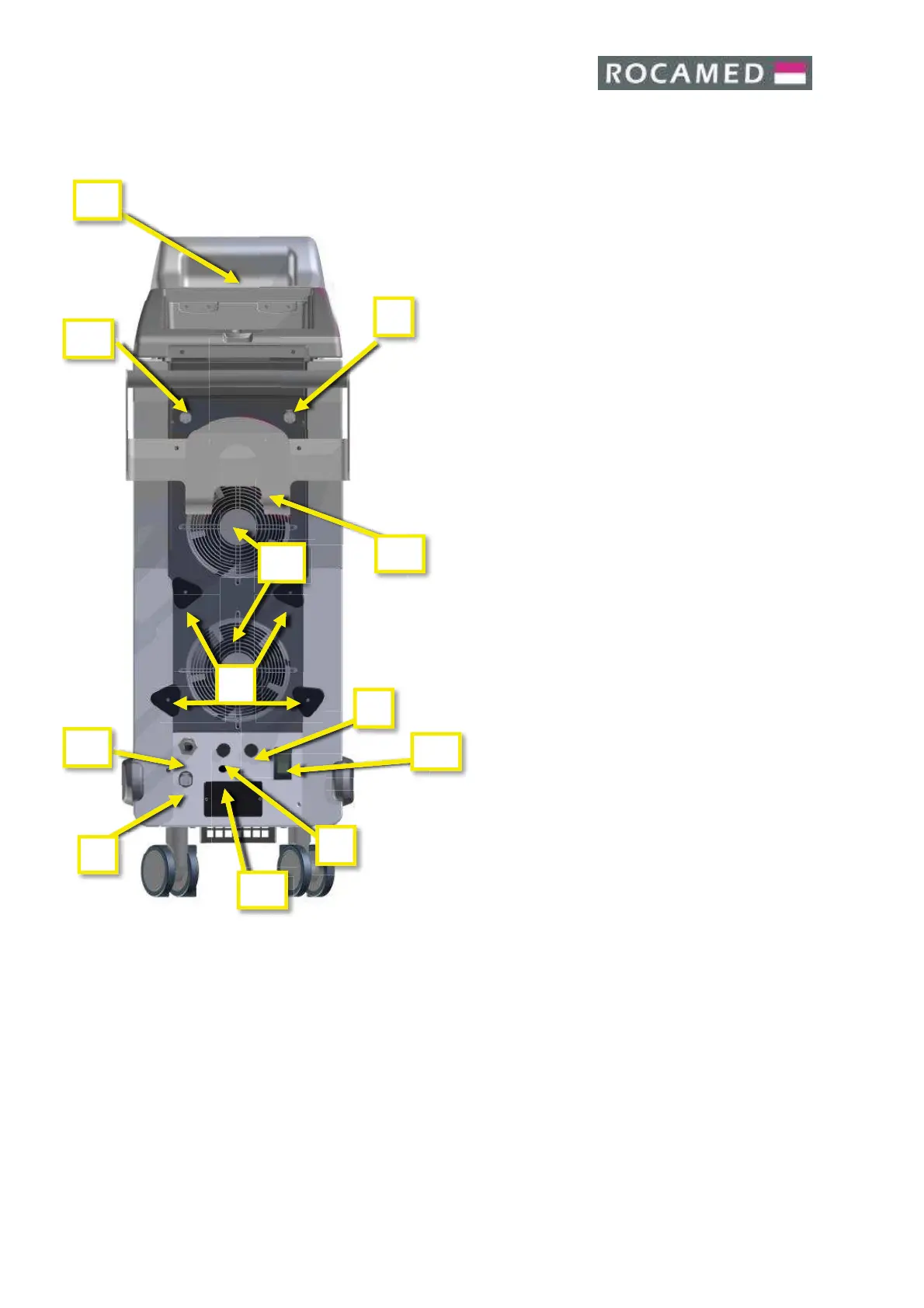

3.2.2 Device Back view
1. Hydraulic circuit loading connector
2. Fiber Box support
3. Fans Area
4. Cord storage
5. Interlock connector
6. Power/mains switch
7. Footswitch connector
8. ROCAMED ENDOFLO®II/ROCAFLOW
Connection
9. Hydraulic circuit drain connector
10. Power supply cord
11. Bleeding
12. Blast Shield Access
