Cutting strategy for groove
The cut is carried out in several infeeds, as usual adjustable in the other modes. The roughing
contour is roughly traversed line by line and then the nal contour is turned in one pass in the
last pass. The ELS calculates the correct position of the sheath for each pass.
ATTENTION: The calculation can take some time with large contours, this is noticeable at paus-
es which the control inserts before the infeed.
The cut is made gently in several passes, the number and depth can be easily selected before
the cut.
Principle of cutting:
• The rough contour is cut in n steps. The cutter will dive into the material and move to the

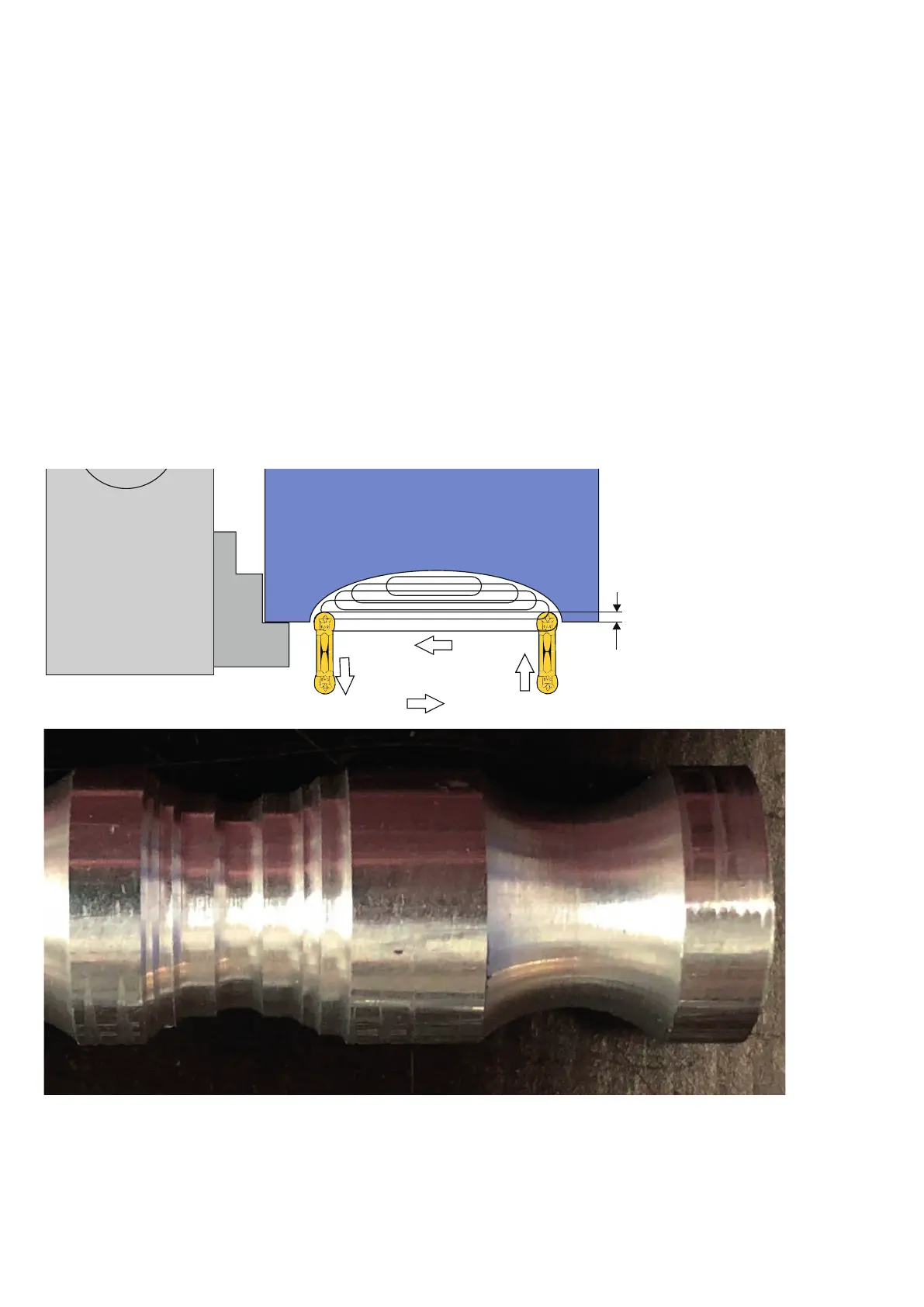

left. The image below shows how this is done.
• After roughing it will cut the nish cut in one take to cut the end contour.
Links: Roughing nished
Rechts: Finished contour
X Ap Rough
92
