Rohde & Schwarz CMU200 Service Manual

R&S PB Installation Instructions CMU-B12 OCXO REF.OSC. Bi/1CMK 22.02.99 1100.5180.00 01.00
page 3 of 5
2 Installation of Option
2.1 Insert OCXO REFERENCE OSC. into unit from the side until it plugs into connector X212 on motherboard 1.
2.2 Fit OCXO REFERENCE OSC. using the three supplied screw and washer assemblies (VS 0071.5040.00,
see Fig. 2).
LABEL „OPTION INCL.“
Screw and nut assemblies
0071.5040.00
OCXO
REFERENCE OSC.

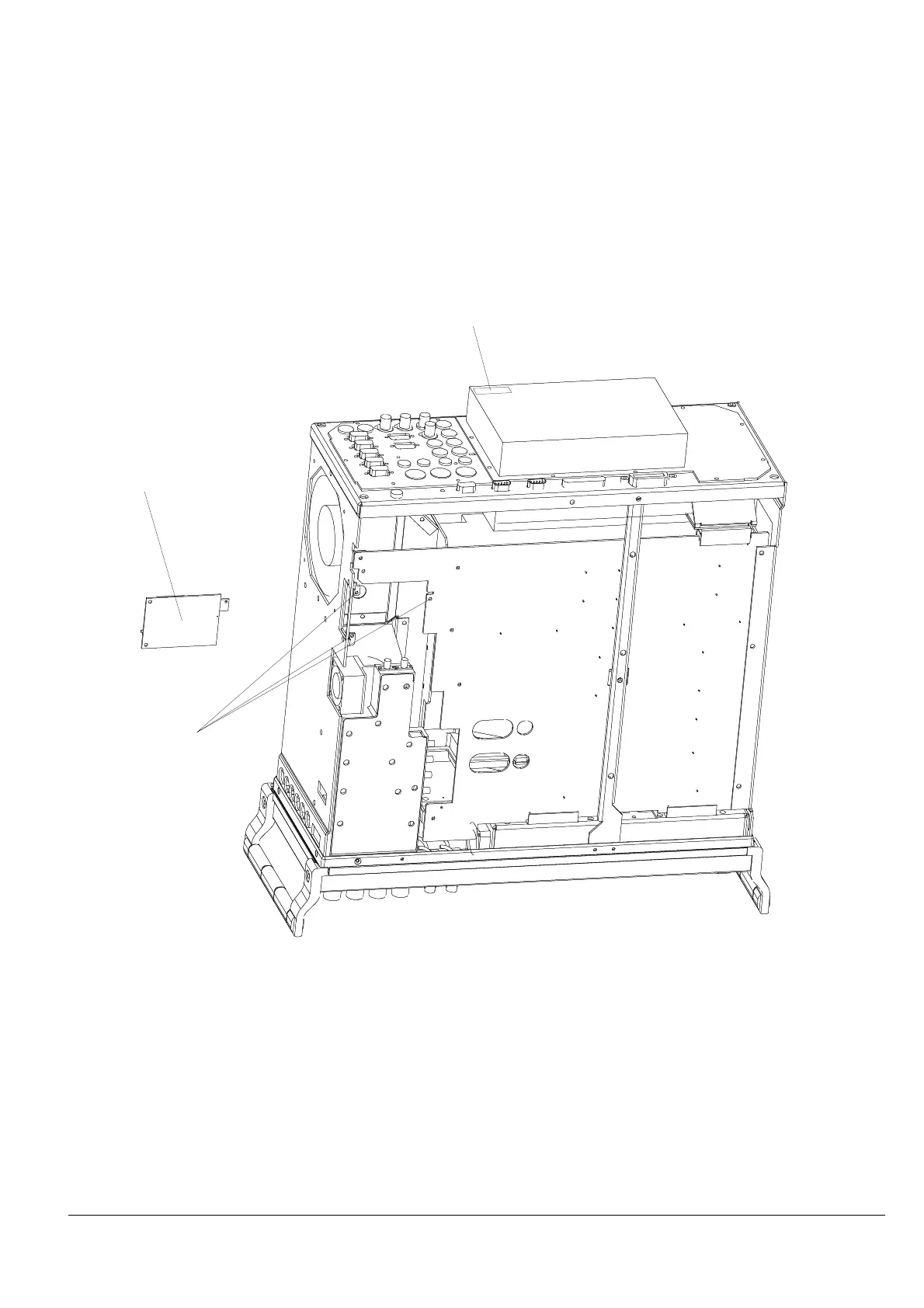

Fig. 1
