R&S PB Installation Instruction CMU-B81 CDMA.SIGN.UNITBi/1CMK 21.12.00 1100.6587.00 03.00
page 4 of 6
2 Installation of Option
Caution: Prior to installation, check whether the connectors of the module fit into the 5th or 8th slot of the
motherboard of as seen from the front panel. Depending on the result of this check, proceed according to
items 2.1 and 2.2.
2.1 Remove the cover of the ventilation opening in the partition of either the 5
th
or 8
th
slot as seen from the front panel
(Fig. 3).
2.2 Insert CMU-B81 either into the 5
th
or 8
th
slot as seen from the front panel (Fig. 3).

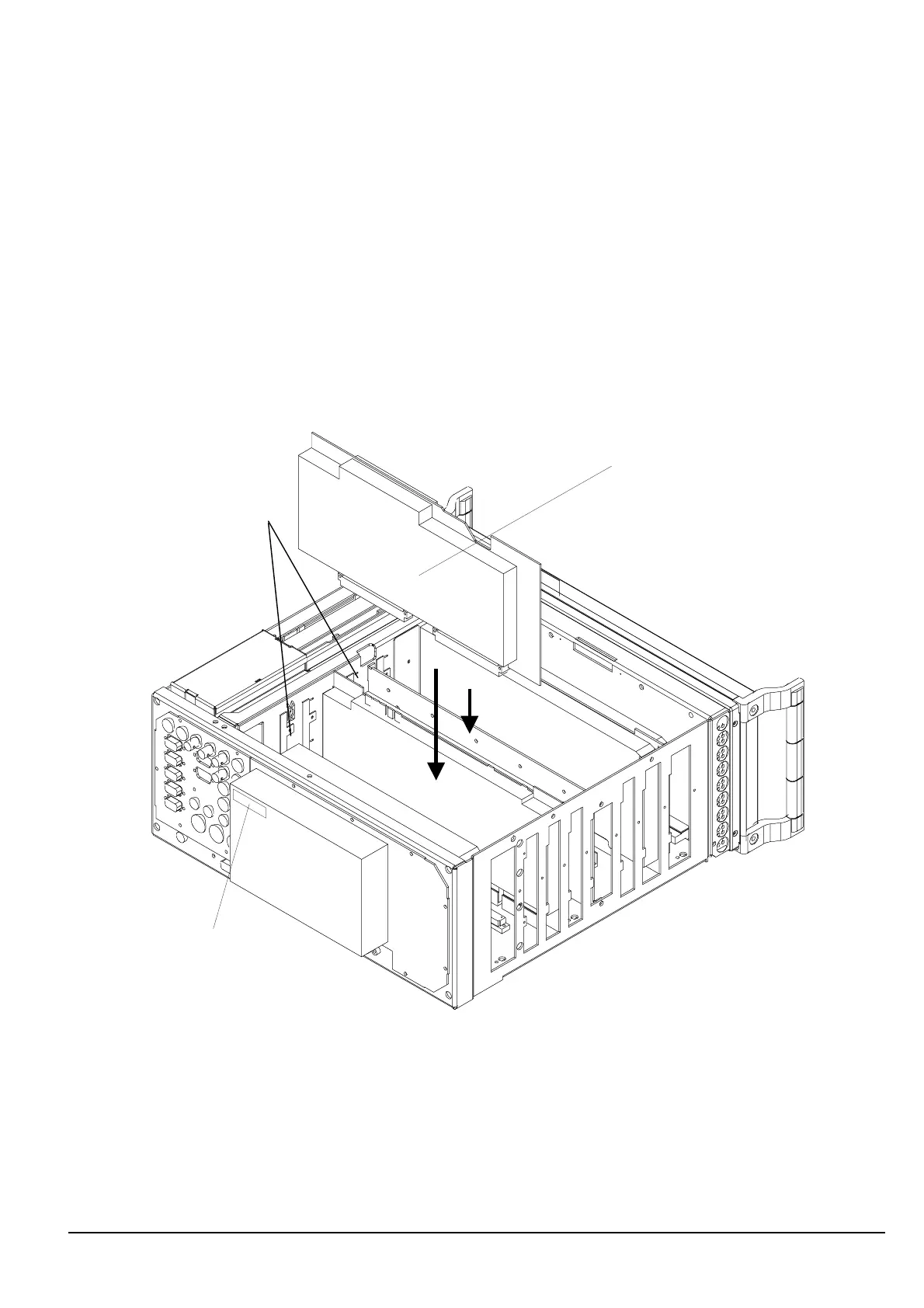

CMU-B81
COVER removed
OPTION INCL. label
Fig. 3
To Next Page
