Rohde & Schwarz CMU200 Service Manual

R&S PB Installation Instruction CMU-B52 SPEECH_CODEC Bi/1CMK 18.11.99 1100.5474.00 02.00
page 4 of 7
2 Installation of Option
½ Remove module CMU-B21 from slot seven as viewed from the front and undo screws on shielding
enclosure (Fig. 3)
½ Plug option CMU-B52 into slots on CMU-B21 A420 and A470 and affix label (Fig. 4)

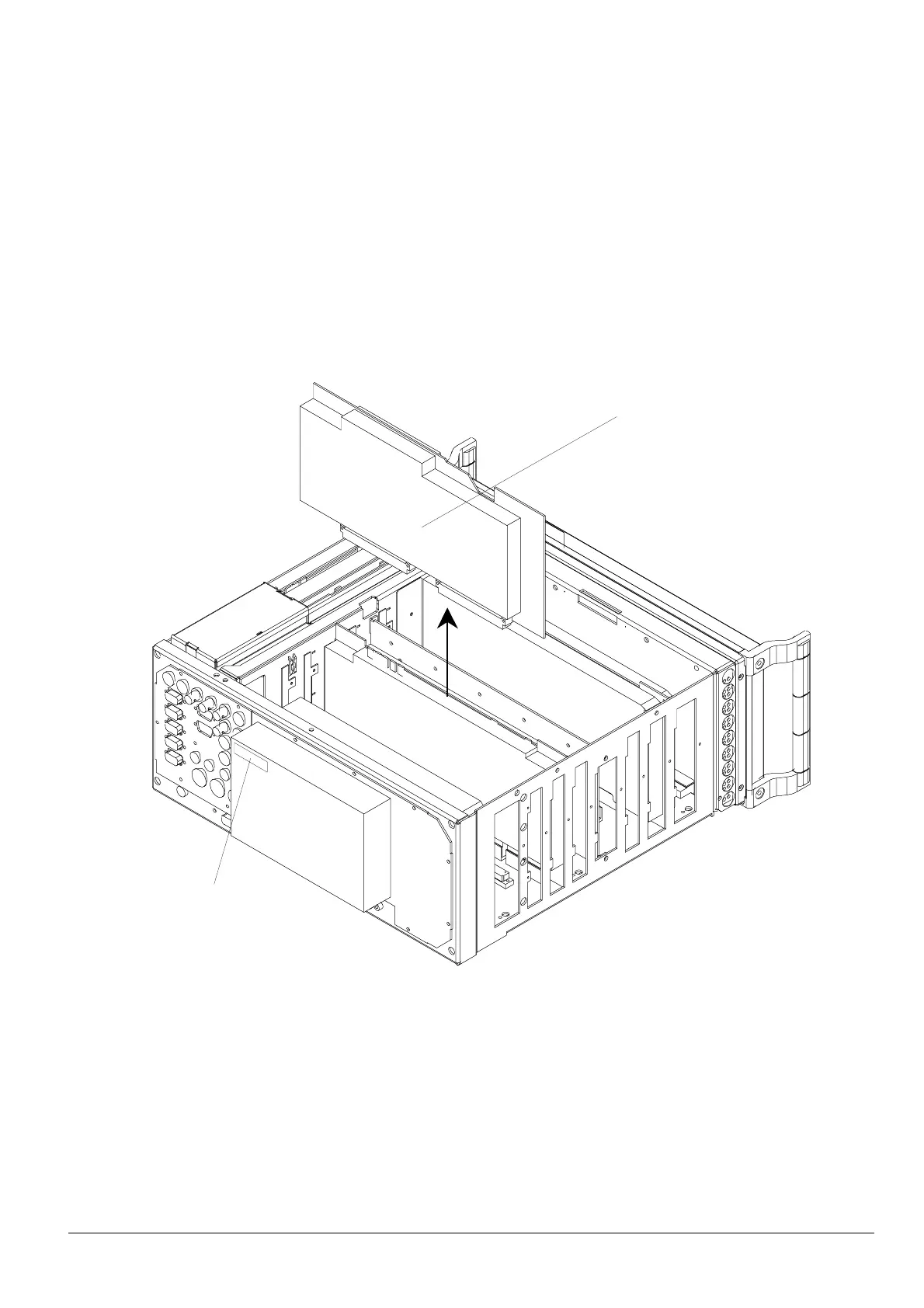

Fig. 3
CMU-B21
OPTION INCL. label
