Rohde & Schwarz CMU200 Service Manual

R&S PB Installation Instruction CMU-B21 UNIV.SIGN.UNITBi/1CMK 18.11.99 1100.5280.00 02.00
page 4 of 6
2 Installation of Option
2.1 Remove cover on the vent in the intermediate panel of the 7
th
slot as seen from the front (Fig. 3).
2.2 Insert CMU-B21 into 7
th
slot as seen from the front.
CMU-B21
COVER removed
OPTION INCL. label

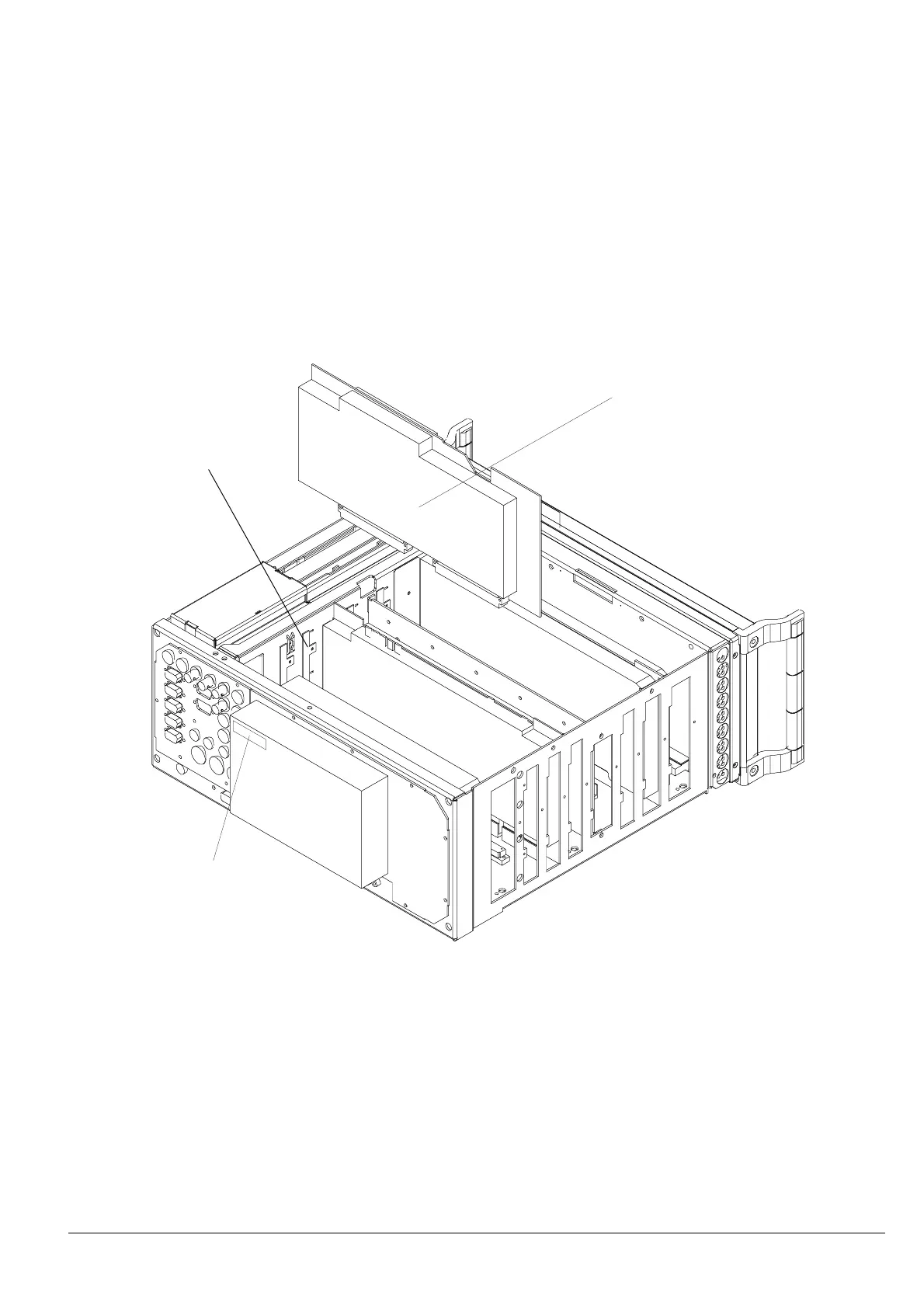

Fig. 3
