Rohde & Schwarz CMU200 - Preparation

R&S PB Installation Instruction CMU-B71 ABIS INTERFACE UNIT Bt/1CMK 07.02.01 1100.6493.00 01.00
page 2 of 6
1 Preparation
1.1 Switch off unit and unplug power cable.
1.2 Screw off cabinet feet (four cross-recessed screws, size 2).

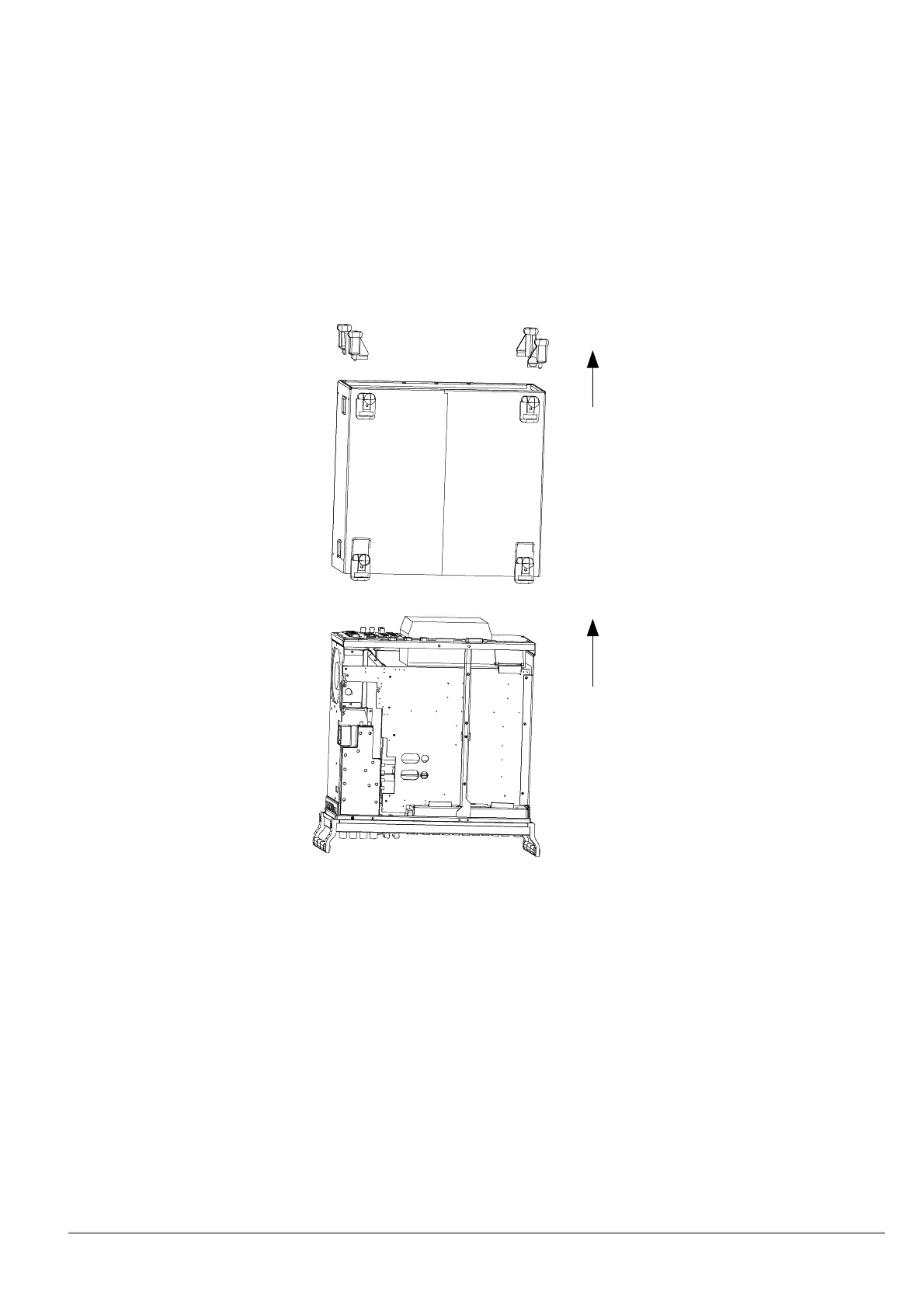

1.3 Place unit on handles at the front, push casing upwards and remove (Fig. 1).
Fig. 1
